Speak Recognition, Voice Recognition Module V3.1 new voice recognition for Arduion Compatible With Speak Recognition

Overview

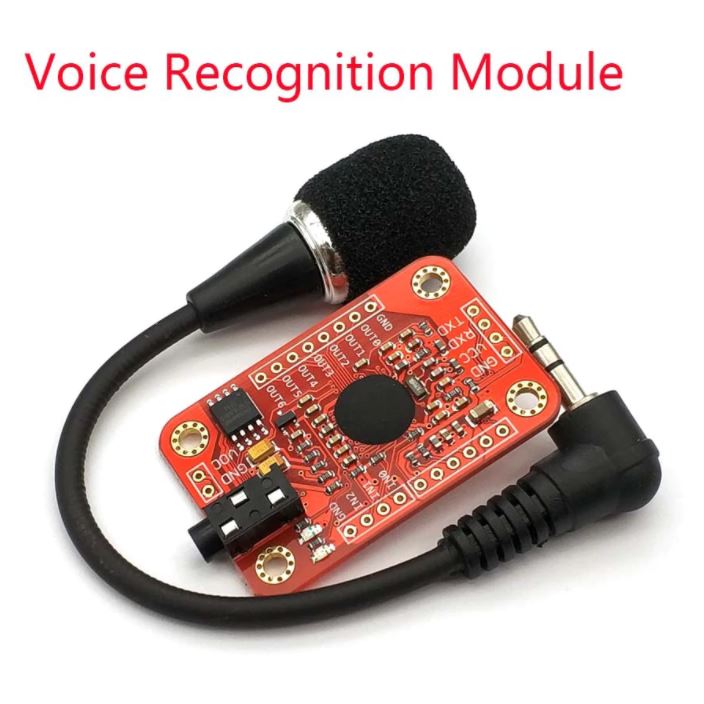

ELECHOUSE Voice Recognition Module is a compact and easy-control speaking recognition board.

This product is a speaker-dependent voice recognition module. It supports up to 80 voice commands in all. Max 7 voice commands could work at the same time. Any sound could be trained as command. Users need to train the module first before let it recognizing any voice command.

This board has 2 controlling ways: Serial Port (full function), General Input Pins (part of function). General Output Pins on the board could generate several kinds of waves while corresponding voice command was recognized.

What's new?

We already have Voice Recognition module V2. It supports 15 commands in all and only 5 commands at the same time.

On V2, voice commands are separated into 3 groups while you training it. And only one group (5 commands) could to be imported into Recognizer. It means only 5 voice commands are effective at the same time.

On V3, voice commands are stored in one large group like a library. Any 7 voice commands in the library could be imported into recognizer. It means 7 commands are effective at the same time.

Parameter

• Voltage: 4.5-5.5V
• Current: <40mA
• Digital Interface: 5V TTL level for UART interface and GPIO
• Analog Interface: 3.5mm mono-channel microphone connector + microphone pin interface
• Size: 31mm x 50mm
• Recognition accuracy: 99% (under ideal environment)

Feature

• Support maximum 80 voice commands, with each voice 1500ms (one or two words speaking)
• Maximum 7 voice commands effective at same time
• Arduino library is supplied
• Easy Control: UART/GPIO
• User-control General Pin Output

Document

• Manual
• Library for Arduino
• Video Instruction
  1. How to play VR3 with Arduino
  2. How to test VR3 Protocol on PC

Product List

1. Voice Recognition Module x1
2. Microphone x1
