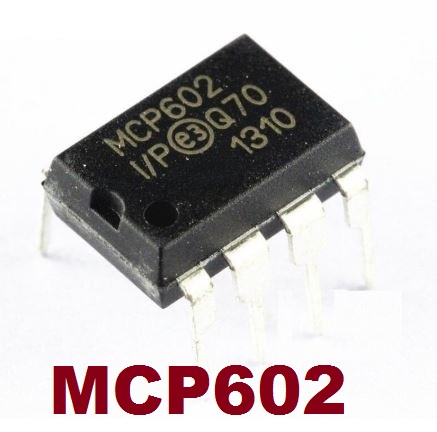

The MCP602 dual operational amplifier (op amp) has a gain bandwidth product of 2.8 MHz with low typical operating current of 230 uA and an offset voltage that is less than 2 mV. The MCP602 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP602 operates with a single supply voltage that can be as low as 2.7V, while drawing less than 325 of quiescent current per amplifier. The MCP602 is available in standard 8-lead PDIP, SOIC and TSSOP packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications.

• Low Input Bias Current:1 pA (typ.)
• Gain-Bandwidth Product: 2.8 MHz
• Low Quiescent Current: 230 µA/amplifier (typical)
• Low Input Offset Voltage: 2 mV (max.)
• Unity Gain Stable
• Rail to Rail Output
• Extended Temperature Range
