KY040 rotary encoder แกนยาว 16mm 360 degree development board rotary encoder module compatible with potentiometer

รายการสินค้าที่เกี่ยวข้อง  นิยมใช้งานร่วมกัน

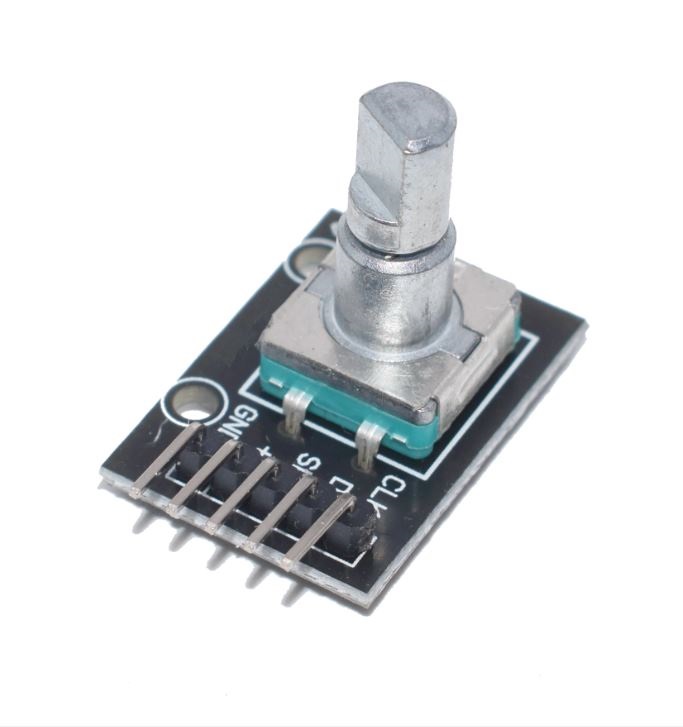

Rotary encoder module KY-040

Working voltage: 5V

Number of pulses per revolution: 20

The rotary encoder can count the number of output pulses during rotation in the forward and reverse directions by rotation. Unlike the potentiometer, the rotation count is unlimited. With the buttons on the rotary encoder, it can be reset to the initial state, that is, counting from 0.

working principle:

An incremental encoder is a rotary sensor that converts rotational displacement into a series of digital pulse signals. These pulses are used to control angular displacement. The conversion of angular displacement in the Eltra encoder uses the photoelectric scanning principle. The reading system is based on the rotation of a radial index disc (code disc) consisting of alternating light-transmitting windows and opaque windows, while being irradiated vertically by an infrared light source, the light projects the image of the code disc onto the surface of the receiver . The receiver is covered with a layer of diffraction grating, which has the same window width as the code wheel. The receiver's job is to feel the changes produced by the rotation of the disc, and then convert the light changes into corresponding electrical changes. Then the low-level signal is raised to a higher level, and a square pulse without any interference is generated, which must be handled by an electronic circuit. The reading system usually uses a differential method, that is, comparing two different signals with the same waveform but a phase difference of 180° in order to improve the quality and stability of the output signal. The reading is formed on the basis of the difference between the two signals, thereby eliminating interference.
