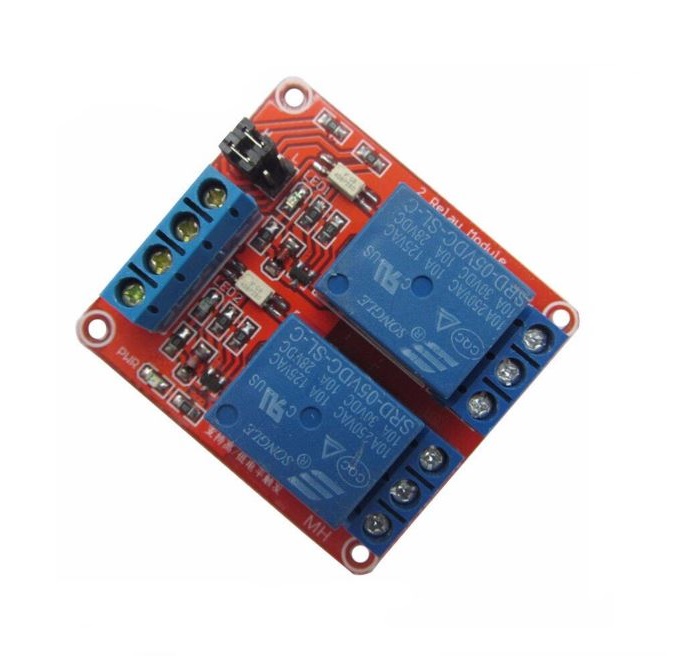

Relay 5V 2Channel Relay Module Board Shield for Arduino with Optocoupler Support High and Low Level Trigger รีเลย์

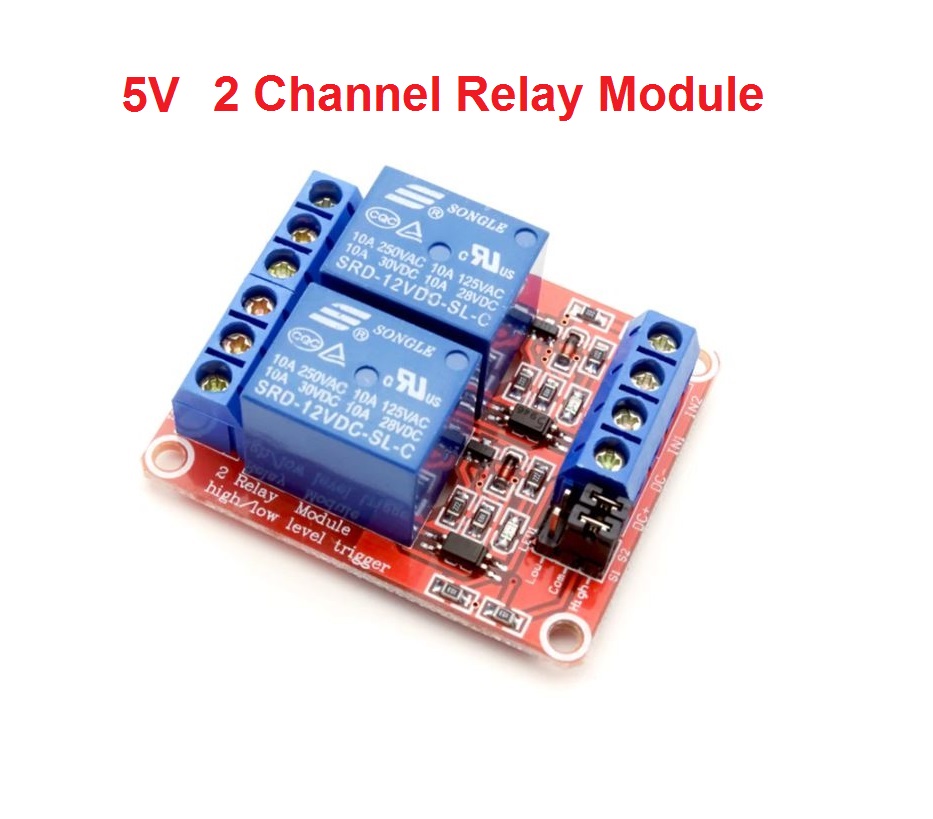

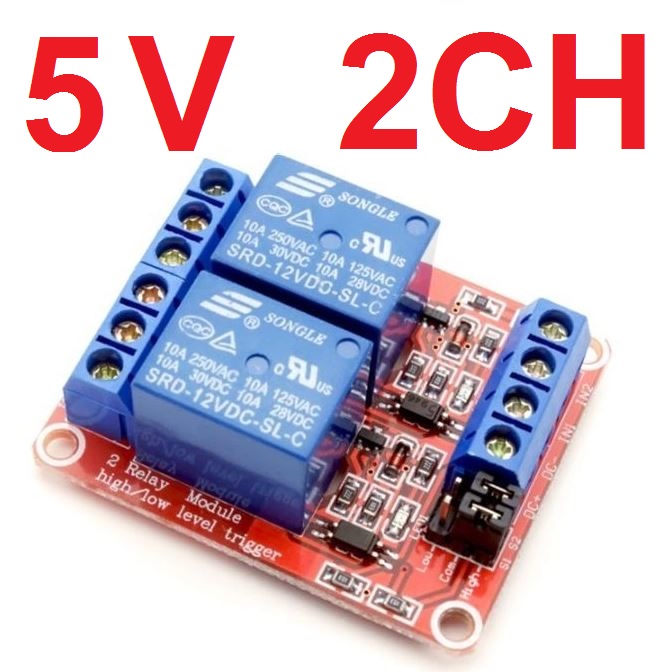

2 channel Relay Module 5V  High and Low Level Trigger Relay Control With Optocoupler Two Way relays DC 5 V

Module description:
1. the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;
2. using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA;
3. the module Operating voltage 5V
4. the module can be high or low by a jumper setting trigger;
5. fault-tolerant design, even if the control line is broken, the relay will not operate;
6. the power indicator (green), the relay status indicator (red)
7. the interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
8. module size: 50mm*26mm*18.5mm (L*W*H)

Module interface:
1. DC+: positive power supply (VCC)
2. DC-: negative power supply (GND)
3. IN: can be high or low level control relay

Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin

 Code:

int RelayPin1 = 6;
int RelayPin2 = 7;

void setup()
{
pinMode(RelayPin1,OUTPUT);
pinMode(RelayPin2,OUTPUT);
}

void loop()
{
digitalWrite(RelayPin1,HIGH);
delay(2000);
digitalWrite(RelayPin1,LOW);
delay(2000);
digitalWrite(RelayPin2,HIGH);
delay(2000);
digitalWrite(RelayPin2,LOW);
delay(2000);
}
