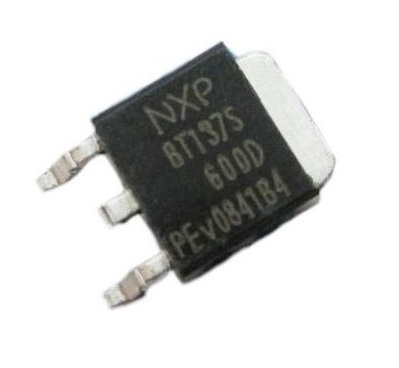

Planar passivated very sensitive gate four quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants. This very sensitive gate "series D" triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
Features and Benefits
- Direct triggering from low power drivers and logic ICs
- High blocking voltage capability
- Low holding current for low current loads and lowest EMI at commutation
- Planar passivated for voltage ruggedness and reliability
- Surface-mountable package
- Triggering in all four quadrants
- Very sensitive gate
Applications
- General purpose motor control
- General purpose switching
คุณสมบัติ / Specifications
| คุณสมบัติ | Value |
|---|---|
| Rated Average On-State Current | 8A |
| Mounting Type | Surface Mount |
| Package Type | DPAK (TO-252) |
| Maximum Gate Trigger Current | 5mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 71A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 10mA |
| Dimensions | 6.73 x 6.22 x 2.38mm |
| Length | 6.73mm |
| Width | 6.22mm |
| Height | 2.38mm |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 0.5mA |
| Peak On-State Voltage | 1.65V |
