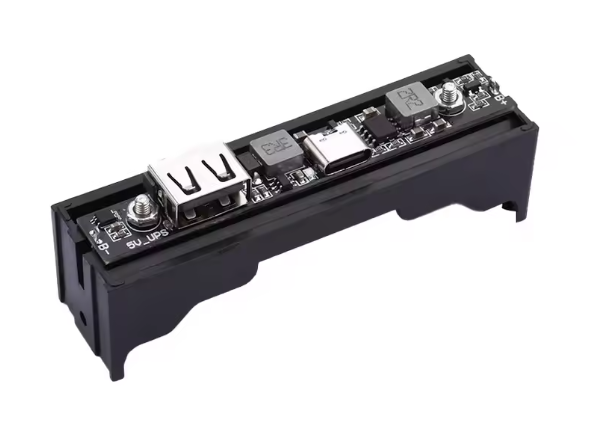

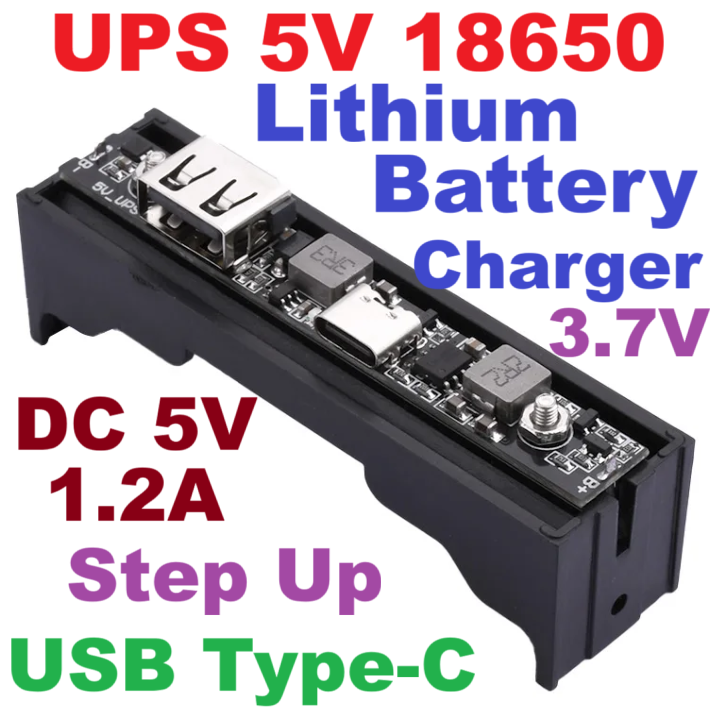

Type-c UPS 5V 18650 Lithium Battery Charger Board DC-DC Step Up Booster UPS Converter Charging Backup Power Supply

Type-c UPS 5V 18650 Lithium Battery Charger Board DC-DC Step Up Booster Converter Camera Adapter Battery Life Depletion Power Supply Uninterruptible Power Supply for Camera Power Supply

Description:

1. High cost-effective if the user already has a lithium battery. The camera's battery life can be achieved by connecting it, and the battery life depends on the battery capacity.

2. This product is simple and easy to use, just install the battery and it works.

3. After using the module connection, it can immediately switch to the battery power supply after a power failure, without restarting and continuous connection.

4. A single module can be paired with other 3.7V lithium batteries by itself, or you can choose your own paired 18650 battery pack to use.

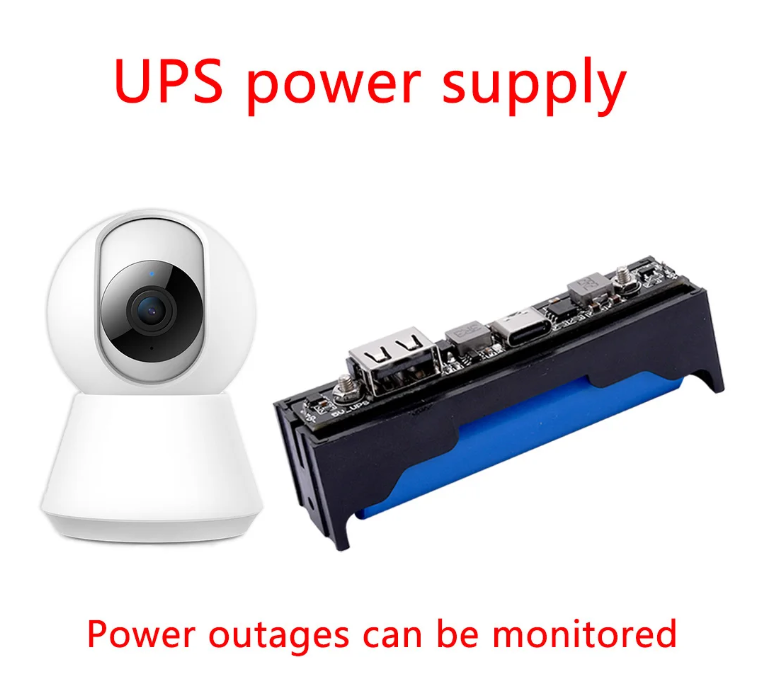

5. Product use: Suitable for camera/monitoring range UPS power supply, users can freely add lithium batteries, which can replace the expensive monitoring UPS power supply on the market.

Product Principle:

When the power supply is normal, the camera's original USB power supply directly supplies power to the camera and charges the UPS board's lithium battery. When the power goes out, the machine will automatically and smoothly switch to battery power without restarting and continuing to connect.

parameter:

Voltage: 5V

18650 battery voltage: 3.7V

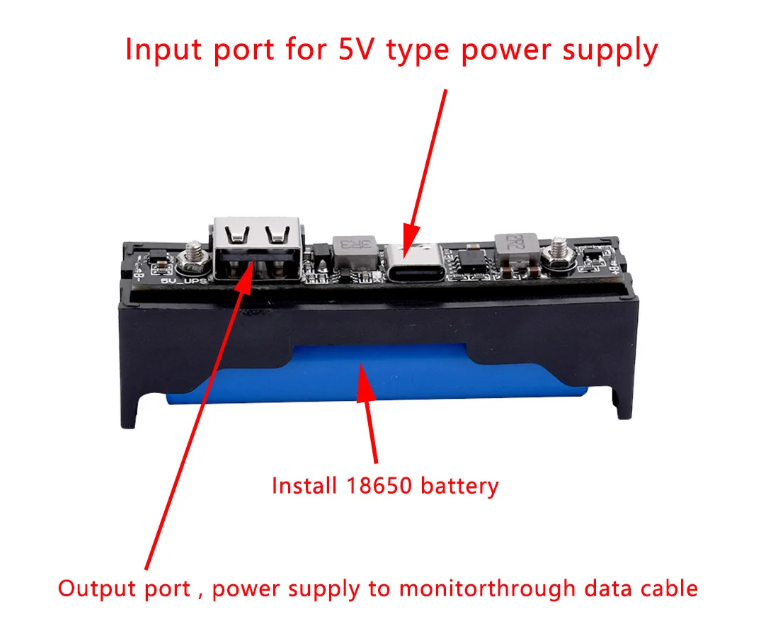

The output port supplies power to the monitor via a data cable.

Size: 7.35*1.05*0.6cm

Package includes:

1pcs x Type-C DC5V 18650 Lithium Battery Step Up Booster Charger Module

Note: Batteries are for display only and are not included in the delivery!
