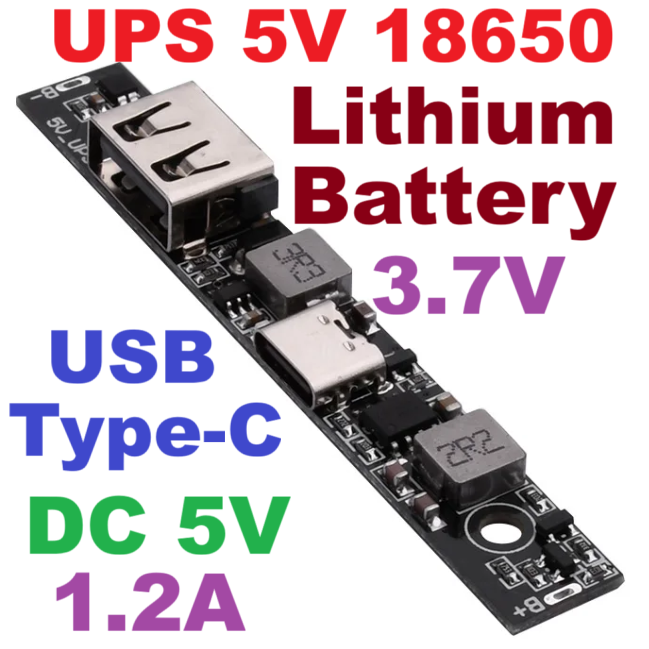

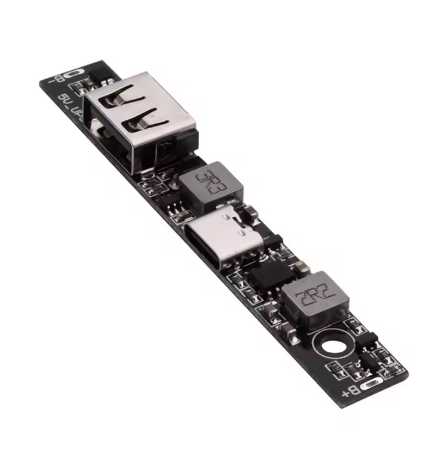

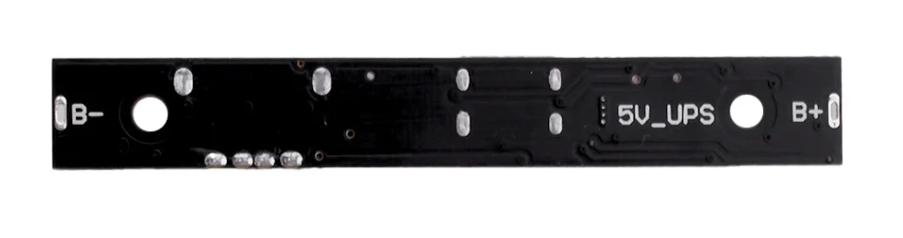

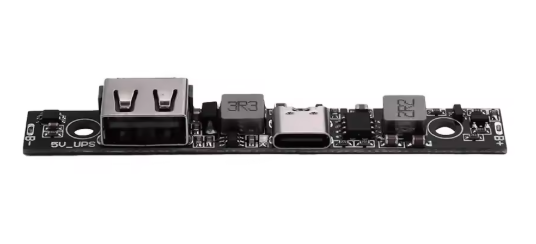

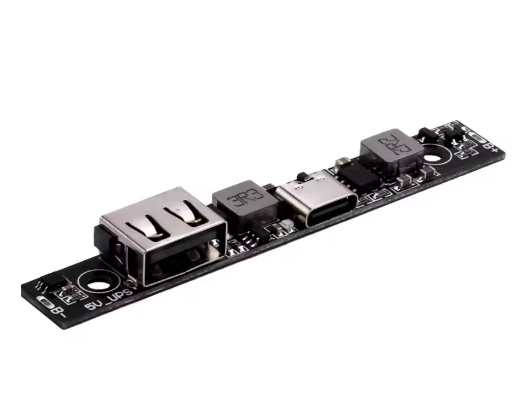

DC5V 18650 Lithium Battery Charger Board DC-DC Step Up Booster UPS Converter Charging Backup Power Supply

Feature:

1. It is worth it if the user has a lithium battery. The connection can achieve the camera's battery power. The lifespan will depend on the battery capacity.

2. The product is easy to use. Just install the battery and it can be used.

3. After connecting the module, it can be instantly switched to battery power in case of power failure, without restarting and continuous connection.

4. A single module can be matched with other 3.7V lithium batteries by itself, or you can choose a matching 18650 battery box to use.

5. Product application: Suitable for camera/monitoring UPS power supply, durable. Users can add lithium batteries as needed. It can replace the expensive monitoring UPS power supply on the market.

Product Principle:

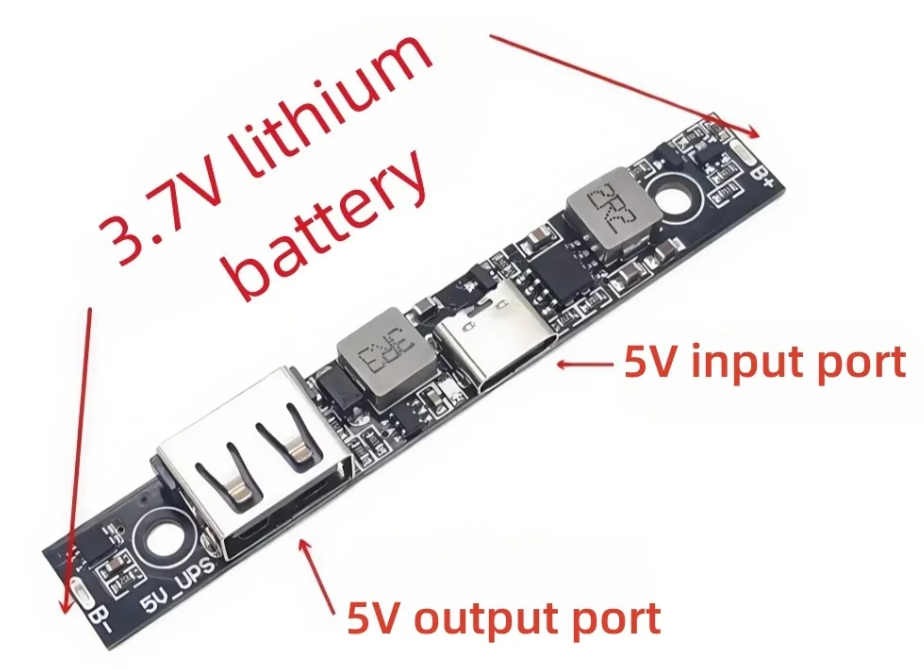

When the power supply is normal, the camera's original USB power supply directly supplies power to the camera, and charges the UPS board's lithium battery; when the power fails, the machine will automatically switch to the battery power supply without restarting.

Product parameters:

Voltage: 5V

18650 Battery Voltage: 3.7V

Output socket through data cable to power supply check

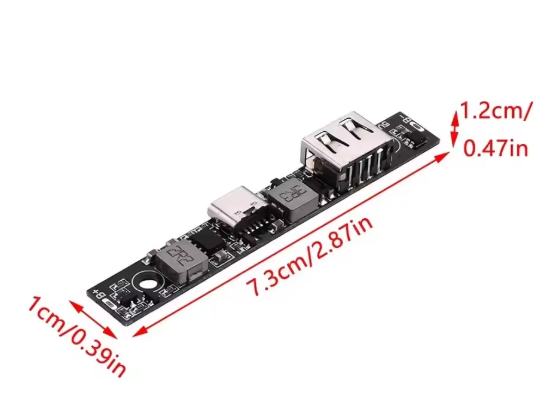

Size: 7.35*1.05*0.6cm

Included in the list:

1 x Type-C USB UPS 5V 18650 Lithium Battery Charger Board DC-DC Step Up Booster Converter Charging Backup Power Supply
