ADS1232 24-Bit A D Analog to Digital Converter Module Ultra Low Noise

Features
Complete Front-End for Bridge Sensors
Up to 23.5 Effective Bits
Onboard, Low-Noise PGA
RMS Noise:
17nV at 10SPS (PGA = 128)
44nV at 80SPS (PGA = 128)
19.2-Bit Noise-Free Resolution at Gain = 64
Over 100dB Simultaneous 50Hz and 60Hz Rejection
Flexible Clocking:
Low-Drift Onboard Oscillator (±3%) Optional External Crystal
Selectable Gains of 1, 2, 64, and 128
Easy Ratiometric Measurements—External Voltage Reference up to 5V
Selectable 10SPS or 80SPS Data Rates
Two-Channel Differential Input with Built-In Temperature Sensor (ADS1232)
Four-Channel Differential Input (ADS1234)
Simple Serial Digital Interface
Supply Range: 2.7V to 5.3V
-40°C to +105°C Temperature Range
APPLICATIONS
Weigh Scales
Strain Gauges
Pressure Sensors
Industrial Process Control

Package Included:

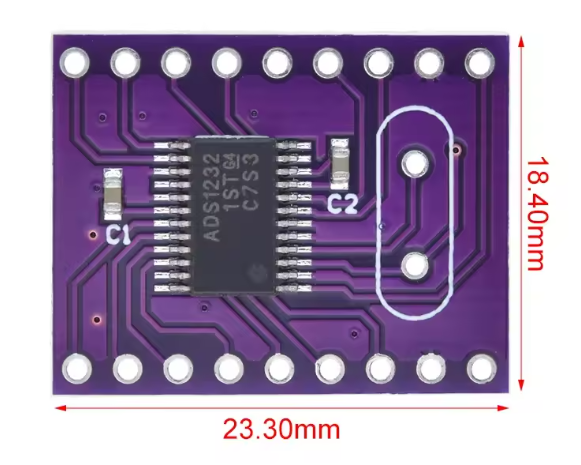

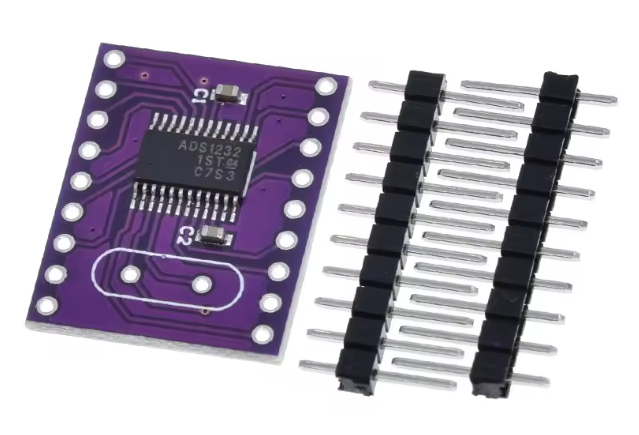

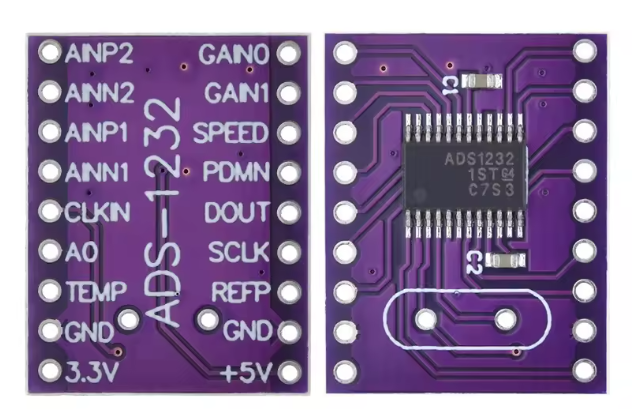

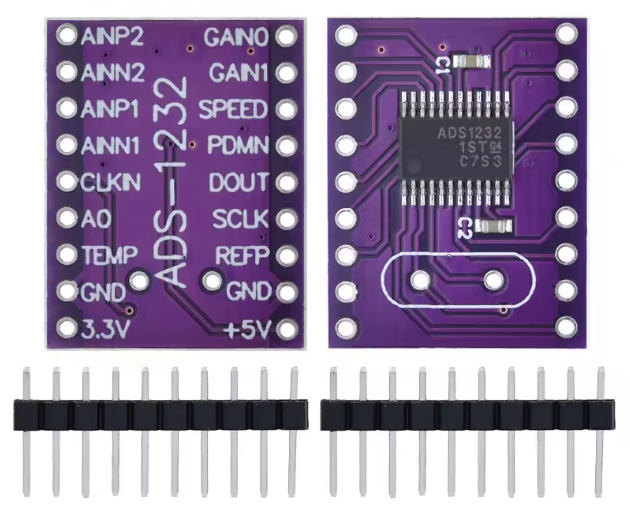

1Pcs NOYITO ADS1232 24-Bit A/D Analog to digital Converter Module
