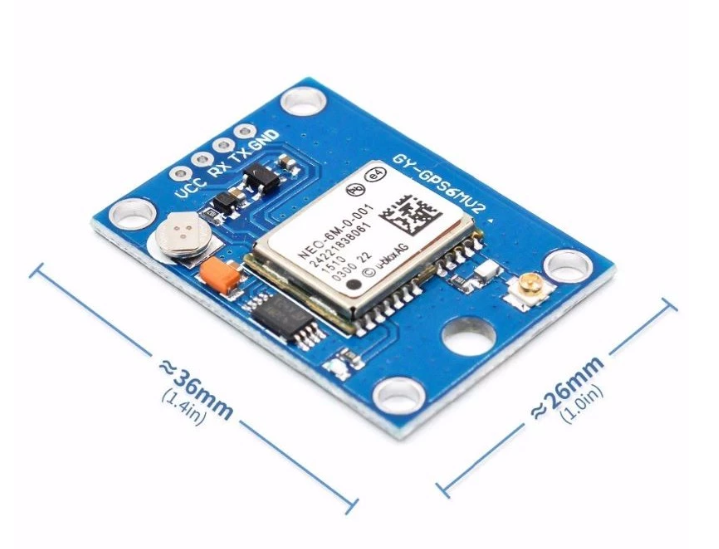

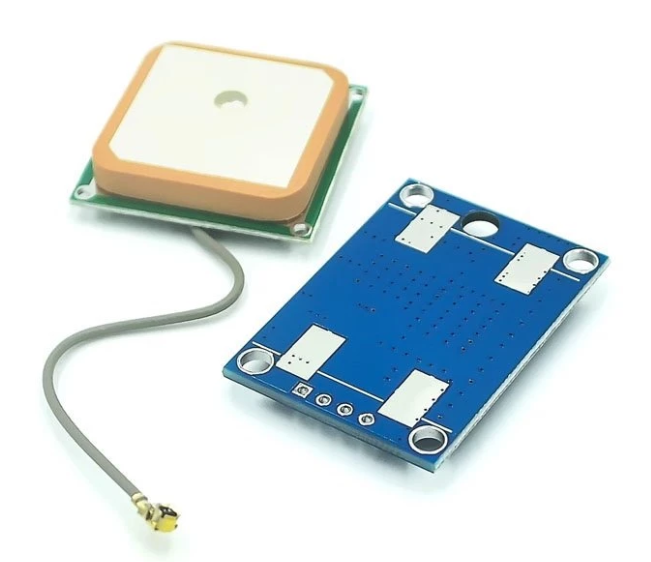

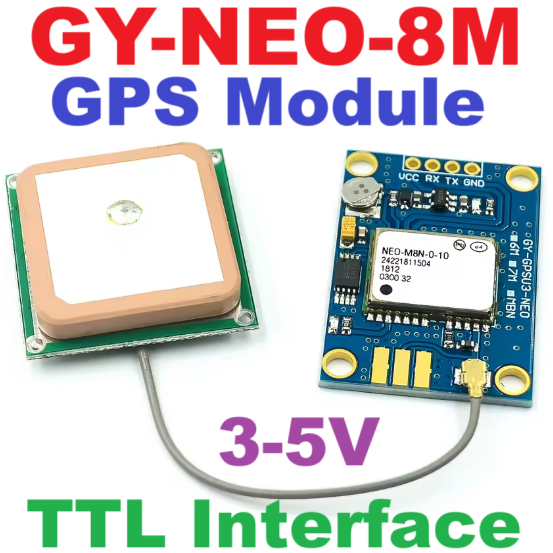

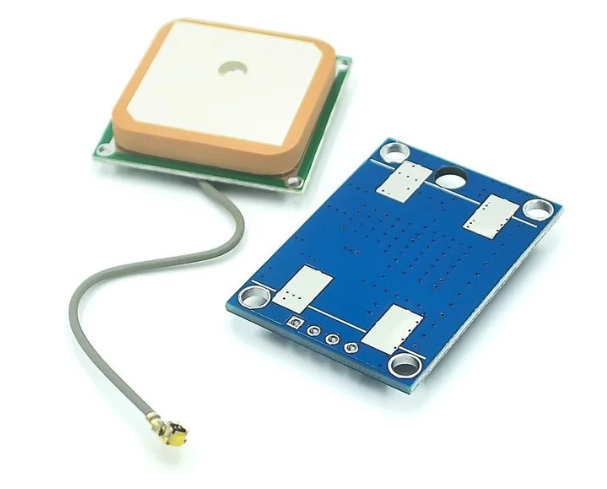

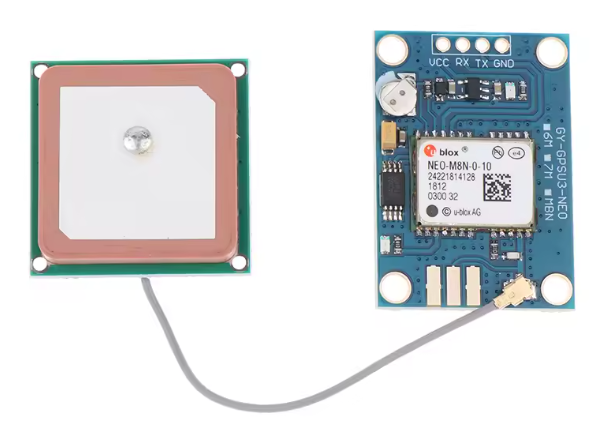

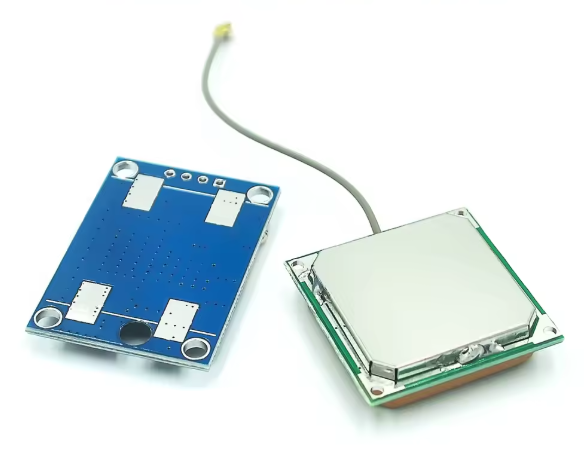

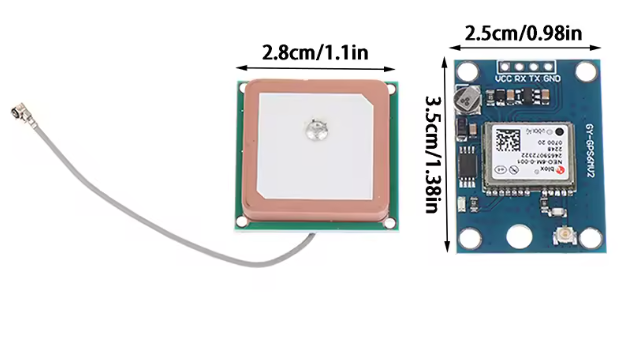

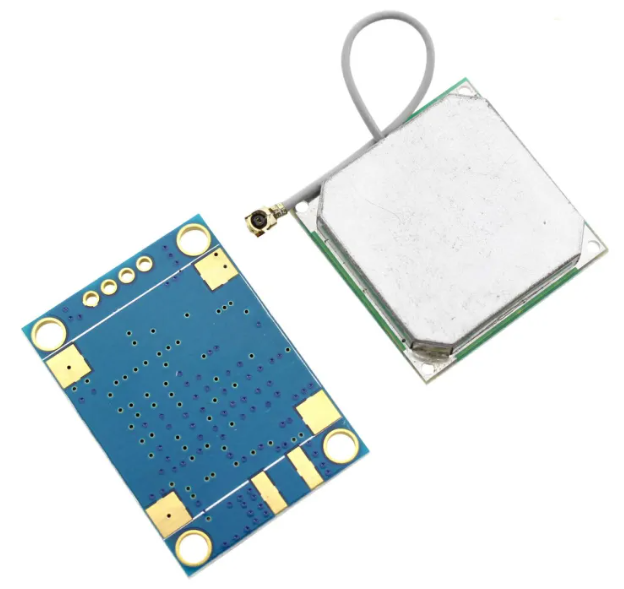

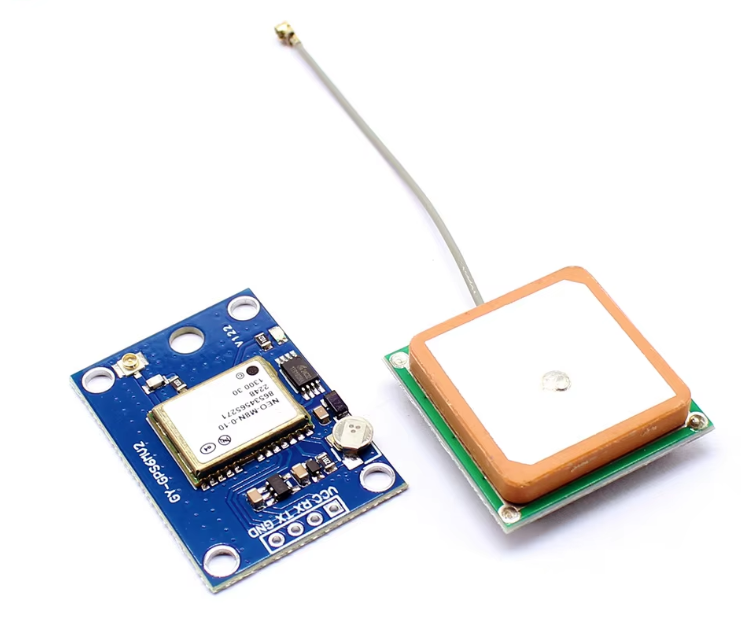

โมดูล GPS GY-NEO8M พร้อมเสาอากาศ GPS module with EEPROM MWC APM2.5 flight control with antenna (Ublox M8N)

ข้อมูล Ublox NEO-M8N GPS Module Antenna

Description:

• GPS Chip : Original U-blox NEO-M8N
• Antenna : Ceramic Active Antenna, Super Signal (with amplification, filtering)
• EEPROM Power Down Save Configuration Parameter Data
• Battery With Data Backup
• With LED Indicator Light
• Power supply voltage 3v-5v
• The default baud rate: 9600
• Compatible with all kinds of flight control module, GPS computer test software

GPS Chip parameters:

• Receiver type 72-channel u-blox M8 engine
• GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
• SBAS L1 C/A: WAAS, EGNOS, MSAS
• Galileo-ready E1B/C (NEO-M8N)
• Nav. update rate1 Single GNSS: up to 18 HZ
• Concurrent GNSS: up to 10 Hz
• Position accuracy2 2.0 m CEP
• Acquisition2 Cold starts: 26 s
• Aided starts: 2 s
• Reacquisition: 1.5 s
• Sensitivity2 Tracking & Nav: –167 dBm
• Cold starts: –148 dBm
• Hot starts: –156 dBm
• Assistance AssistNow GNSS Online
• AssistNow GNSS Offline (up to 35 days)3
• AssistNow Autonomous (up to 6 days)
• OMA SUPL & 3GPP compliant
• Oscillator TCXO (NEO-M8N/Q),
• Crystal (NEO-M8M)
• RTC crystal Built-In
• Noise figure On-chip LNA (NEO-M8M). Extra LNA for
• lowest noise figure (NEO-M8N/Q)
• Anti jamming Active CW detection and removal. Extra
• onboard SAW band pass filter (NEO-M8N/Q)
• Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
• Supported antennas Active and passive
• Odometer Travelled distance
• Data-logger For position, velocity, and time (NEO-M8N)
• Operating temp. –40° C to 85° C
• Storage temp. –40° C to 85° C (NEO-M8N/Q)
• –40° C to 105° C (NEO-M8M)
• RoHS compliant (lead-free)
• Qualification according to ISO 16750
• Manufactured and fully tested in ISO/TS 16949 certified production sites
• Uses u-blox M8 chips qualified according to AEC-Q100
• Supply voltage 1.65 V to 3.6 V (NEO-M8M)
• 2.7 V to 3.6 V (NEO-M8N/Q)
• Power consumption4 23 mA @ 3.0 V (continuous)
• 5 mA @ 3.0 V Power Save Mode
• (1 Hz, GPS mode only)
• Backup Supply 1.4 to 3.6 V
• NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module,
• TCXO, flash, SAW, LNA,
• Timepulse Configurable 0.25 Hz to 10 MHz
