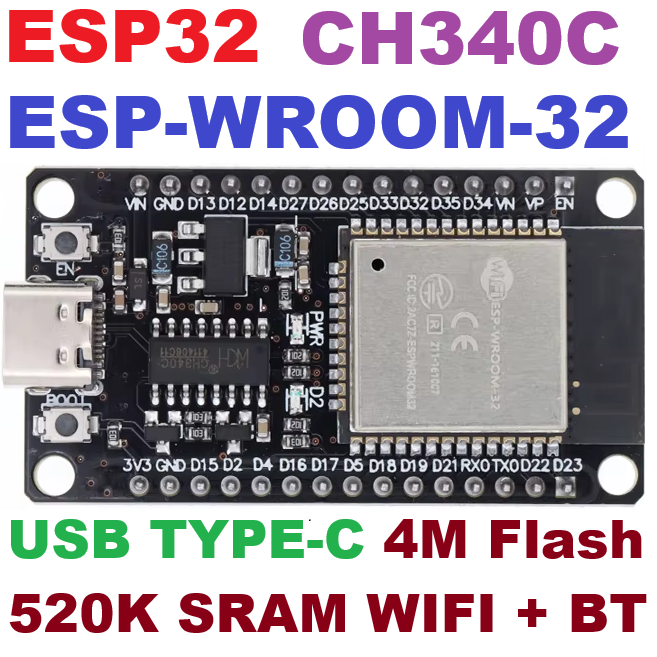

ESP32 Type-C 30pin CH340C development board WIFI + Bluetooth IoT smart home ESP-WROOM-32 ESP-32 ESP32 CH340

สินค้าที่เกี่ยวข้อง

Features:
1. The module is an ESP-WROOM-32 development board, and ESP-WROOM-32 parameter specifications refer to the parameter specifications of the module.
2.802.11B/G/WIFI + BT module; Low power dual-core 32-bit processor can be used as an application processor;
3. Main frequency can reach up to 240MHz and computing power can reach up to 600dmips; 520KB SRAM built-in;
4. Support interfaces such as UART/SPI/I2C/PWM/DAC/ADC; Support OPENOCD debug interface;
5. Supports multiple sleep modes with a current as low as 6.5UA during deep sleep; Embedded LWIP and FREERTOS;
6. Support STA/AP/STA+AP mode; Support smart configuration/AIRKISS one-click deployment network;
7. Universal AT command, easy to use; Support local serial port upgrade and remote upgrade.

Description:

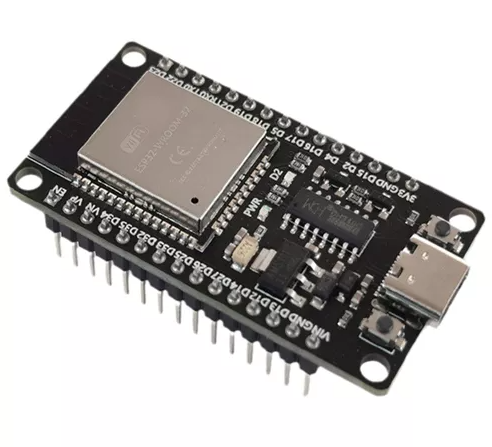

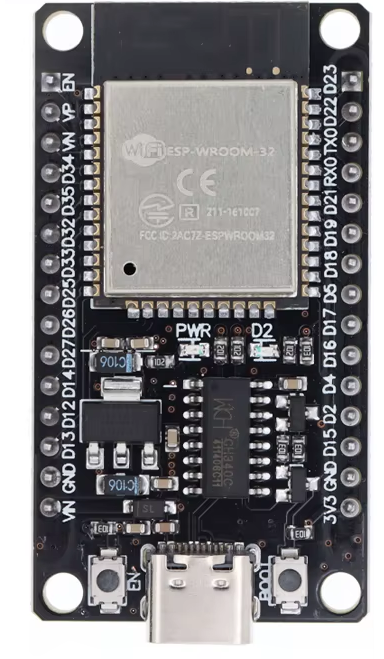

SP32 Dev Board CH340 - USB-C

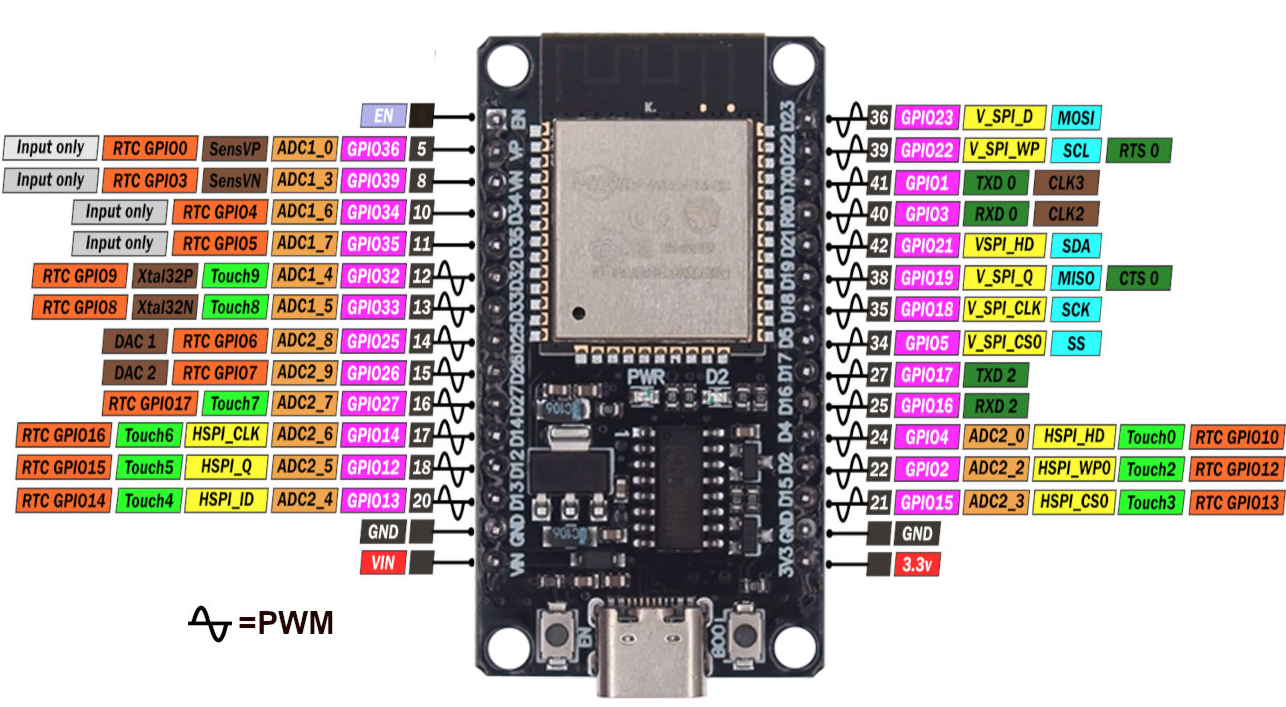

This is the ESP32S-DEV development board based on ESP-WROOM-32, features WiFi + Bluetooth connectivity, onboard USB CH340 and keys. What's more, all the I/O pins of ESP-WROOM-32 module are accessible via the extension headers. The board has 2x19pin extension headers, which breakout all the I/O pins of the module and 2x keys, used as reset or user-defined

Parameters:

ESP-WROOM-32 32-bit 240 MHz microprocessor

Supply Voltage: 5V

2.4 GHz Wi-Fi

Bluetooth 4.2

4 MByte (32Mbit) SPI Flash

448 KB ROM

520 KB SRAM

16 KB SRAM in RTC

PCB Antenna

Powered via USB Type-C Connector, or via pin header

Reset and User/Firmware buttons

User and Power LED

USB Type-C connector

Virtual USB port provided by CH340 for debugging and firmware upgrade

Assembled with ESP-WROOM-32 module

Dimensions: 51.5 x 28.5mm

Package include:
1X development board
