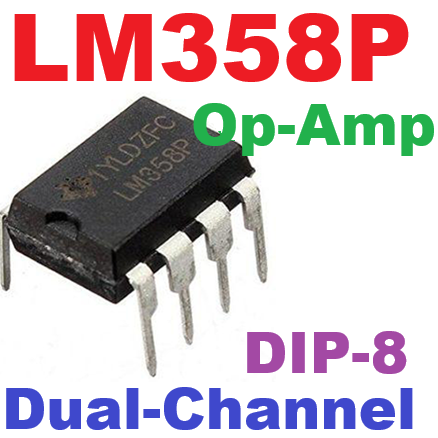

Op-Amp LM358P dual-channel DIP-8 integrated block operational amplifier LM358

If you’re looking for a good, standard opamp the LM358 should fill most of your needs. It can handle a supply of 3-32VDC and source up to 20mA per channel. This opamp is great if you need to operate two individual opamps from a single power supply. Comes in an 8-pin DIP package.

Features IC LM358:

• Two internally compensated op-amps
• Internally frequency compensated for unity gain
• Large DC voltage gain: 100 dB
• Wide bandwidth (unity gain): 1 MHz (temperature compensated)
• Wide power supply range:
  • Single supply: 3V to 32V
  • or dual supplies: +/-1.5V to +/-16V

Applications

The Lm358 is widely used in:

• “flashing beacon” type devices;
• Power supplies and battery chargers;
• Motor control circuits;
• motherboards;
• Split systems for indoor and outdoor applications;
• Household appliances: dishwashers, washing machines, refrigerators;
• various types of inverters;
• Uninterruptible power supplies;
• Controllers etc.

The application possibilities of the ICs are usually indicated by the manufacturers in the technical descriptions of their devices.

Technical Specifications

The LM358 maximum specifications are shown below for the ambient operating temperature range of TA from 0 to +70 °C, unless otherwise specified.

Basic electrical specs, at ambient temperature TA = 25 °C.

Recommended operating conditions in the ambient operating temperature range, unless otherwise specified:
