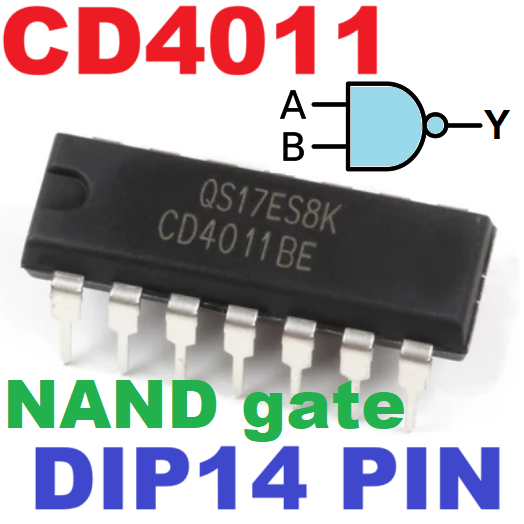

CD4011 DIP14 plug-in integrated circuit logic IC chip 4-way 2-input and non-gate

Description:

The CD4011BE NAND gates provide the system designer with direct implementation of the NAND function and supplement the existing family of CMOS gates. All inputs and outputs are buffered.

This item features:

• Propagation delay time = 60 ns (typ.) at C_L = 50 pF, V_DD = 10 V
• Buffered inputs and outputs
• Standardized symmetrical output characteristics
• Maximum input current of 1 u00b5A at 18 V over-full package temperature range; 100 nA at 18 V and 25u00b0C
• 100% tested for quiescent current at 20 V
• 5-V, 10-V, and 15-V parametric ratings
• Noise margin over full package temperature range:
      1 V at V_DD = 5 V
      2 V at V_DD = 10 V
      2.5 at V_DD = 15 V

Condition:

New and Authentic Component(s) - Texas Instruments CD4011BE CMOS Quad 2-Input NAND Gate IC.

Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.

Shipping and general details:

Shipping is free in the United States and shipped via USPS First Class.
We do our best to offer you great pricing.
Orders are packaged in custom-cut (dependent on quantity of chips ordered) anti-static tubes, providing excellent ESD protection.
30-Day Return Policy.
We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
