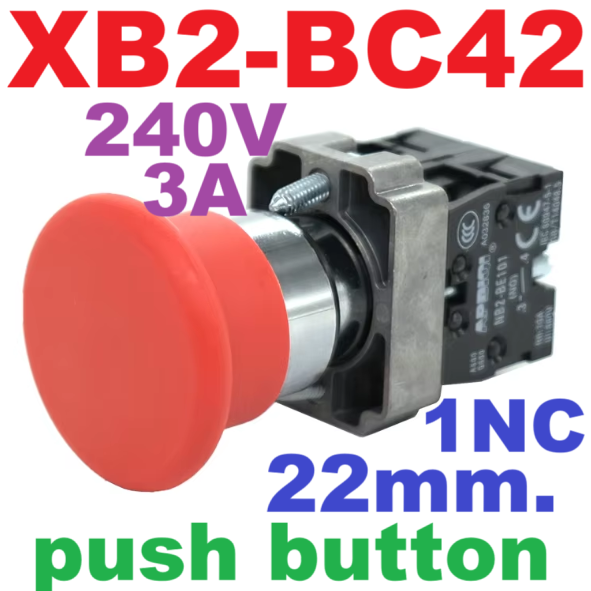

Mushroom head button XB2-BC42 red color self-reset switch push button switch 22mm. ZB2-BE102C normal closed Contact (NC.) High quality

XB2 button switch
1 Basic specification code :22mm
2 Protection level :IP40, IP65
3. Electrical durability :50 × 104
4.CE, CCC certification

Application program:
XB2 series push-button switch is suitable for AC 50Hz or 60Hz, rated working voltage 380V and below, DC working voltage 220V and below industrial control circuit, used for magnetic starter, contactor, relay and other electrical circuit control. The indicator button conforms to GB14048.5-2001 standard.
Main technical parameters
Ambient temperature:
5 + 40
Relative humidity:
45%-85%
Contact resistance:
Fifty meters?
Electric life
5.0x105
Sustained voltage
2500 v, 1 minute
Degree of protection
IP40
Rated insulation voltage, Ui
660 v
Conventional thermal current, i
-XB4-BC42 NON-LOCKING MUSHROOM SWITCH 22MM. สวิตช์ปุ่มกดหัวเห็ด 22มิล แบบกดไม่ล็อค สีแดง NC Ith: 10A IEC/EN60947-5-1 AC15: 240V 3A
