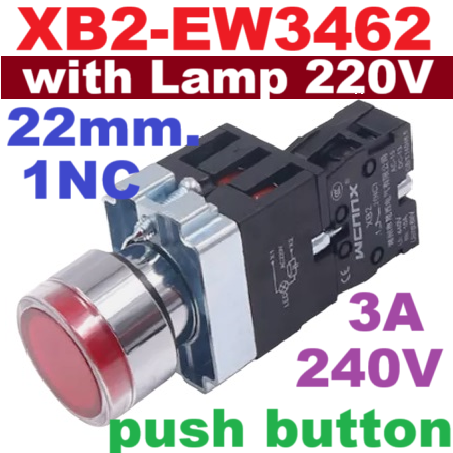

XB2-EW3462 with lighted Red color 220V push button switch 22mm. ZB2-BE102 normal closed Contact (NC.) High quality

● Product Name: XB2 LED Illuminated Push Button Switch
● Suitable for Panel Mounting Hole Size: 22mm
● LED Voltage: 24V AC/DC , 220V AC
● Color: Red, Yellow, Green
● Switch Rated insulation voltage（Ui）: 440V
● Switch Conventional thermal current（Ith）: 10A
● Switch Rated impulse withstand voltage (Uimp)：6kV
● Contact Resistance: ≤ 50mΩ
● Insulation resistance: ≥ 100MΩ
● Contact Material: Silver Alloy
● Material: Flame retardant Plastic + Metal
● IP Rating: IP40
● Ambient temperature: -25°C to +55°C
● Mechanical life: ≥ 2 Million Cycle
● Electrical life: ≥ 0.2 Million Cycle
● Contact: "NO" = Normally Open, "NC" = Normally Closed

Switch Mechanism:
- Momentary : a Momentary Switch Is Only Conected While You Are Operate It.that Means the Moment You Stop Applying Force on It, It Comes Back up.
