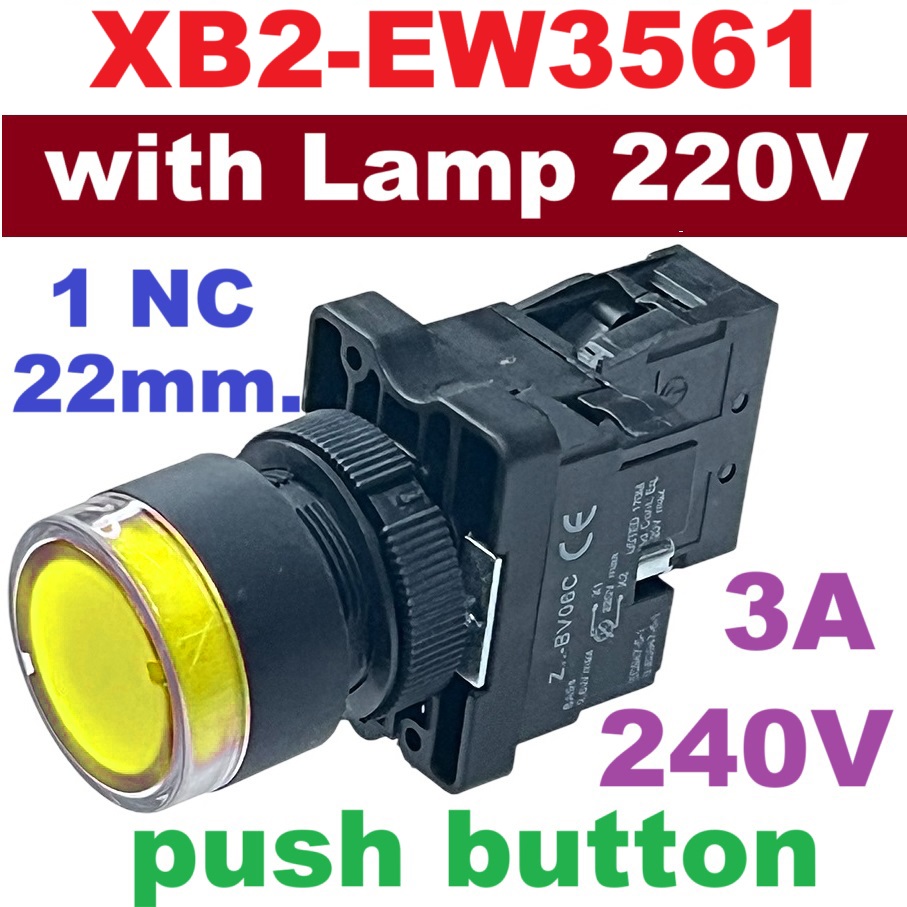

XB2-EW3561 with Lamp Yellow color 220V push button switch 22mm. ZB2-BE102C normal closed Contact (NC.) Plastic type

รายการสินค้าที่ใช้งานร่วมกัน

Luminous yellow pushbutton with an open contact (NA) diameter 22 mm. Possibility to add additional contacts. No voltage reducer is included, the bulb tension must match that applied. The bulb is not included.

The supply includes the full light pushbutton with an open contact.

This pushbutton can receive additional contacts, type XB2. A maximum of 2 contacts can be installed.

Features:

• Manufacturer/Supplier: Denor
• Reference: XB2-EW3561
• Color: yellow.
• Registration: none.
• Type of bushing: Ba9s.
• Maximum bulb voltage: 380 V.
• Contact: 1 NA.
• Nominal working intensity Ith: 10 A.
• Working intensity at 220 Vac: 4.5 A.
• Maximum working voltage: 415 V.
• Contact resistance: 50 mOhm.
• Degree of protection: IP40.
• Reference equivalent to XB2-EW3561; HB2-EW3561
