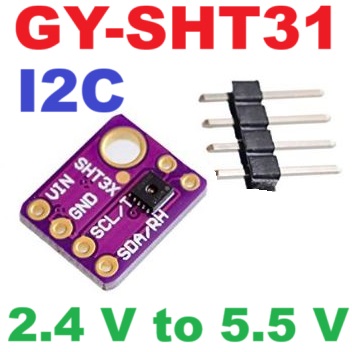

GY-SHT31-D Digital Temperature and Humidity Sensor Module เซนเซอร์ความชื้นและอุณหภูมิแบบ I2C

GY-SHT31 Digital Temperature and humidity เซนเซอร์ความชื้นและอุณหภูมิแบบ I2C

เซนเซอร์วัดอุณหภูมิและความชื้นแบบดิจิตอล รุ่น GY-SHT3X ติดต่อแบบ I2C

ตัวอย่างโคด Arduino GY-SHT3X ใช้ได้กับ Arduino / ESP8266 / ESP32

• VIN - 3.3V
• GND - GND
• SCL - A5
• SDA - A4

#include
#include
#include "Adafruit_SHT31.h"

Adafruit_SHT31 sht31 = Adafruit_SHT31();

void setup()
{
Serial.begin(9600);
if (! sht31.begin(0x44))
{
Serial.println("Couldn't find SHT31");
while (1) delay(1);
}
}
void loop()
{
float t = sht31.readTemperature();
float h = sht31.readHumidity();

if (! isnan(t))
{
Serial.print("Temp *C = "); Serial.println(t);
}
else
{
Serial.println("Failed to read temperature");
}

if (! isnan(h))
{
Serial.print("Hum. % = "); Serial.println(h);
}
else
{
Serial.println("Failed to read humidity");
}
Serial.println();
delay(1000);
}

 GY-SHT31 Digital Temperature and humidity เซนเซอร์ความชื้นและอุณหภูมิแบบ I2C

SHT31 is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMOSens® sensor chip that is at the heart of Sensirion’s new humidity and temperatureplatform.

The SHT3x-DIS has increased intelligence, reliability and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz. The DFN package has a footprint of 2.5 x 2.5 mm2 while keeping a height of 0.9 mm.

This allows for integration of the SHT3x-DIS into a great variety of applications.

Features

• Fully calibrated, linearized, and temperature compensated digital output
• Wide supply voltage range, from 2.4 V to 5.5 V
• I2C Interface with communication speeds up to 1 MHz and two user selectable addresses
