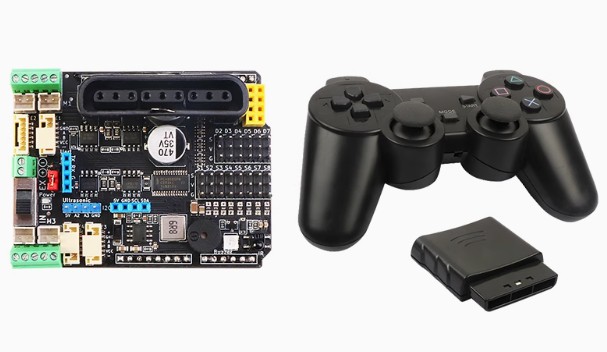

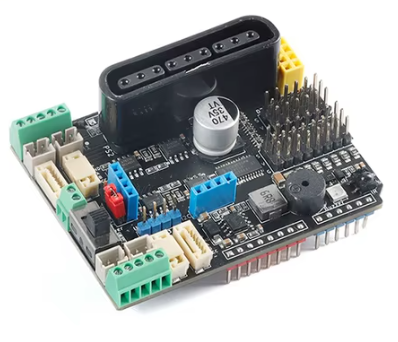

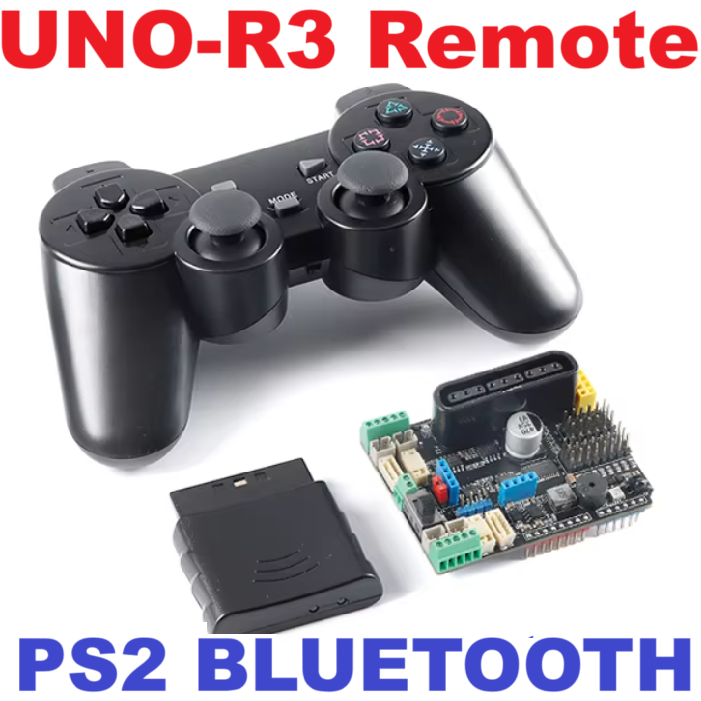

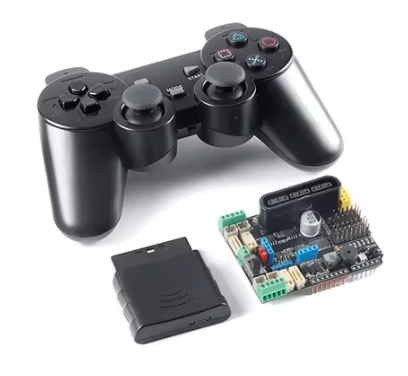

PS2 bluetooth remote control with four-way motor driver expansion board Compatible with Arduino UNO R3

1. It supports 4 DC motors with a maximum driving current of 3A

2. Support 8 channel servo with resettable fuse to prevent stalling

3. Support 2-way 4-wire stepper motor

4. Support 4-way encoded motor

5. Onboard passive buzzer (A0)

6. Onboard 1 RGB light (A1)

7. 1 x I2C port, 1 x PS2X port, 1 x UART Bluetooth/wifi module) port, 1 x NRF24L01 + wireless module interface

8. 1 ultrasonic module interface

9. The servo can be switched to an external power supply

10. Software support Arduino IDE, Mixly, Mind+, Mblock5, MagicBlock (based on Scratch3.0 can be customized)

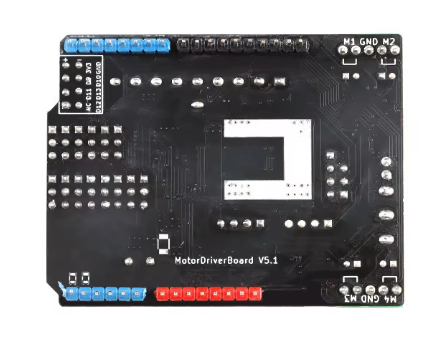

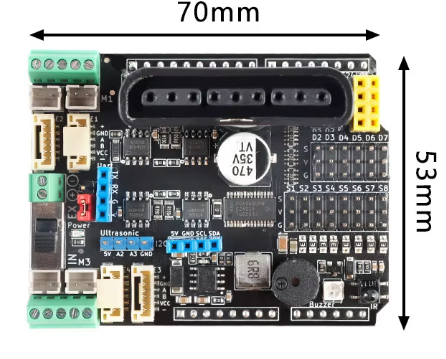

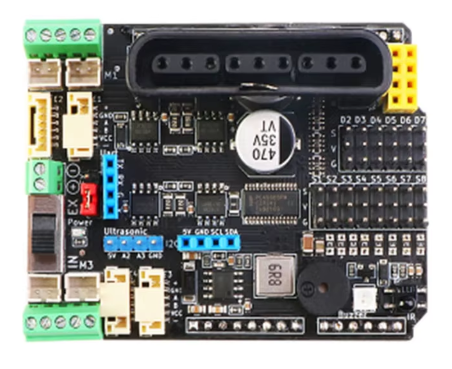

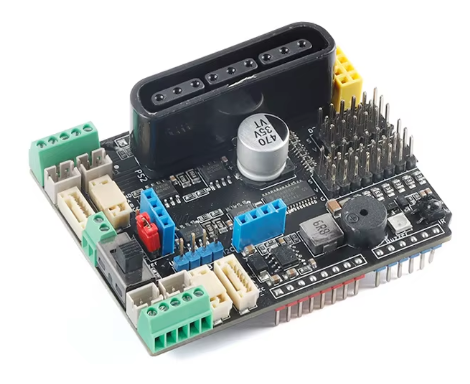

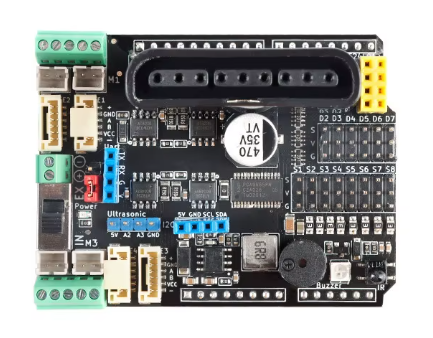

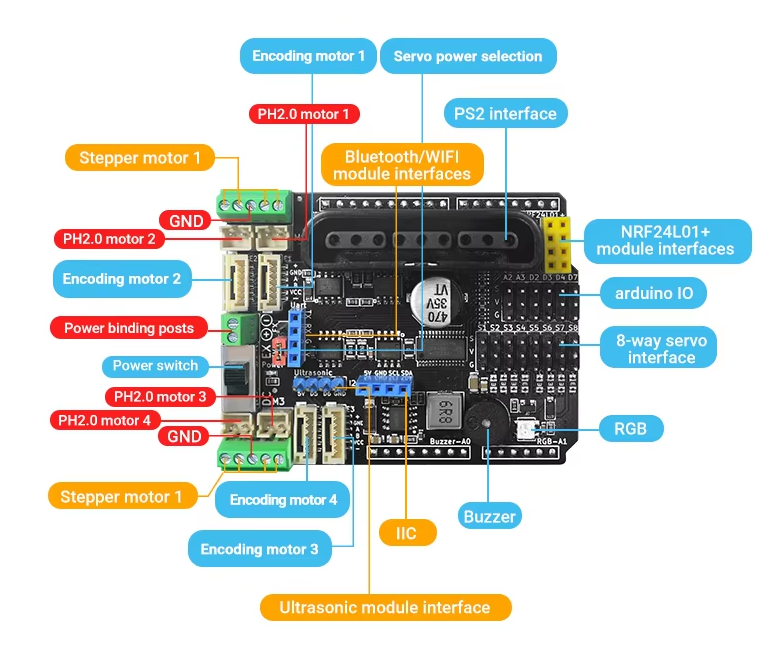

MotorDriverBoard V5.2

MotorDriverBoard is a multifunctional motor drive expansion board developed by Shenzhen Yichuang Space Technology Co., Ltd. specifically for Uno R3 (compatible with Mega2560) robots, motor drive, and multi-channel servo control. This driver board adopts a 12C mode to control PCA9685 (16 PWM output chips).
