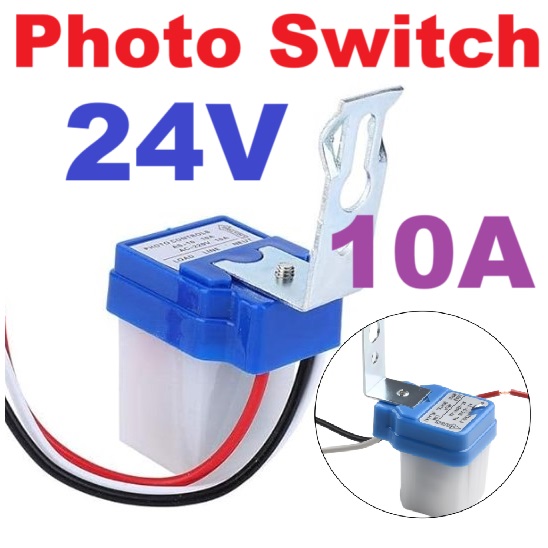

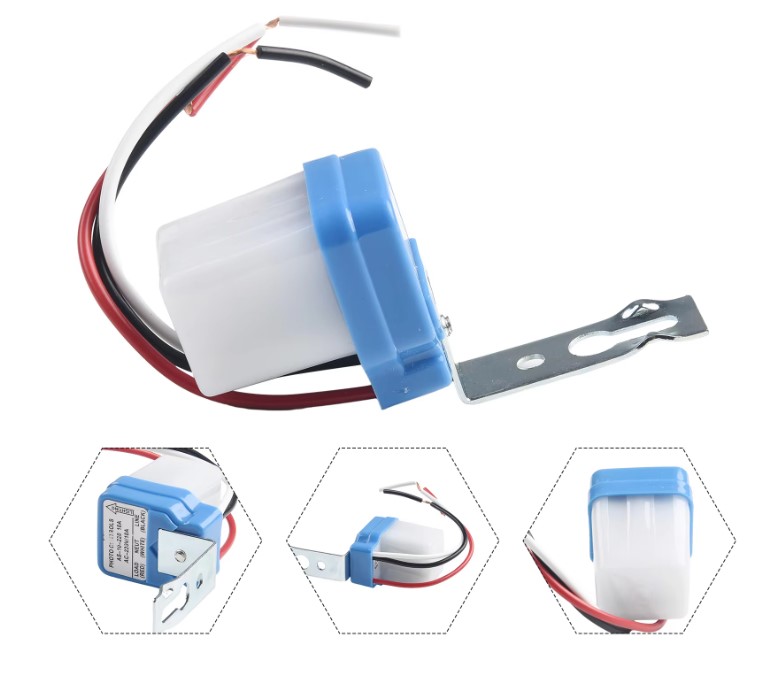

สวิทช์แสง AC/DC 24V 10A Photo switch Light control switch เปิด-ปิดไฟ อัตโนมัติ สวิตช์แสง

Features

1. Small size, easy to install, using metal wall mounting, solid and reliable

2. Not affected by weather, reliable function, high sensitivity

3.. Can automatically sense the light control lamp, no need to switch the lamp manually

4. With the anti-jamming ability of blocking the light power of the wrong switch

5. Internal relay control can be compatible with a variety of loads, can load LED lights, holiday lights, fluorescent lamps, incandescent lamps, etc.

6. Suitable for a variety of places: for household lamps, street lamps, garden lights, advertising light boxes, neon lights, etc.

Specification

Product Model: AS-10

Sensing mode: light control switch

Voltage:  DC24V  (optional)

Load current: 10A

Frequency: 50-60HZ

Sensing mode: light control switch

Delay time: 3-30 seconds

Load power: incandescent lamp ≤ 1000W, energy-saving lamps, fluorescent lamps, exhaust fans ≤ 400W

Brightness: ＜30Lux Brightness: ＞150Lux

Application scope: street lamp

Working Temperature: -20~+50°C

Installation Precautions

Don't install this device in the daytime especially dark place or by the direct light of the constant light, automatic switch red line black line connects the power supply, white line black line connects the load
