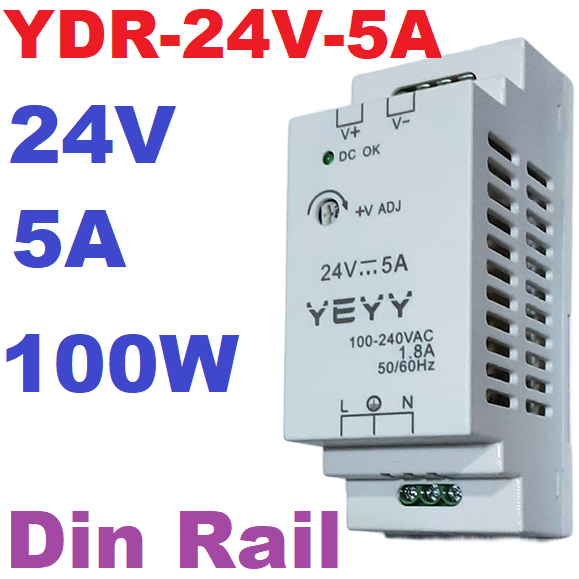

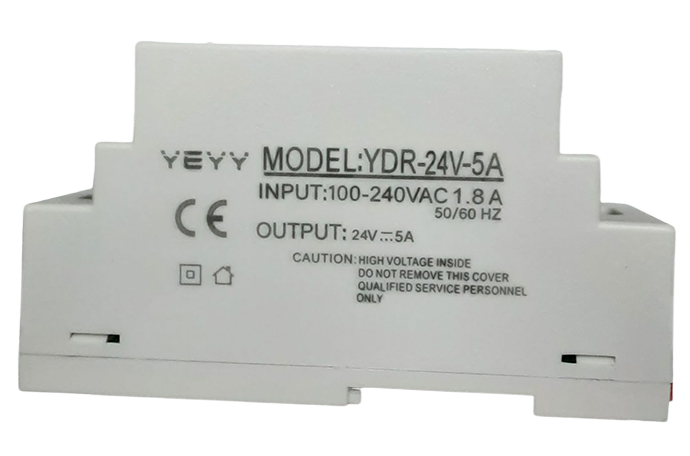

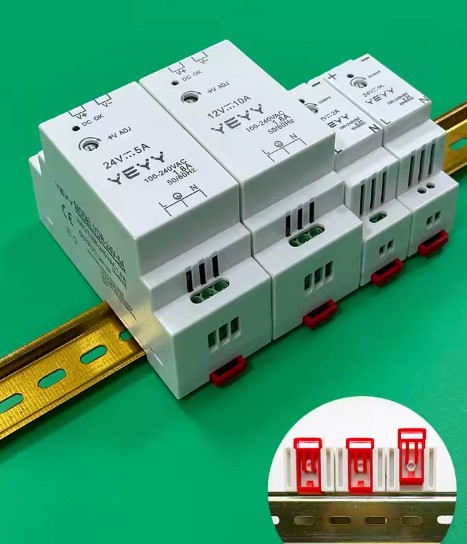

แหล่งจ่ายไฟ 24V 5A YDR-24V-5A Din Rail switching power supply with overcurrent overvoltage short circuit protection

Specifications

• Model: YDR-24V-5A
• Voltage range: 220-240VAC
• Output specification: 24V 5A
• Rated input voltage: 110V@60Hz / 240V@50Hz
• Maximum input voltage: < 1.8A
• Frequency: 50Hz~60Hz
• Efficiency: ≥ 87%
• Rated output voltage: 24V
• Output voltage range: 22.8V~25.2VDC
• Rated current:  4.2A
• Ripple+noise: < 200mV
• Start time: 220VAC < 3S
• Hold time: 10ms @ 220VAC
• Power: 100W
• Overcurrent protection: 5.2A - 6.8A

Protection function

• Overvoltage protection: Yes
• Short circuit protection: Yes (short circuit protection, no machine failure, automatic recovery)

Insulation strength

• Input-Output: 1KV3S 5mA
• Insulation impedance: Input-Output 500M 500VDC

Ambient temperature

• Working temperature: 0°C~+40°C
• Storage temperature: -25°C~+75°C

Safety regulations and EMC

• Safety standards: EN60950
• EMC: EN55022 B

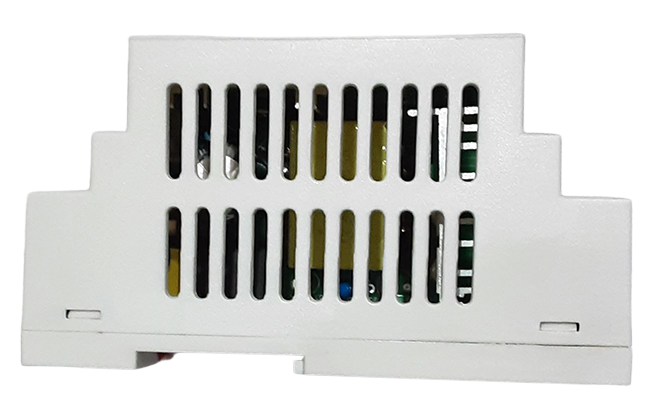

Cooling form

• Natural cooling

Structure

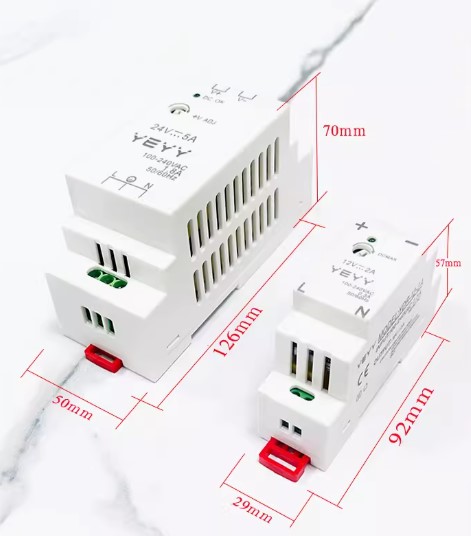

• Overall dimensions: 126x50x70mm (LxWxH)

Additional notes

• This power supply is intended for indoor use only.
• Do not operate the power supply in a wet or dusty environment.
• Do not overload the power supply.
• Do not disassemble the power supply.
• If the power supply is damaged, do not use it. Replace it with a new one.

Overall, this is a well-made and reliable power supply that is suitable for a variety of applications.
