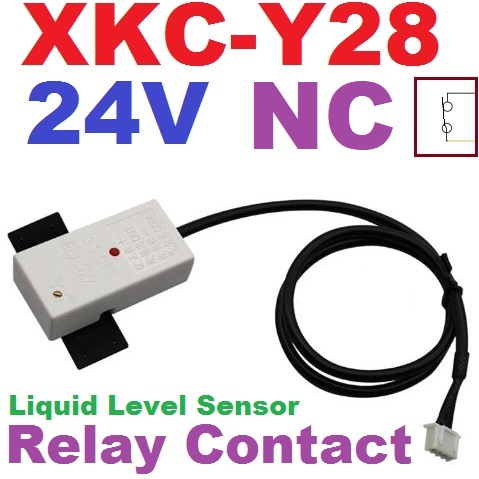

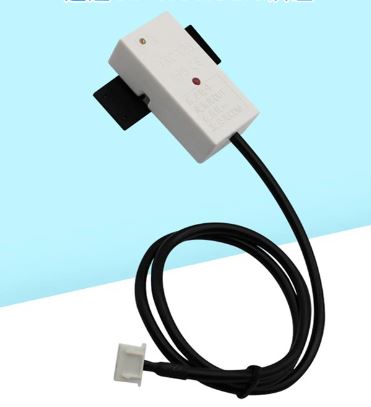

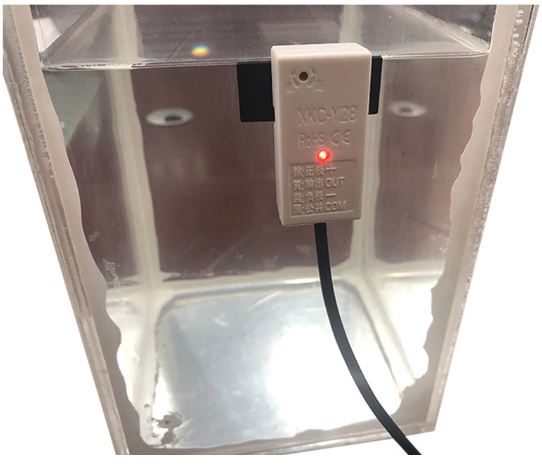

XKC-Y28-NC 24V (NC: Relay contact normally Close) Liquid Level Sensor Switch Detector Water Float Switch Liquid Detection Water Tank Water Pipe Level Sensor วัดระดับน้ำ เซ็นเซอร์ตรวจจับของเหลว XKC-Y28

1, select the product

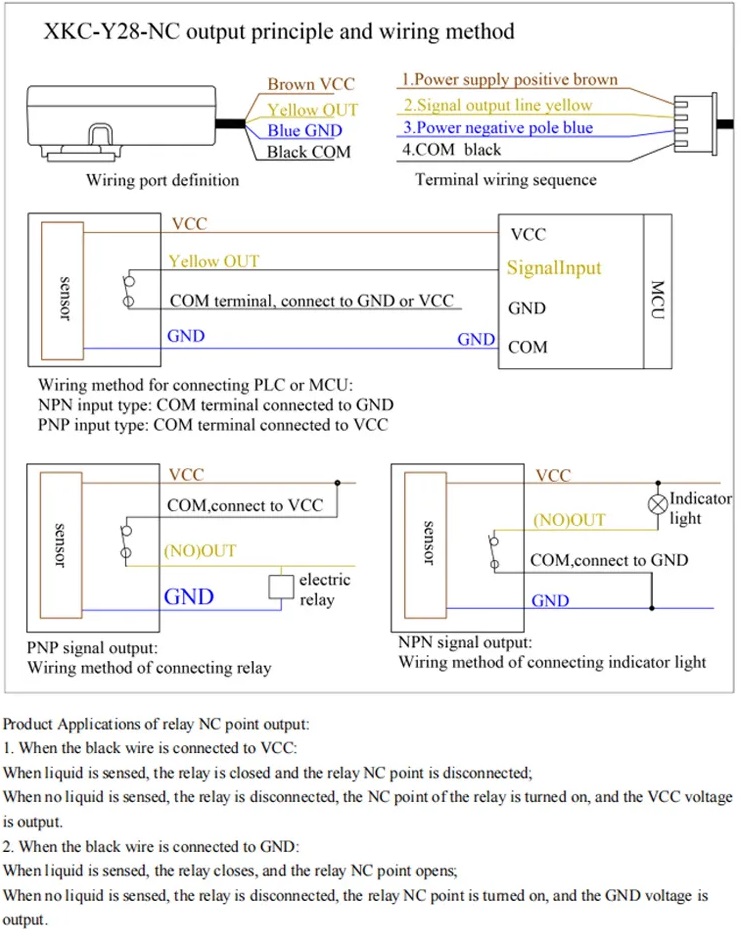

XKC-Y28-NO/NC This product is specially developed for non-metallic pipe (pipe outer diameter D≥ 11mm) or container container liquid level detection. They are relay normally open output and relay normally closed;

Normally Open Output-Model: XKC-Y28-NC (DC 24V)

2, Product Features

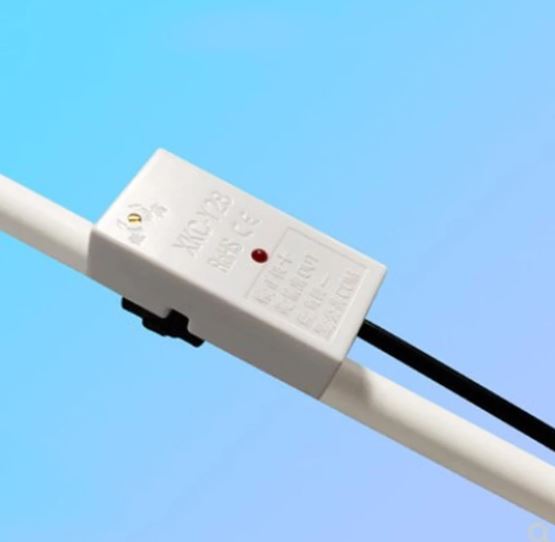

1. XKC-Y28-NC sensor is suitable for non-metallic pipe (pipe outer diameter D≥ 11mm) or flat container without direct contact with liquid,
will not be corroded by strong acid or alkali and so on. corrosive liquid, and will not be affected by scale or other debris. It can finish detecting whether the liquid is inside the container or pipe.
2. Intelligent liquid reference level adjustment and liquid level memory function, liquid level status mode mode, can realize multi-point series connection
3. The detection is accurate and stable, and the boiling water level can be detected
4 .PURE electronic circuit structure, Non-Mechanical working mode, durability performance
5.High stability, high sensitivity, anti-interference ability, free of external electromagnetic waves, special for interference and interference mode, to compatible with 24V adapters on the market.

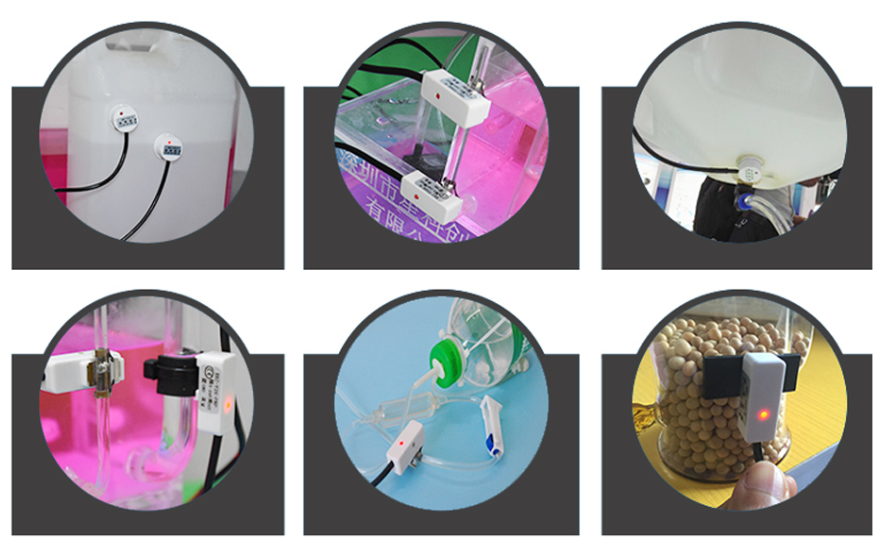

6. Strong compatibility, penetrating various non-metallic container pipes, plastic, glass, ceramics and other induction containers, wall thickness can reach 20mm, suitable for arc, arc, cylindrical containers or pipe liquid. Level Detection.

3, product parameters

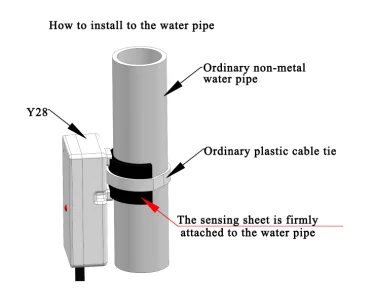

Install the non-metal tubular type as shown below.

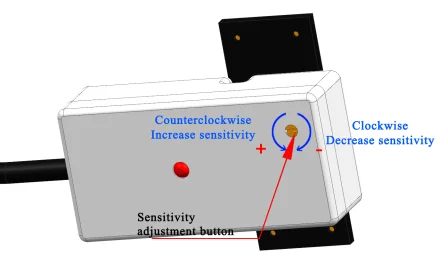

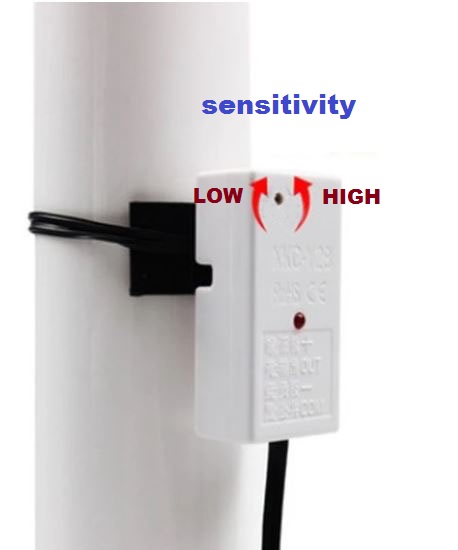

The height of the sensed liquid level is related to the sensitivity of the sensor. The higher the sensitivity, the lower the sensed liquid level.
Note: The liquid level is sensed in the top and edge of the sensor, which is normal. The
induction pad can be firmly attached to the pipe with strong adhesive, or it can be tightened to the pipe with a nylon ties. Try to avoid other metal parts where the probe is installed, so as not to affect the detection. The pipe is made of non-metallic material surface, uniform thickness, tight material, and good insulation performance, such as glass pipes, plastic pipes, PC/PVC/PPR pipe, non-ceramic absorbent pipe, acrylic pipe, rubber pipe, etc. or composite pipe made of material.
