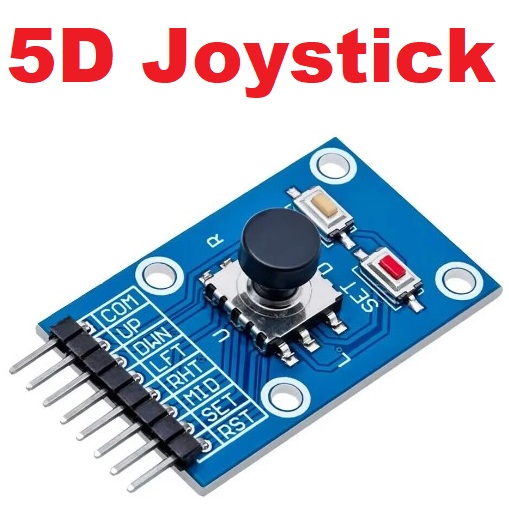

Five-way navigation buttons for 5D games Joystick module, independent navigation buttons จอยสติ๊ก คุม 5 ทิศทาง

  /*

  Made on Dec 12, 2020

  By MehranMaleki @ Electropeak

  Home

*/

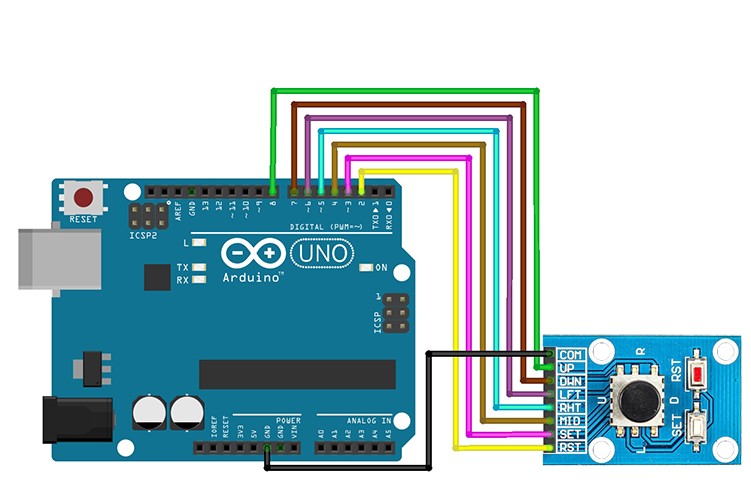

const int buttonPin_RST = 2;     // the number of the reset button pin

const int buttonPin_SET = 3;     // the number of the set button pin

const int buttonPin_MID = 4;     // the number of the middle button pin

const int buttonPin_RHT = 5;     // the number of the right button pin

const int buttonPin_LFT = 6;     // the number of the left button pin

const int buttonPin_DWN = 7;     // the number of the down button pin

const int buttonPin_UP = 8;      // the number of the up button pin

void setup() {

  Serial.begin(9600);




  pinMode(buttonPin_RST, INPUT_PULLUP);

  pinMode(buttonPin_SET, INPUT_PULLUP);

  pinMode(buttonPin_MID, INPUT_PULLUP);

  pinMode(buttonPin_RHT, INPUT_PULLUP);

  pinMode(buttonPin_LFT, INPUT_PULLUP);

  pinMode(buttonPin_DWN, INPUT_PULLUP);

  pinMode(buttonPin_UP, INPUT_PULLUP);

}

void loop() {

  if(digitalRead(buttonPin_RST) == LOW) {

    delay(250);

    Serial.println("Reset Pin Is Pressed.");

    while(digitalRead(buttonPin_RST) == LOW);

  }




  if(digitalRead(buttonPin_SET) == LOW) {

    delay(250);

    Serial.println("Set Pin Is Pressed.");

    while(digitalRead(buttonPin_SET) == LOW);

  }




  if(digitalRead(buttonPin_MID) == LOW) {

    delay(250);

    Serial.println("Middle Pin Is Pressed.");

    while(digitalRead(buttonPin_MID) == LOW);

  }




  if(digitalRead(buttonPin_RHT) == LOW) {

    delay(250);

    Serial.println("Right Pin Is Pressed.");

    while(digitalRead(buttonPin_RHT) == LOW);

  }




  if(digitalRead(buttonPin_LFT) == LOW) {

    delay(250);

    Serial.println("Left Pin Is Pressed.");

    while(digitalRead(buttonPin_LFT) == LOW);

  }




  if(digitalRead(buttonPin_DWN) == LOW) {

    delay(250);

    Serial.println("Down Pin Is Pressed.");

    while(digitalRead(buttonPin_DWN) == LOW);

  }




  if(digitalRead(buttonPin_UP) == LOW) {

    delay(250);

    Serial.println("Up Pin Is Pressed.");

    while(digitalRead(buttonPin_UP) == LOW);

  }

}
