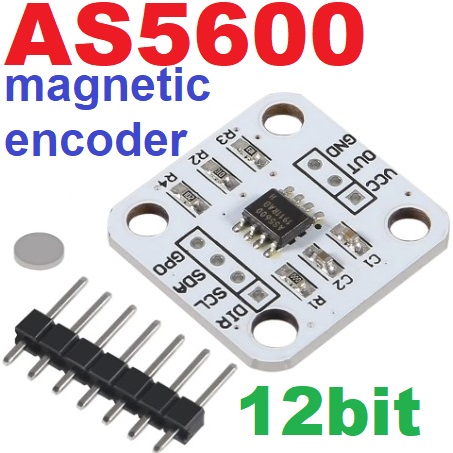

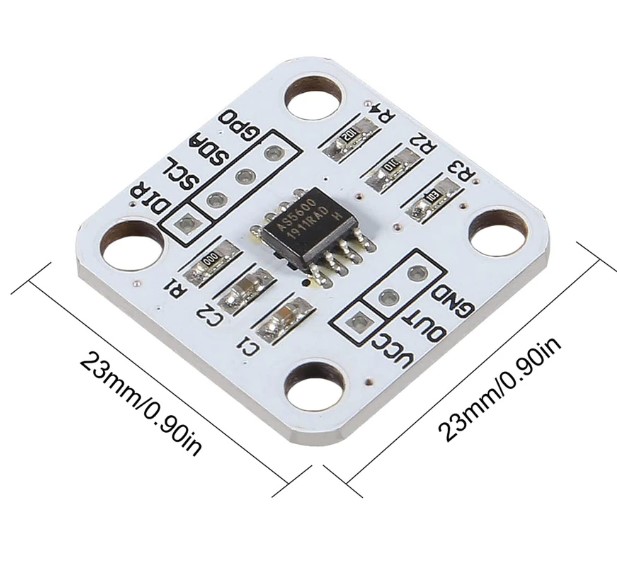

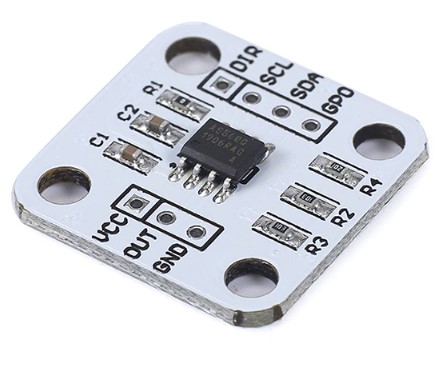

AS5600 magnetic encoder 12bit high precision magnetic induction angle measurement sensor module

attribute:

100% brand new and high quality

Non-contact magnetic induction angle measurement module

High precision, a variety of output modes: IIC , PWM and voltage.

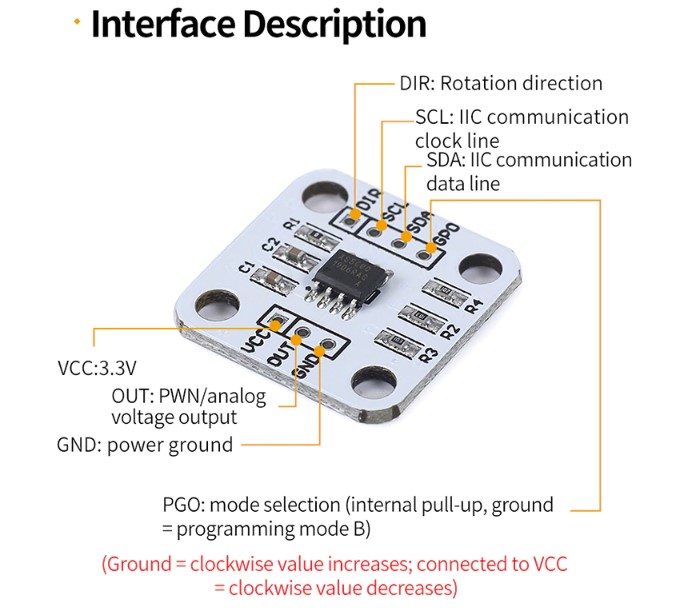

Electrical parameters:

VCC: 3.3V

GND: feed ground

OUT: PWM/Analog voltage output

DIR: direction of rotation (Earth = clockwise increment value; then VCC = the clockwise value will decrease)

SCL: IIC clock communication line

SDA: IIC data cable

GPO: Mode Select (Internal Ground Traction = Programming Mode B)

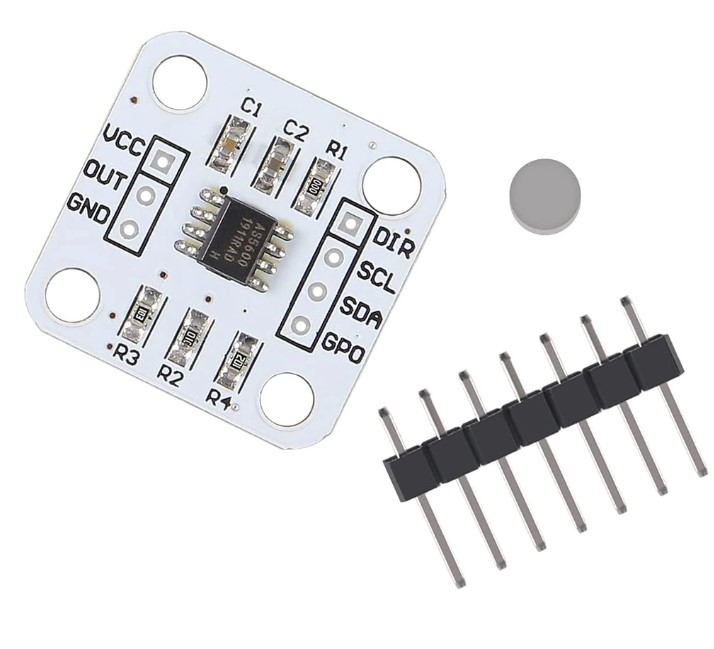

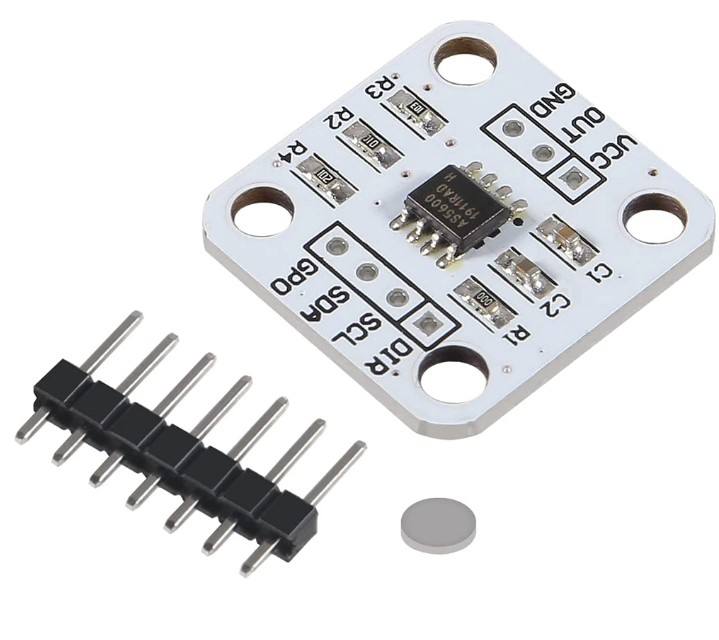

Package Included:

1 x Encoder Magnet
