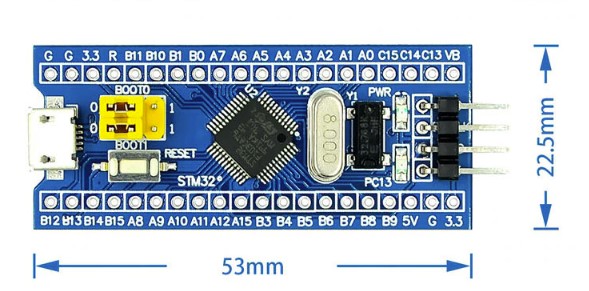

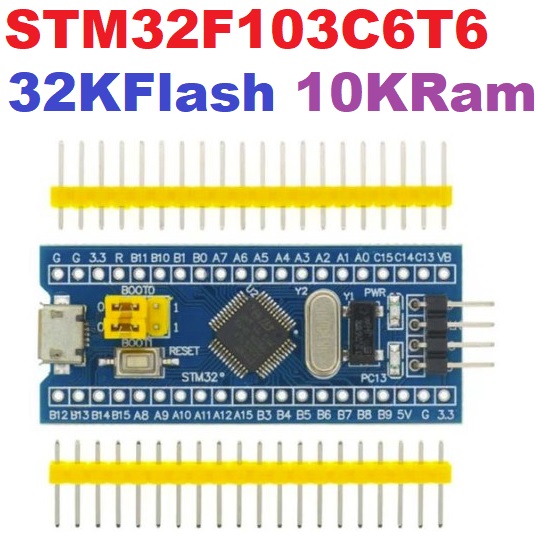

STM32F103C6T6 STM32 32KFlash 10KRam minimum system board core board

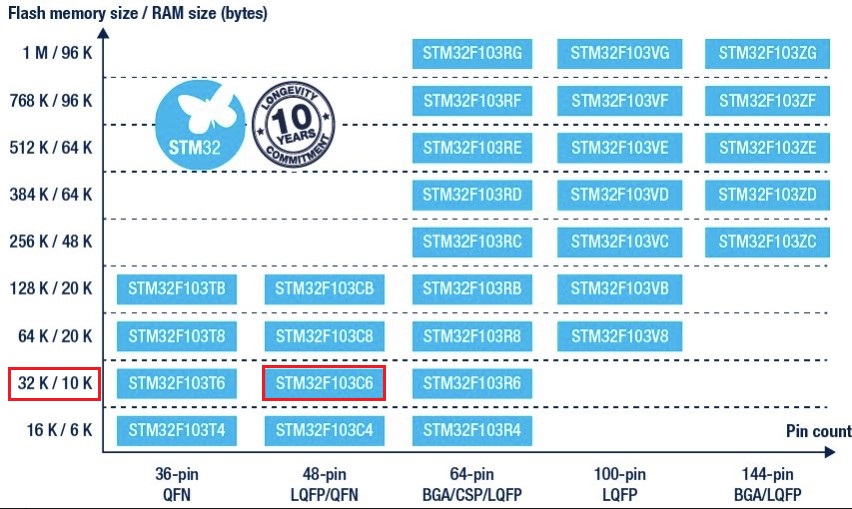

Different from STM32F103C6T6 STM32F103C8T6

This is the main chip based on the ARM motherboard. CS32F103C6T6 has the following features:

1, The board uses the most basic MCU circuit, 8M 32768 crystal circuit and USB power supply circuit.

2, The main board is divided into two rows, leading to all I / O ports.

3With SWD emulation debug download interface, easy to use and convenient, debugging speed.

4. The use of micro USB interface, you can communicate via USB and power supply, USB interface is compatible with ordinary Andrews mobile phone charger interface.

6, Epson brand RTC crystal, easier to start and more stable.

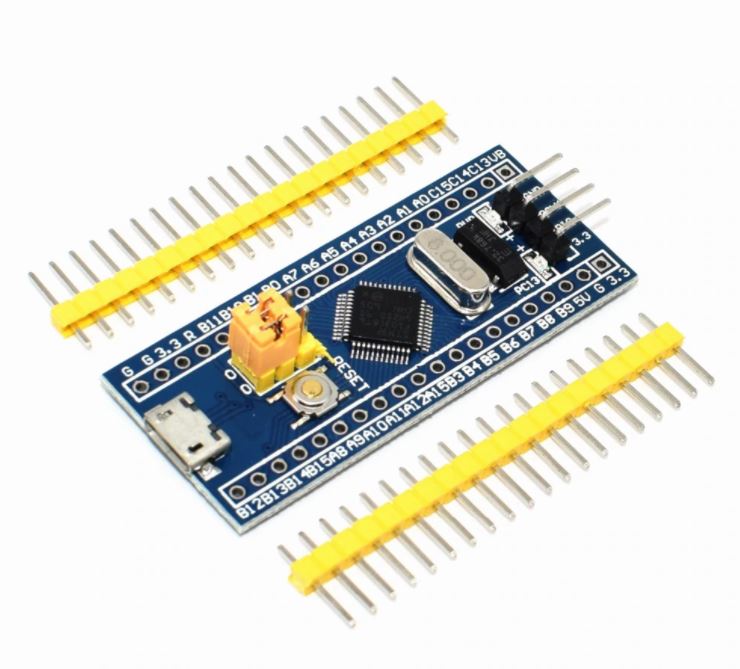

7, with double pin, but the pin does not start welding, users according to their own use situation to choose their own welding direction. If welding is required, please tell the owner.

Keil can be used to compile the IAR compiler can be downloaded through the J-Link procedure or the USART1 procedure. The procedure is the owner and the debugging process, so there is a problem can consult the owner.

Chip description:

1, 32F103C6T6

Package type: LQFP;

Number of pins: 48;

Kernel: Cortex-M3;

Working frequency: 72MHz;

Storage resources: 32K Byte Flash, 10KByte SRAM;

Interface resources: 2x SPI, 3X USART, 2x I2C, 1x CAN, 37X I/O ports,

Analog-to-digital conversion: 2x ADC (12 bit/16 channels)

Timers: 3 regular timers and 1 advanced timer

Debug Download: Support JTAG/SWD Debug Interface to download, support iap.

2 RT9193: 3.3V regulator chip, the maximum output of 300mA .

Interface description:

1, SWD interface: support download and debug emulation.

2 Micro USB interface: power supply and USB communication, download is not supported.

3. USART1 interface: USART1 can be used to download programs or use USART1 to communicate

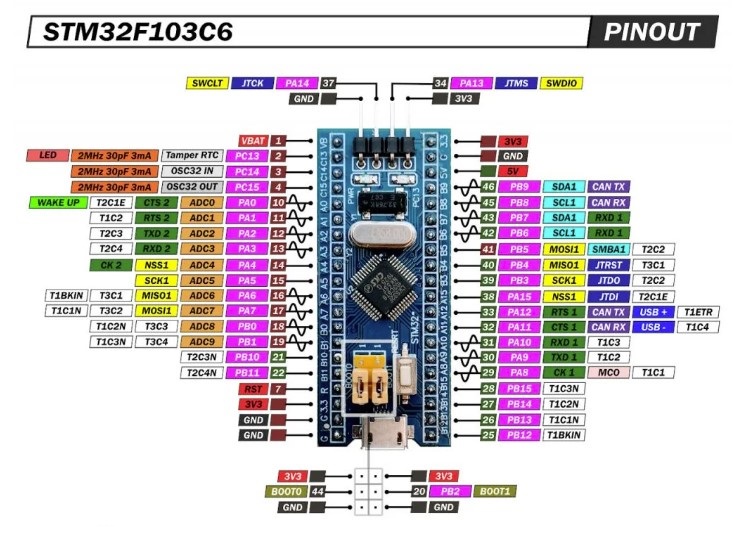

4, MCU pin interface: Lead all I / O port pins, easy to connect to peripherals.

5, 5V and 3.3V power input and output: commonly used in external power supply or with other modules for common ground treatment.

Description of other devices:

1, LED (Pwr): Power indicator status, can check whether the power supply is stable.

2 User Lead (PC13): To facilitate testing the I/O output or indicating that the program is working.

3 jump start, select the programming mode: (1, user flash memory 2, SRAM 3, system memory)

4, Reset button: Reset the chip for user program.

Crystal 5, 8m: The frequency can be set so that the system clocks at 72MHz.

Specs

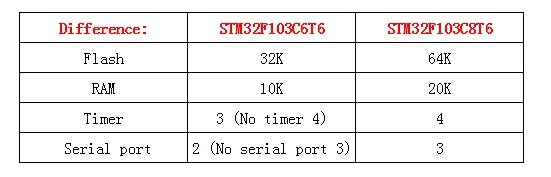

With respect to the STM32F103C6T6, It has less Flash and SRAM, one less timer, and one less Serial.

• ARM 32-bit Cortex™-M3 CPU Core

  • 72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access

  • Single-cycle multiplication and hardware division

• Memories

  • 16 or 32 Kbytes of Flash memory

  • 6 or 10 Kbytes of SRAM

• Clock, reset and supply management

  • 2.0 to 3.6 V application supply and I/Os

  • POR, PDR, and programmable voltage detector (PVD)

  • 4-to-16 MHz crystal oscillator

  • Internal 8 MHz factory-trimmed RC

  • Internal 40 kHz RC

  • PLL for CPU clock

  • 32 kHz oscillator for RTC with calibration

• Low power

  • Sleep, Stop and Standby modes

  • VBAT supply for RTC and backup registers

• 2 x 12-bit, 1 μs A/D converters (up to 16 channels)

  • Conversion range: 0 to 3.6 V

  • Dual-sample and hold capability

  • Temperature sensor

• DMA

  • 7-channel DMA controller

  • Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs

• Up to 51 fast I/O ports

  • 26/37/51 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant

• Debug mode

  • Serial wire debug (SWD) & JTAG interfaces

• 6 timers

  • Two 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

  • 16-bit, motor control PWM timer with dead-time generation and emergency stop

  • 2 watchdog timers (Independent and Window)

  • SysTick timer 24-bit downcounter

• 6 communication interfaces

  • 1 x I2C interface (SMBus/PMBus)

  • 2 × USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)

  • 1 × SPI (18 Mbit/s)

  • CAN interface (2.0B Active)

  • USB 2.0 full-speed interface

• CRC calculation unit, 96-bit unique ID
