| รหัสสินค้า | SKU-02368 |
| หมวดหมู่ | โมดูล USB Converter |
| ราคา | 10.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 2 ก.ค. 2566 |
| อัพเดทล่าสุด | 2 ก.ค. 2566 |
| จำนวน | ชิ้น |

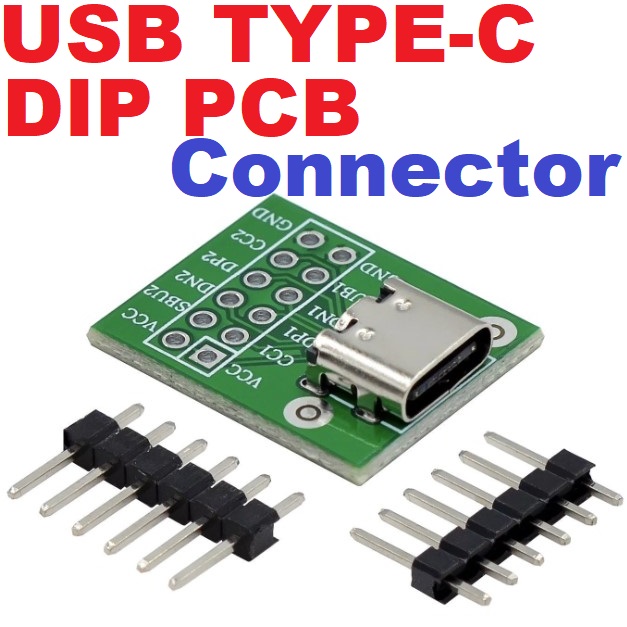

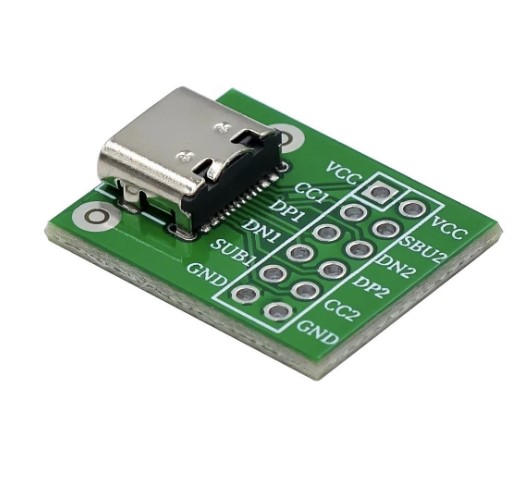

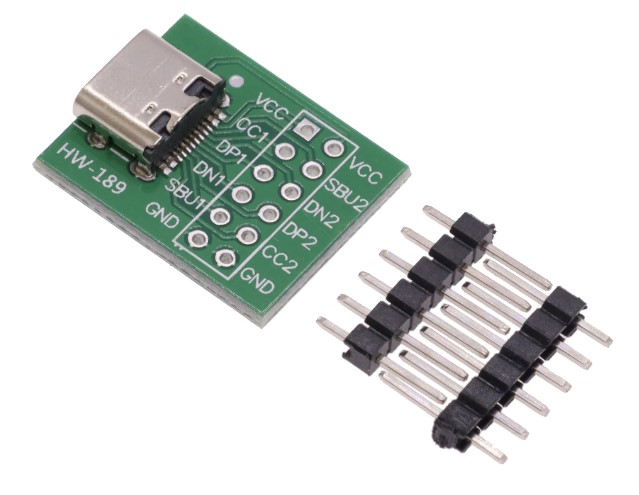

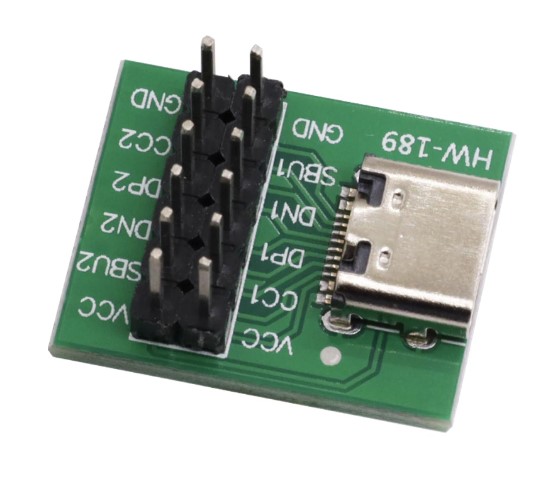

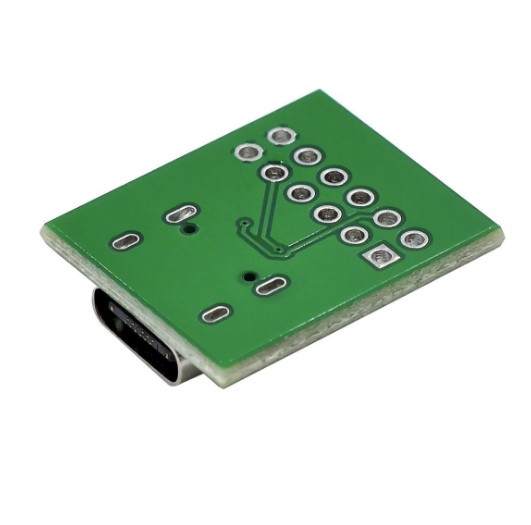

Type-C products Adapter mother base, which leads all pin pins to Type-C base to realize row/mother row connection function.

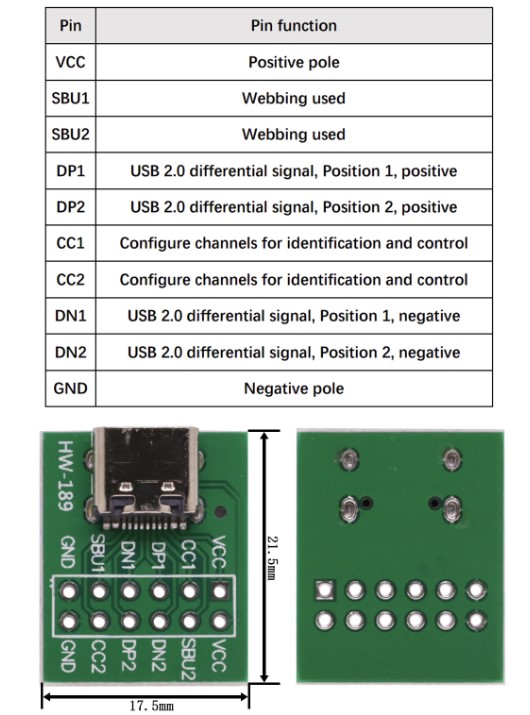

Size 17.6*21.5 mm.
Pin-pin function
VCC, the positive pole of the power supply
SBU1 Sideband Applications
SBU2 Sideband Applications
DP1 USB 2.0 Differential, position 1, positive
DP2 USB 2.0 Differential, position 2, positive
CC1 configures channels for identification and control.
CC2 configures channels for identification and control.
DN1 USB 2.0 Differential, position 1, negative
DN2 USB 2.0 Differential, position 2, negative
GND negative power supply pole
