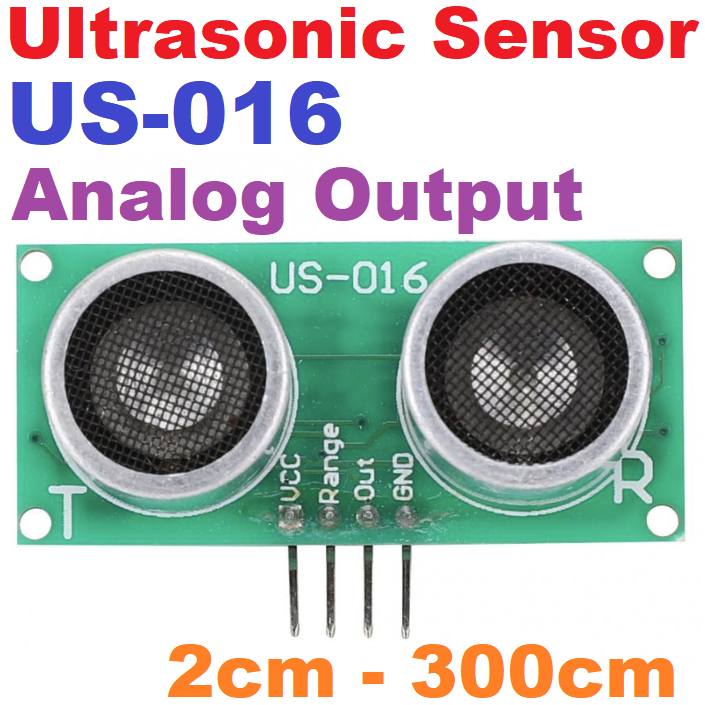

US-016 Ultrasonic Sensor Analog Voltage Output High Exactness Ultrasonic Distance Rangefinder DC 5V 2cm-300cm

Feature:
1. This is an analog output of ultrasonic ranging module, output analog voltage and distance value is proportional.
2. Easy to connect with other systems, ensuring stable and reliable work.
3. Different range can be set according to different application scenarios.
4. This is a low cost but high quality distance sensor module with small power consumption.
5. Easy for installation, reliable quality ensuring stable and excellent performance.

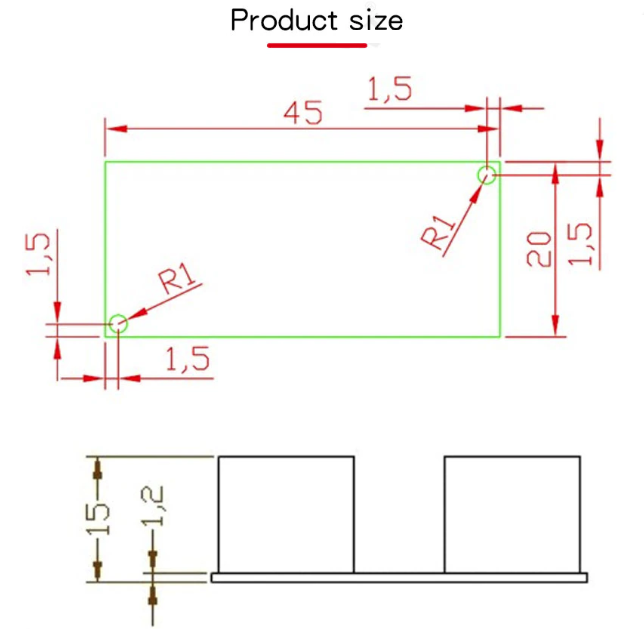

Specification:
Condition: 100% Brand New
Item Type: Ultrasonic Module
Material: Semi-conductor

Electric Specification：US-016 Ultrasonic Distance Measuring Module
Working Voltage：DC 5V
Working Current：3.8mA
Working Temperature：0~+70℃
Output Mode ：Analog Voltage（0~Vcc）
Induction Angle：<15°
Detecting Distance：2cm-300cm/0.8in-9.8ft
Detecting Accuracy：0.3cm+1%
Resolution：1mm

Pins:
VCC pin: connect to VCC power (dc 5V).
Range pin: set the range pin (range). When the module is powered on, the pin is high power, and the range is 3 meters/9.8ft. When the module is powered up, the pin is at a low power level, and the measuring range is 1m / 3.2ft. This pin has a pull resistance inside. When the range pin is suspended, the measuring range is 3 meters / 9.8ft.
Out pin: analog voltage output pin (Out), analog voltage is directly proportional to the measured distance, and the output range is 0~Vcc.
GND pin: connect to external circuit ground.

Package List:
1 x Ultrasonic Module

How Ranging Works

After the module is powered on, the system first judges the input level of the Range pin, and sets different ranges according to the state of the input level

When the Range pin is high level, the range is 3m, when the Range pin is low level, the range is 1m.

Then, the system starts continuous distance measurement, and at the same time outputs the distance measurement result on the Out pin through the analog voltage. when the distance changes

The analog voltage will also change accordingly.

The analog voltage is proportional to the measurement distance, and the output range of the analog voltage is 0~Vcc.

When the system range is 1m, the measurement distance is: L = 1024*Vout/Vcc (mm). When the output voltage is 0V corresponding distance

is 0m, the output Vcc corresponds to 1.024m.

When the system range is 3m, the measurement distance is: L = 3096*Vout/Vcc (mm). When the output voltage is 0V corresponding distance

is 0m, the corresponding output Vcc is 3.072m.

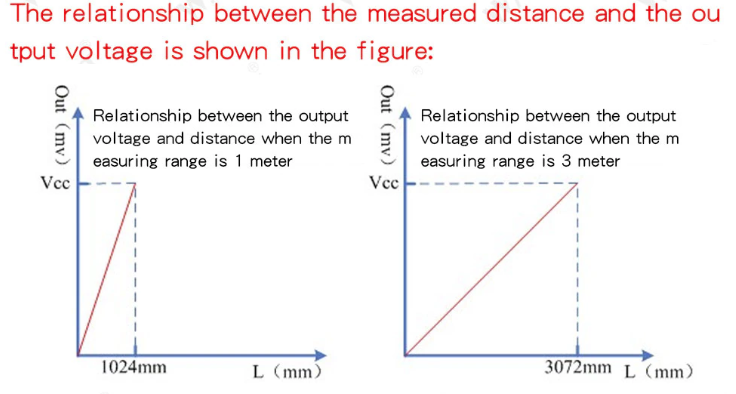

The relationship between measurement distance and output voltage is shown in Figure 1:

Figure 1 Relationship between measurement distance and output voltage

Programming suggestion when the measuring range is 1m
Note: When powering on, the Range pin needs to be set to low level.

During measurement, an ADC can be used to sample the output voltage of the Out pin, and the measurement distance can be converted according to the ADC value, which can be used as

Formula calculation:

L = (A*1024/2^ n )* (Vref/Vcc), where A is the value of the ADC, n is the number of bits of the ADC, and Vref is the parameter of the ADC

Voltage, Vcc is the power supply voltage of US-016.

For example, when a 10-bit ADC is used for sampling, and the reference voltage of the ADC is VCC, the measurement distance can be expressed by the value of the ADC.

Example: When the ADC sampling value is 345, the measurement distance is 345mm.

When the range is 1m, the Arduino ranging routine:
