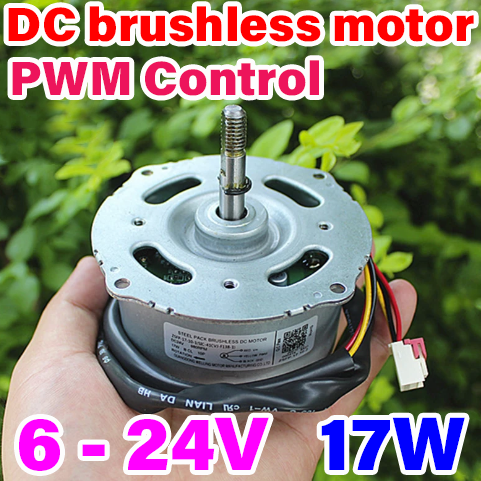

มอเตอร์บัสเลส DC 6V 12V 24V 17W 6500rpm Double ball bearing inner rotor PWM speed regulation brushless motor For Fan

24V DC brushless fan motor,

Inner rotor brushless motor,

Front and rear ball bearings.

Motor nominal voltage 24V,

Rated power 17w,

Rated load speed 980 rpm,

The actual test can run from 5 to 24V,

The motor supports PWM signal speed regulation,

The motor starts slowly,

The impact is small,

The axis rotates clockwise when looking at itself during operation.

The motor test speed and no-load current are as follows,

The nominal load speed with rated power is 980 rpm,

However, the no-load test speed is very high,

Therefore, the speed is also very high under light load,

The test parameters are for reference only.

5V, no-load maximum speed: 600 rpm, no-load current: 0.28a.

12V, no-load maximum speed: 2600 rpm, no-load current: 0.5A.

24V, no-load maximum speed: 6500rpm, no-load current: 0.6A.

Weight: 530g,

The wire length of the motor is 65cm.

Simple wiring can run at the highest speed,
and the yellow wire connects a 10K resistor to the positive pole of the power supply.
