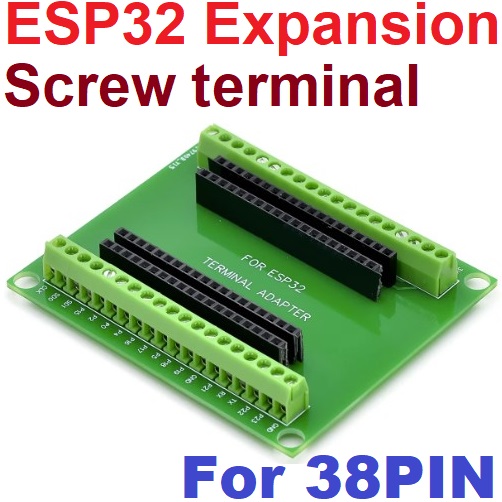

ESP32 Expansion Breakout Board screw terminal for 38PIN ESP-WROOM-32 Microcontroller Development Board

The module is safe, reliable and expandable for a wide range of applications.

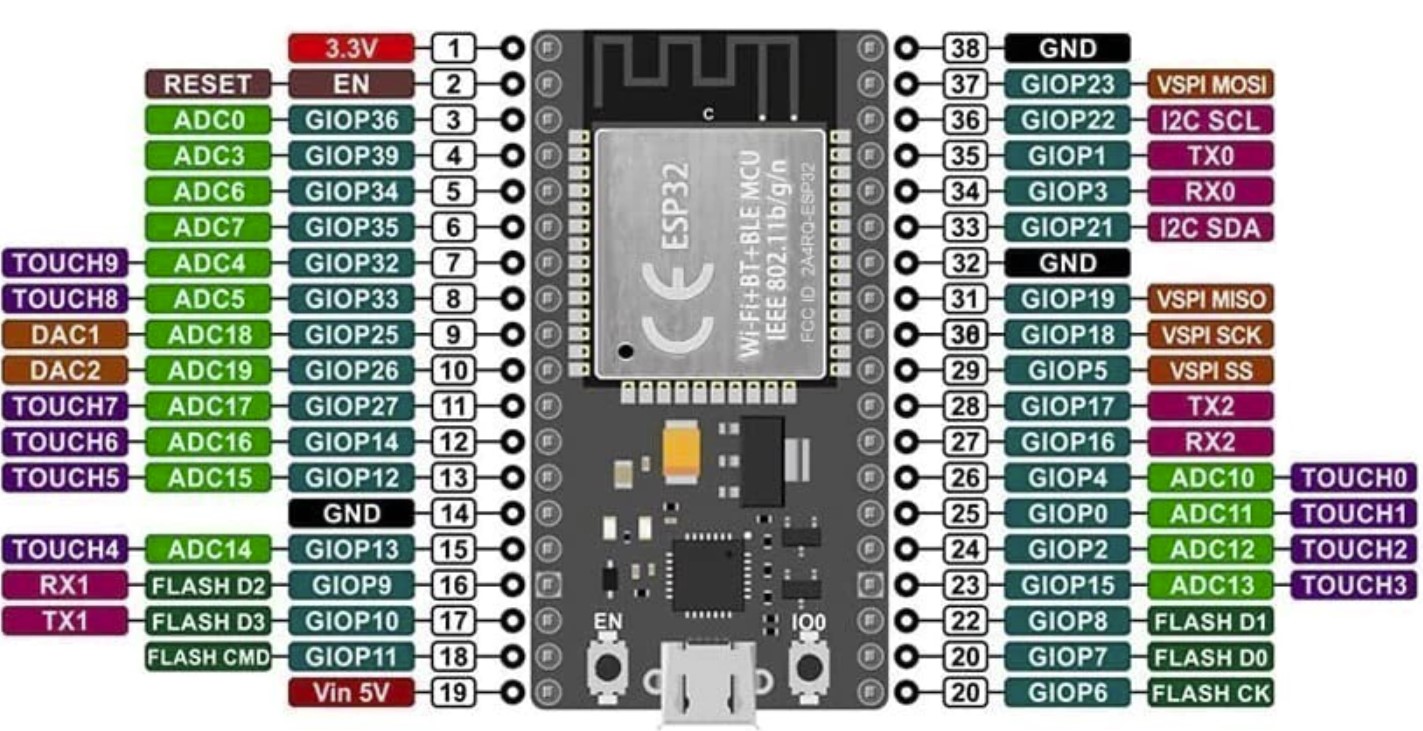

The module has 38 pins and has more functions than the 30-pin module. Narrow width, compatible with most circuit boards.

Support Lua procedures, easy to develop. AP, STA, and AP + STA modes are supported.

The board uses a 2.4GHz dual mode Wi-Fi and Bluetooth chip ESP-Wroom-32 and 40nm low power technology.

1.ESP32 Isolated Cable GPIO 1-in 2-38pin Narrow ESP32 ESP32 ESP-Wroom-32 Microcontroller Development Board

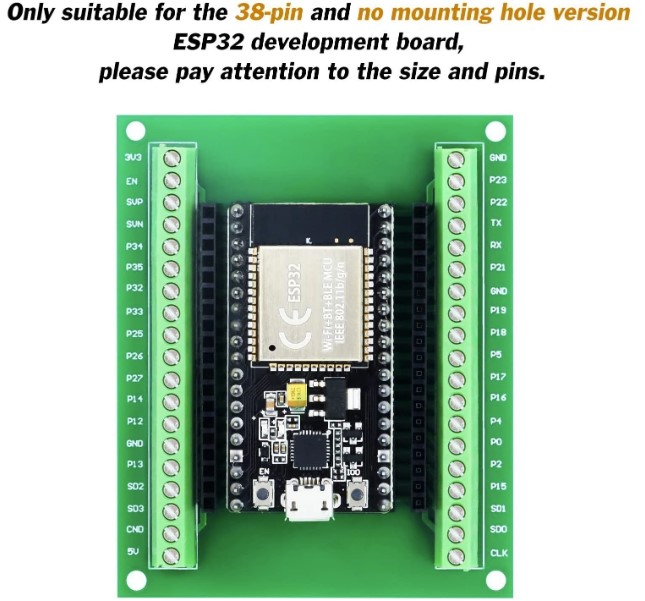

IMPORTANT: Compatible with 38-PIN Narrow and no mounting holes version of the ESP32 development board, can not be used with other models.

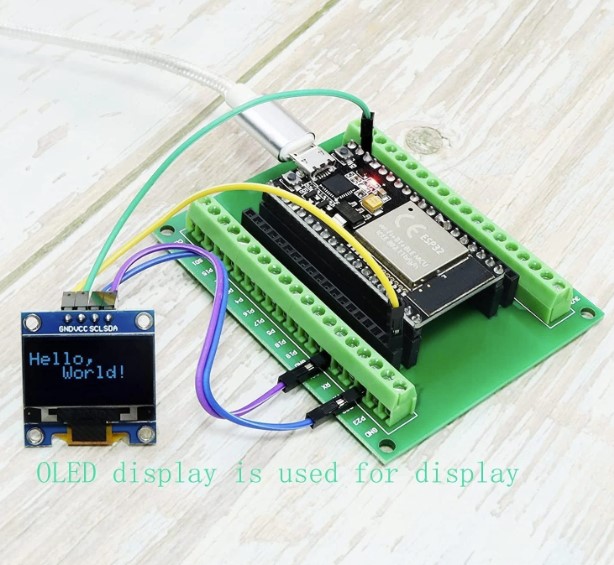

GPIO 1 INT0 2: The splitter extends the GPI0 pin of the ESP32 development board 2, making it easy for users to reuse all pins for smart home projects, a good alternative to bread board.

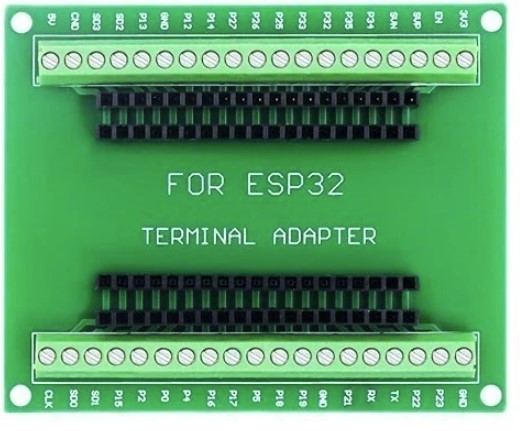

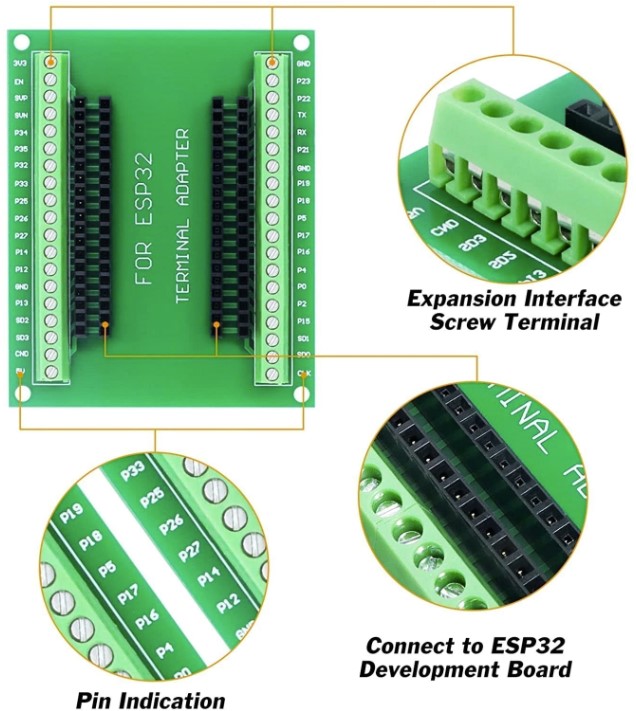

2. Connection type: screw terminal box connection Just select them for your purpose.

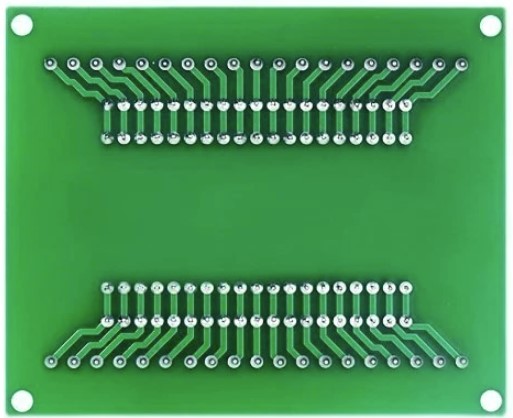

Double-layer PCB: extend board double-layer. Pin attached on both sides. Therefore, the circuit is stable and reliable, and there will be no bad circuit contact and unstable signal.

Improved version: Compared to the previous version, the version is fully furnished. You don't need to weld the parts yourself, so it's very easy to use.
