บอร์ดขยายขา IO Adapter for Nextion Enhanced HMI UART USART Smart LCD Display Module GPIOs I/O Expansion

overview

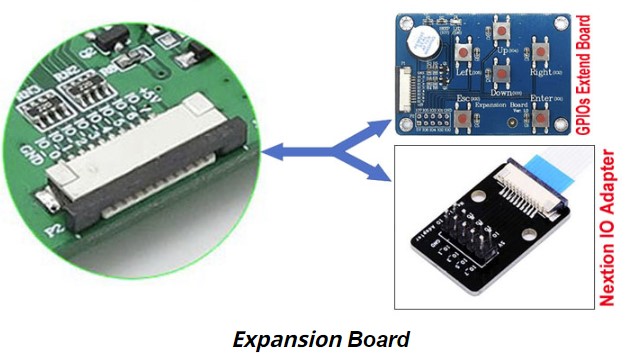

Nextion IO Adapters are specially made to work with Nextion Enhanced HMI Display Series.

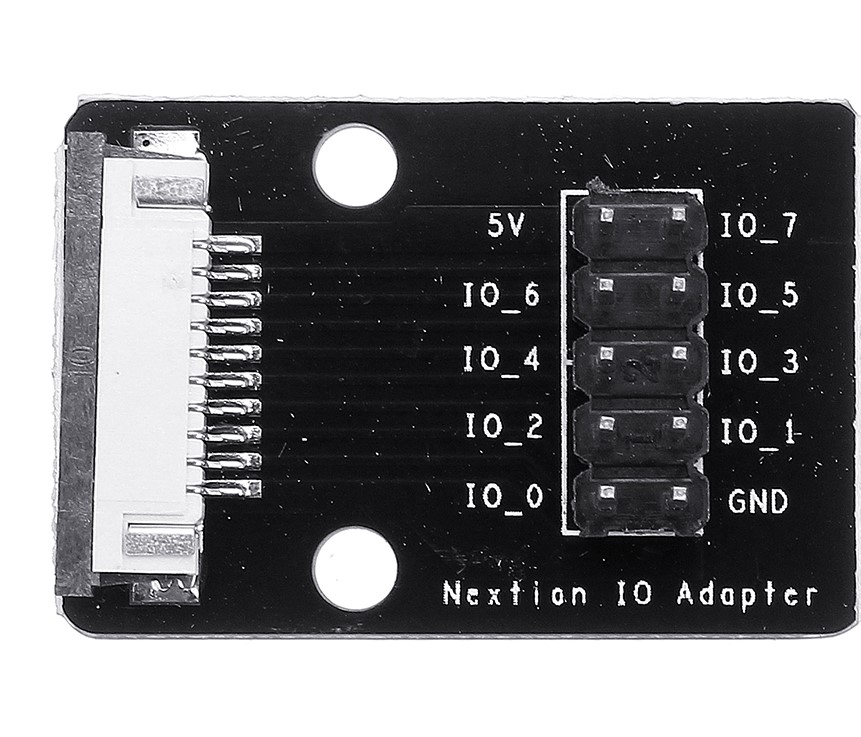

The small board pins out the GPIO of the Nextion Enhanced display with a 2.54-inch header, which allows users to access the GPIO more conveniently.

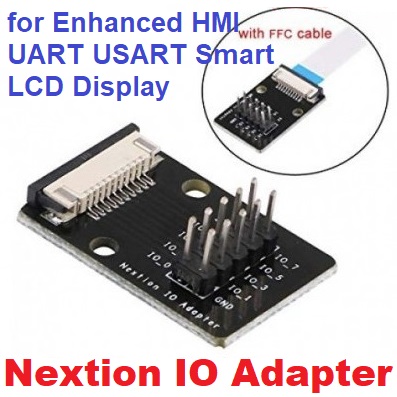

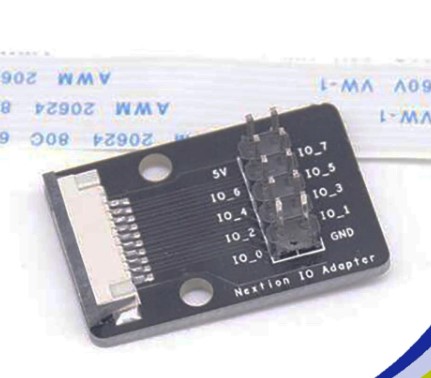

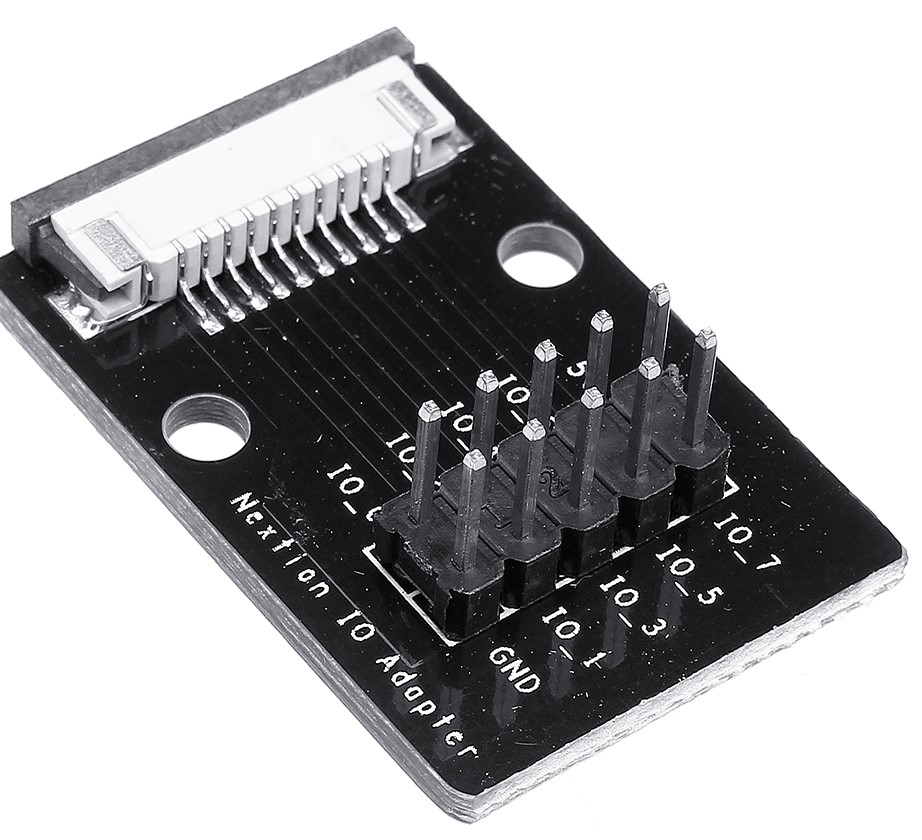

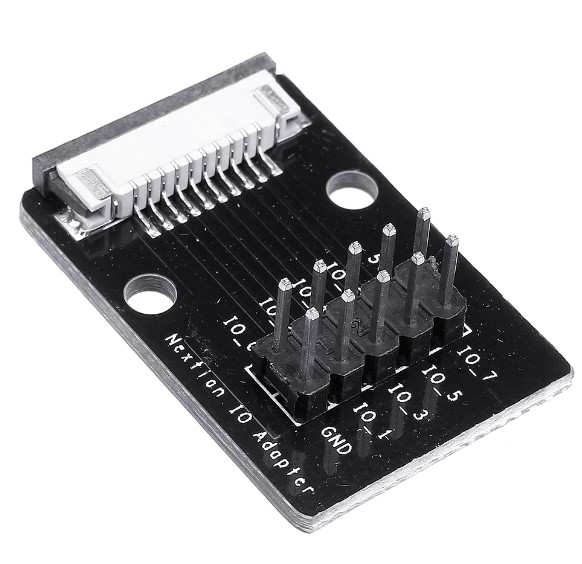

Nextion IO Adapter

Input Output Adapter (Breakout board) for Nextion Enhanced HMI Display Series

The Nextion IO Adapter or Nextion Enhanced breakout board is made specially to work with Nextion Enhanced HMI Display Series.

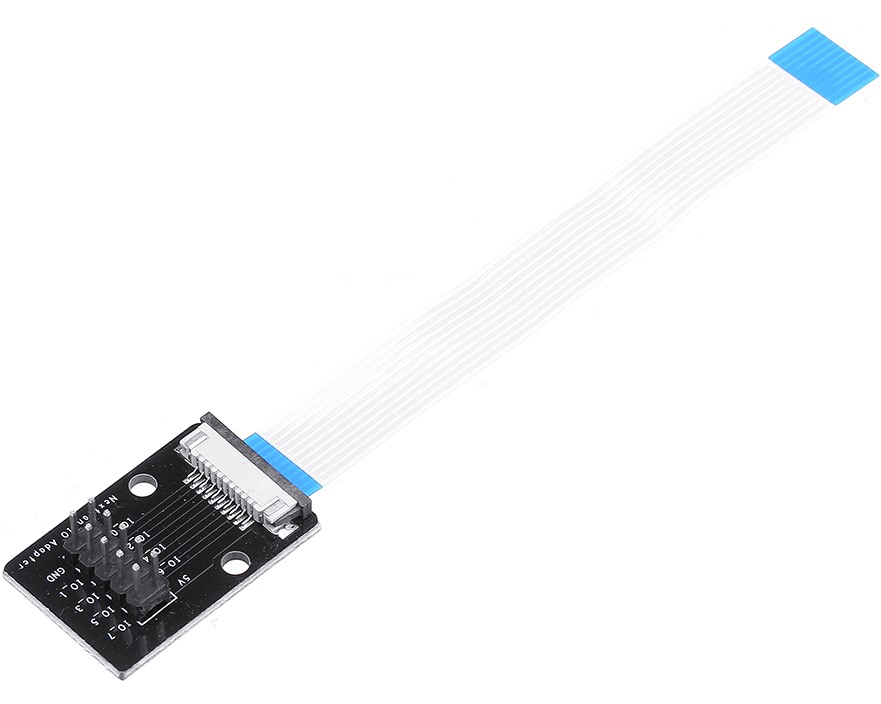

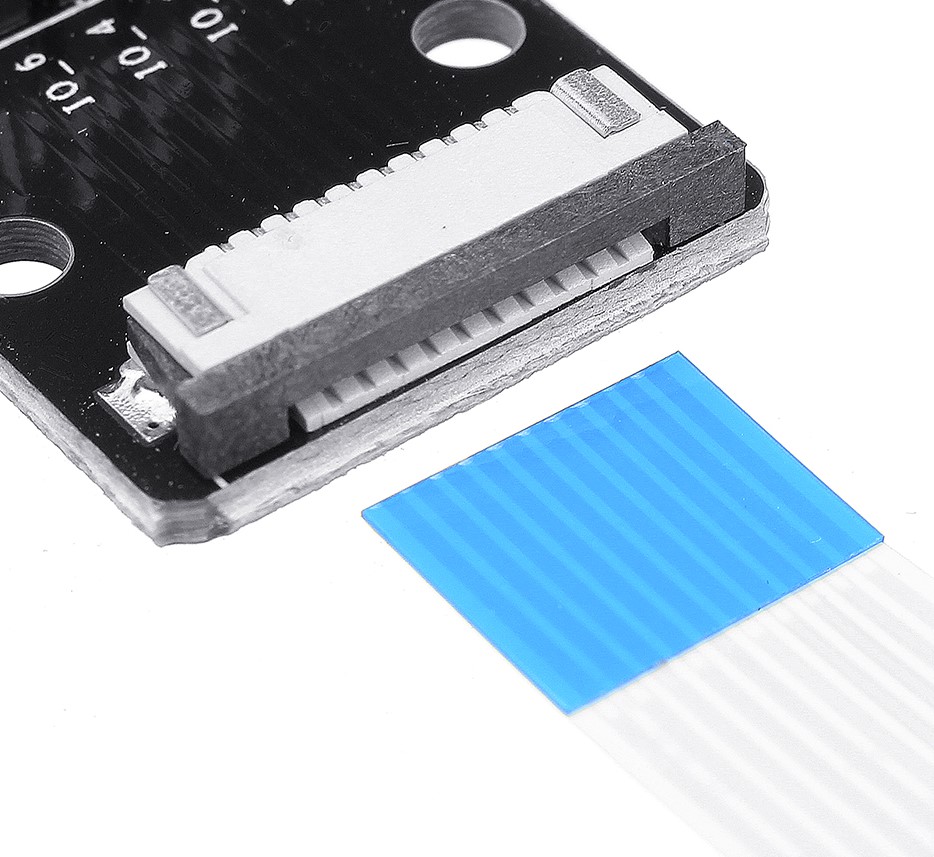

This small board pins out GPIOs of Nextion Enhanced display to 2.54 inch headers, which allow users to access the GPIOs more conveniently. FCC cable is also provided along with this adapter.

Additional Information For Nextion I/O Adapter

• Module Type : No

• Weight : 10 g

• Model : IM161123001

• Board Size : 3 cm * 2 cm

• Version : 1.0

• Operation Level : Digital 5 Volts
