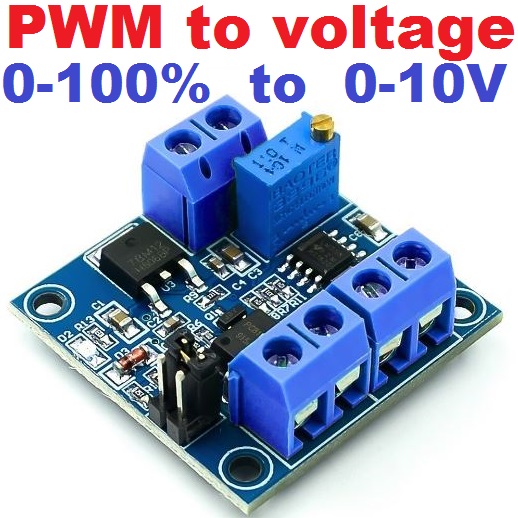

PWM to voltage module 0%-100% PWM is converted to 0-10V

This is a pulse width (PWM) to voltage converter. It converts the PWM digital signals into 0 to 10V analog signals. It can be used as signal interface switching for PLC or other industrial control boards.

The output voltage is proportional to the duty ratio of the PWM. You can select the pulse width signal voltage level using a jumper. The PWM input level voltage can be selected from 4,5V to 10V (micro-controller operating level) or from 12V to 24V (PLC signal voltage operating level).

• The peak value is 4.5V to 10V, and the jumper is inserted at 5V. This type of level signal is mainly for the interface of the 5V CPU of the conventional industrial control card (such as MACH3 board).
• Easy to operate, can be fine-tuned by potentiometer
• Select the PWM signal input level range by short circuit
• The module is small, easy to carry and easy to use
• Module working voltage: DC12V-30V (power supply requirement: greater than 100MA)
• PWM signal receiving frequency range: 1KHZ-3KHZ
• Peak 12 to 24V level, jump pin inserted at 24V. This type of level signal is mainly for the conventional PLC interface.
• Conversion range: 0%-100% PWM conversion to 0-10V voltage
• Allowable error: 5%
• Size：33.14mm*33.02mm
