1. Module Feature: Isolation Booster
2. Ectifier System: Synchronous Rectifier
3. Input Voltage: 4.3V-32V
4. Output Voltage: 5V-52V
5. Line current: 4A (Max)
6 .Transfer: 94% (Max) Normal efficiency for85 % 7.Switching
frequency: 400KHz 8.Output
ripple:50mV 9.Load
regulation: ±0.5%
10.Voltage : ±0.5% 11.Operating
temperature: -40° ~ + 85°
12. Size: 6.98 cm. * 3.80 cm.

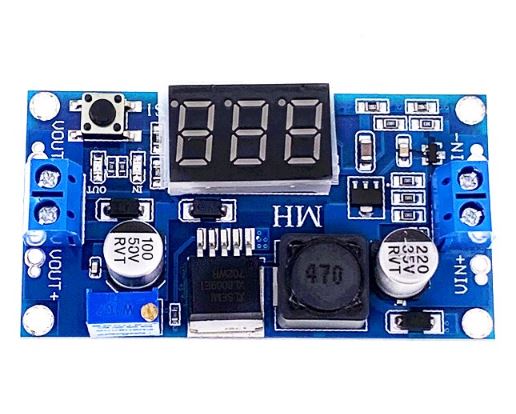

Key function:
1. กดแบบสั้น: ตัวเลือกการแสดงผลอินพุต/เอาต์พุต
2. กดปานกลาง: ป้อนสถานะการปรับ เพิ่มหรือลดออฟเซ็ต (ค่าเริ่มต้นคือ 0) เมื่อใช้แรงดันไฟฟ้าที่ไม่ถูกต้อง สั้นตามระเบียบ กดแบบยาว หรือ กดแบบยาวเพื่อย้อนกลับ
3. กด: สถานะการสิ้นเปลืองพลังงานต่ำ หลอดดิจิตอล และไฟดับ การทำงานปกติของโมดูล คลิกปุ่มอีกครั้งเพื่อกู้คืน จอแสดงผลปกติ
ทิศทางการปรับแรงดันขาออก:
หมุนตามเข็มนาฬิกา ----- เพิ่มแรงดัน
หมุนทวนเข็มนาฬิกา ----- ลดแรงดัน
1) Short press: input/output display options
2) Medium press: Enter the adjustment state. Increase or decrease the offset (default is 0) when the wrong voltage is used. Short according to the regulation, long press or long press to return
3). Press: the state of low power consumption, the digital tube and the lights are out, the normal work of the module. Click the button again to restore. normal display
Clockwise adjust the output voltage:
clockwise ----- increase the voltage
Counterclockwise----lower voltage
