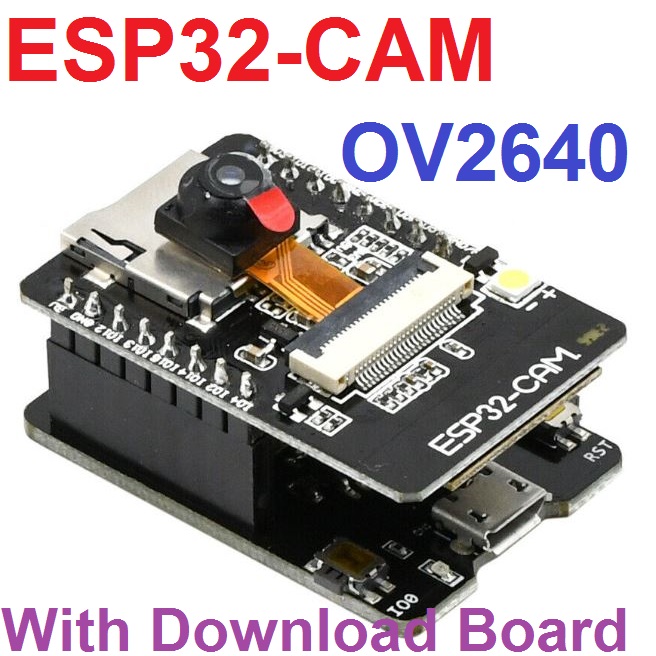

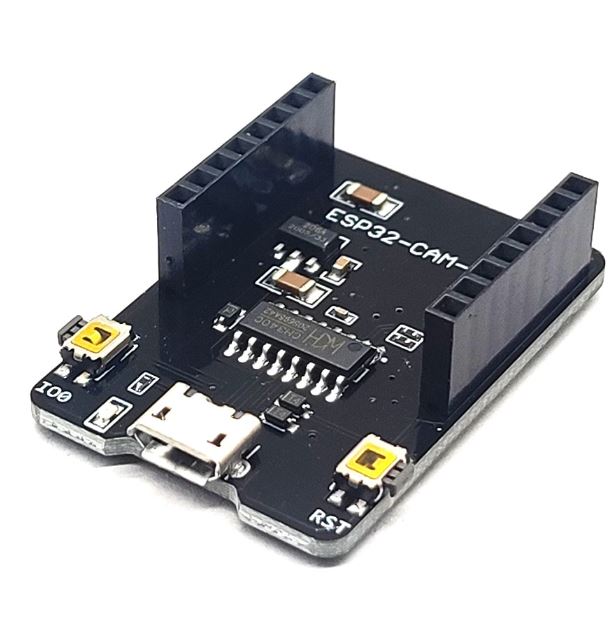

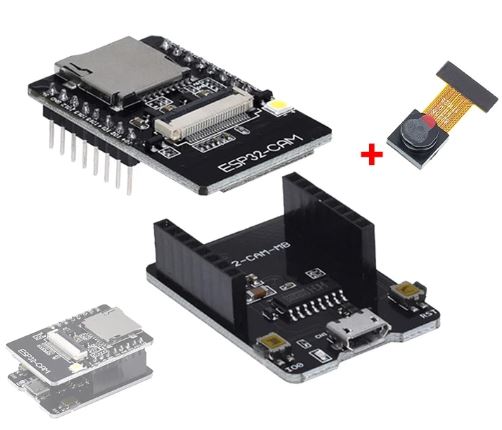

ESP32-CAM OV2640 2MP with Download Module KIT Camera WiFi+Bluetooth

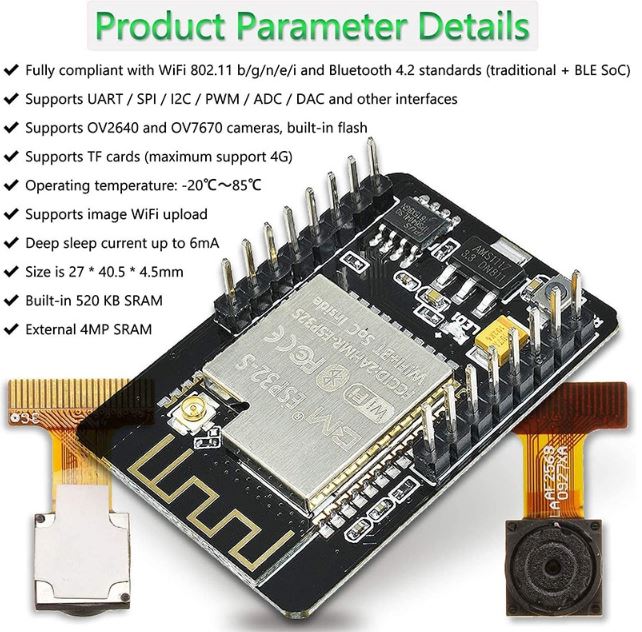

Features:

Using low-power dual-core 32-bit CPU, which can be used as an application processor.

The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS

Built-in 520 KB SRAM, external 8MB PSRAM

Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces

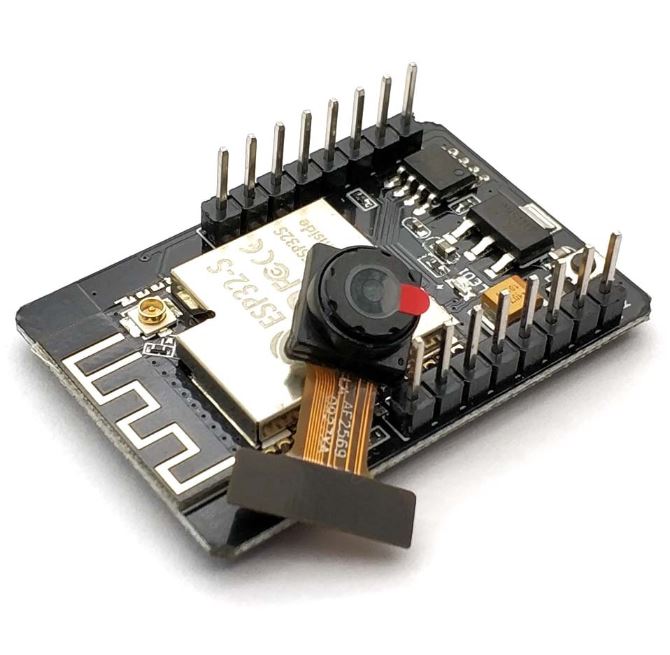

Support OV2640 and OV7670 cameras, built-in flash

Support picture WiFI upload

Support multiple sleep modes and STA/AP/STA+AP working mode

Lwip and FreeRTOS embedded

Support Smart Config/AirKiss one-click network configuration

Support secondary development

Parameters:

Working voltage: 4.75-5.25V

SPIFlash: Default 32Mbit

RAM: Internal 520KB + external 8MB PSRAM

Wi-Fi: 802.11b/g/n/e/i

Bluetooth: Bluetooth 4.2BR/EDR and BLE standard

Support interface (2Mbps): UART, SPI, I2C, PWM

Support TF card: maximum support 4G

IO port: 9

Serial port rate: default 115200bps

Spectrum range: 2400 ~2483.5MHz

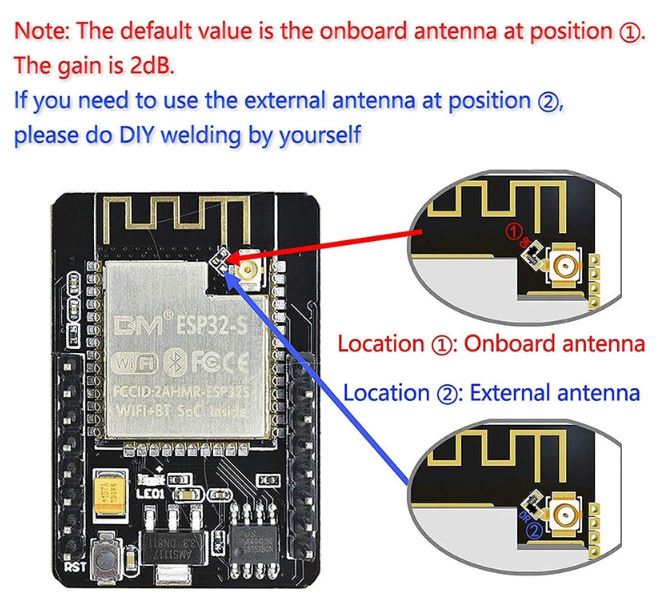

Antenna form: onboard PCB antenna, gain 2dBi

Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
