180Kg Load Cell Module Weight Sensor Electronic Scale Aluminum Alloy sensor weighing frame bracket XH2.54-4p ชั่งน้ำหนัก

สินค้าที่เกี่ยวข้อง

The 180kg load cell weight sensor + mica scale frame is often used to make electronic scales, combined with microcontrollers to make product classification models, automatic cash register models... Sensors can measure Maximum object weight 180kg, sensor made of metal with compact design, easy installation, high accuracy. The mica scale frame is compact, light weight, easy to use and carry. The structure is sturdy enough to ensure maximum load.

Specifications

• Product set includes:
  • Loadcell module 180kg (not including HX711 module)
  • Mica frame + pre-installed screws
• Load capacity: max 180kg
• Error: 0.02% FS
• Sensitivity 1.0 ± 0.1mv/v
• Latency: 0.02%
• Input impedance: 405 ± 10Ω
• Output impedance: 350 ± 3Ω
• Insulation resistance: ≥ 5000MΩ (100VDC)
• Working voltage: 5VDC ~ 12VDC
• Temperature compensation range: 10°C ～ + 40°C
• Operating temperature range: -20°C + 60°C
• Safe overload range: 120%
• Overload limit range: 150%
• Cord length: 150cm
• Weight: 1068g
• Connect to HX711 module:
  • White E+
  • Black : E-
  • Green : A-
  • Red : A+

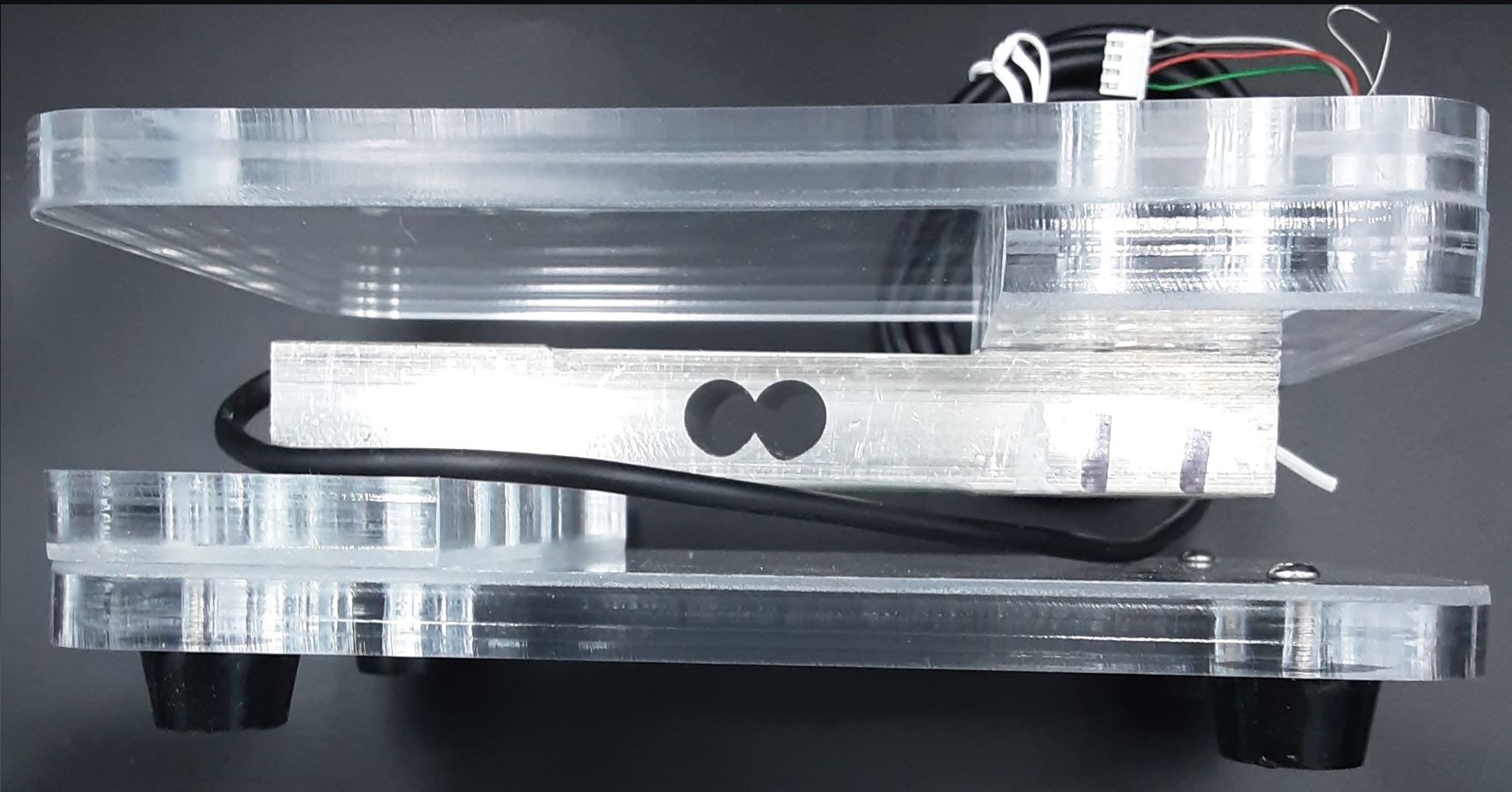

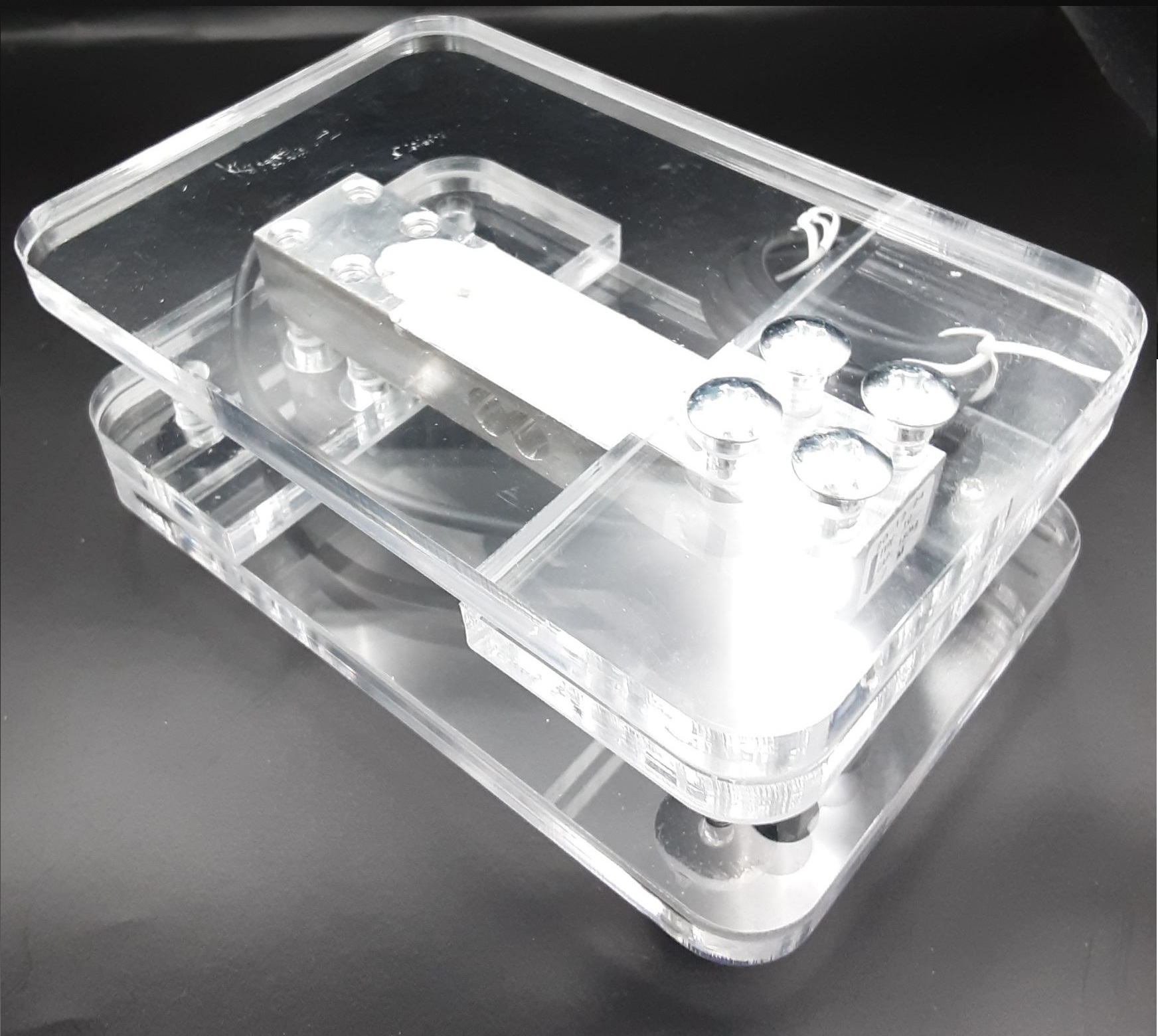

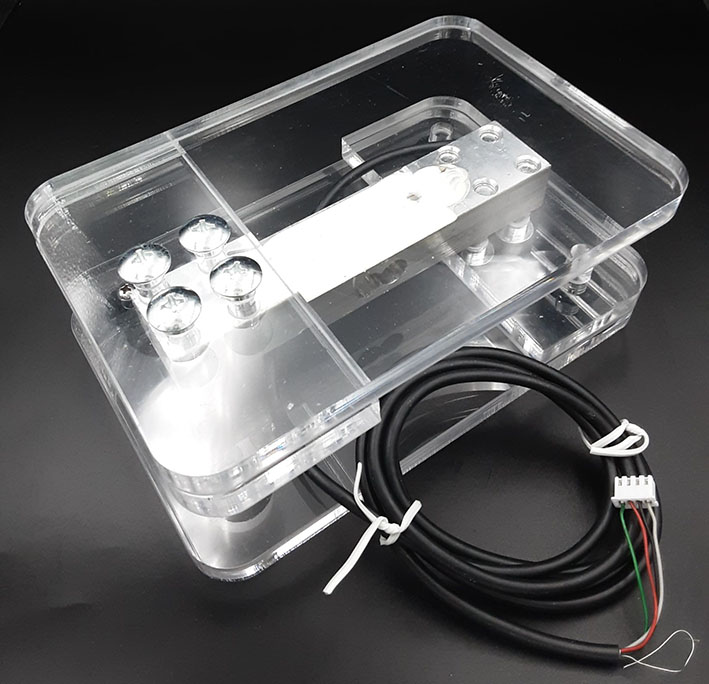

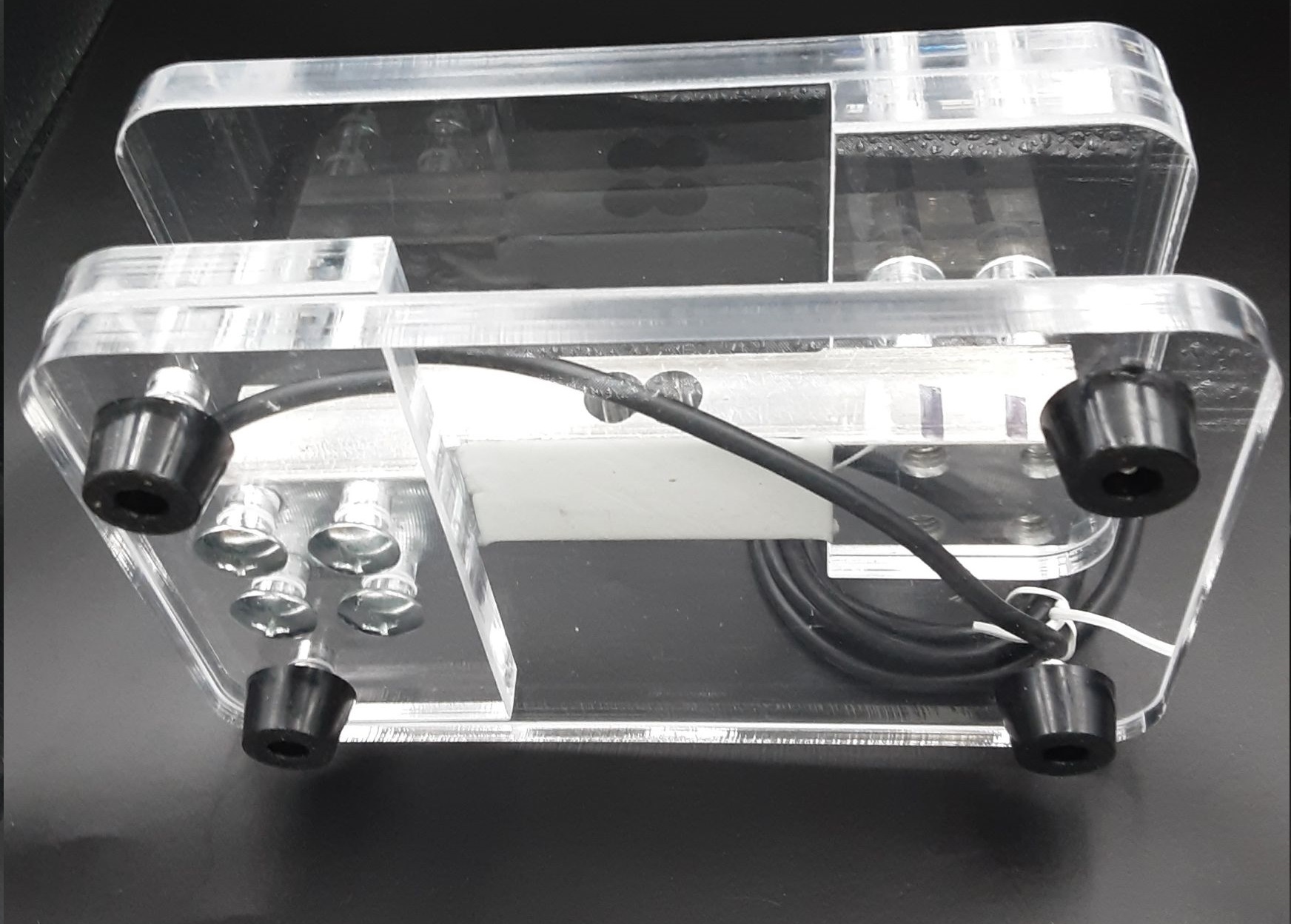

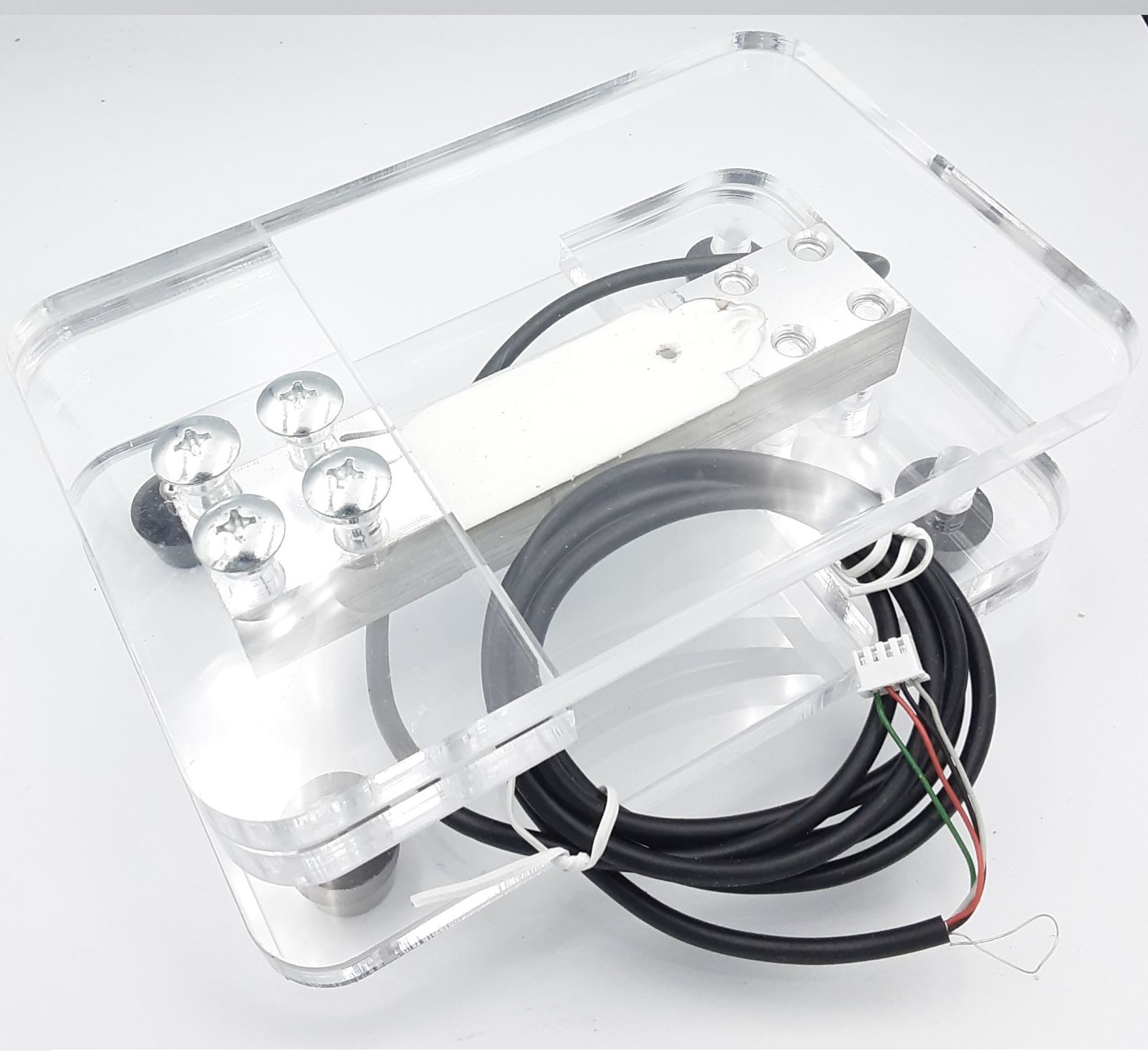

180kg square weighing frame introduction:

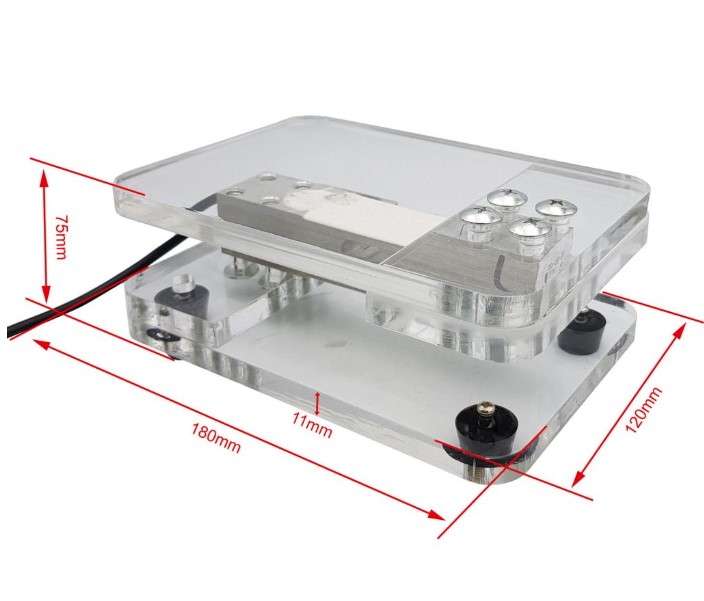

Bracket size: length 180mm width 120mm height 80mm

 Acrylic thickness: 12mm

Sensor cable length: about 140cm

 The sensor interface on the frame is: XH2.54-4P plug

 Weighing frame and HX711 module connection method:
white to E+
black to E-
green to A-
red to A+
