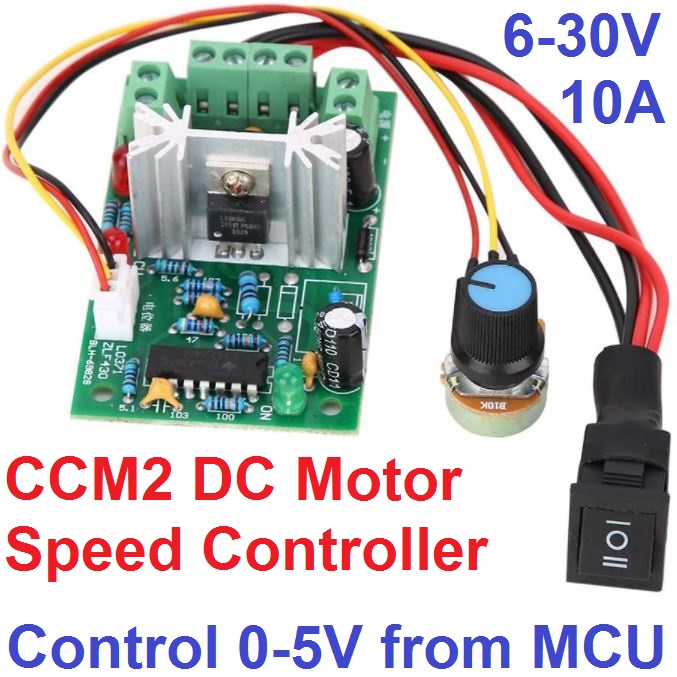

โมดูลคุมความเร็วมอเตอร์ 6-30V 10A 120W PWM DC motor forward and reverse switch CCM2 DC controller

Product Description:

(1) Working voltage: DC6.5V-DC30V
(2) Control current: rated 6A (high current 10A)
(3) Operating power: up to 200W
(4) PWM duty cycle: 0%-100%
(5) PWM frequency : 16khz
(6) Control voltage: 0-5V (voltage control type, you can directly control the speed of the motor by inputting 0-5V signal from PLC or microcontroller)

Size: length and width 73.5mm*45.5mm height about 27mm

According to the hole center distance: 63.5mm*36.5mm

Positioning hole: diameter 3.5mm

Net weight: 60

All products are equipped with external speed control knob.

Forward and reverse control, (forward stop and reverse) products are equipped with forward and reverse switches.

The original chip is used, and the filter capacitor uses a monolithic capacitor, and the circuit is stable and reliable.

The speed governor uses PWM speed control technology, which has the characteristics of high conversion efficiency, wide speed control range and stable performance. The speed governors all use imported STMicroelectronics original chips, which have been tested for voltage, current, and functions before leaving the factory, and the circuit is stable and reliable.

Wiring Instructions:

1. Connect the power cord to ensure that the forward and reverse switches are in the middle zero position, connect the DC power supply, ensure that the DC power supply voltage range is greater than 10V and less than 36V, and ensure that the output power of the power supply meets the needs of the motor. Do not reverse the positive and negative terminals of the DC power supply, otherwise The governor may be damaged.

2. Connect the motor, the motor wire can be positive or negative.

3. Adjust the switch, the forward and reverse switches are used to control the direction of the motor speed. When the switch is at the zero position, the motor stops.

4. Potentiometer knob, adjusting the potentiometer knob can change the output duty ratio of the governor and the motor speed.
