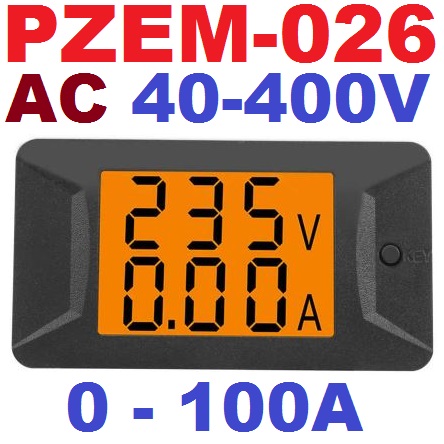

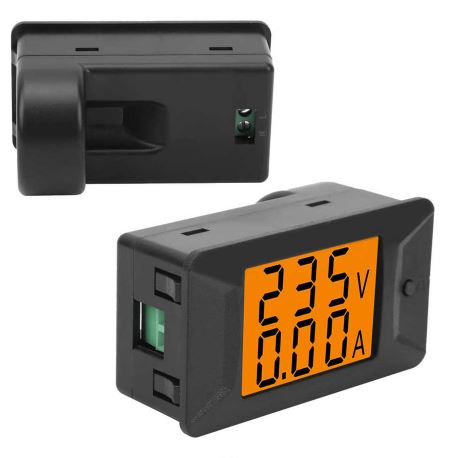

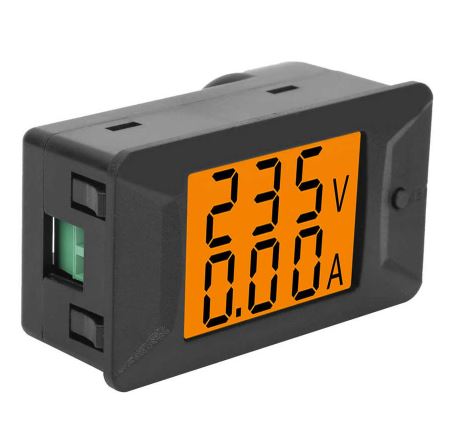

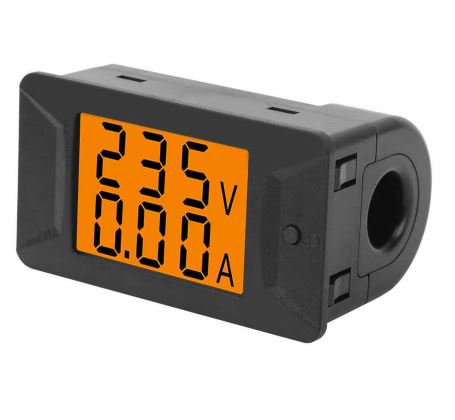

PZEM-026 AC 40-400V 100A Single Phase Digital Panel Voltmeter Ammeter High Voltage Current Meter Electrical Instrument

Feature:

Specification:

Condition: 100% Brand New
Item Type: Voltage Meter
Material: ABS
Model: PZEM-026
Voltage measurement range: AC 40-400V
Display format: when <100V, display such as: 80.0V; when display ≥100V, display such as: 220V
Accuracy: ±1%
Current measurement range: AC 0-100A
Display format: when <10A, display such as 1.00A; when <100A, display such as 10.0A; when ≥100A, display such as 100A
Starting current: 0.02A
Accuracy: ±1%

Error Adjustment:
The product has been 100% calibrated before leaving the factory, and the user can manually adjust the error, as shown below:
Step 1: Long press the button (about 3 seconds) until the numbers on the screen start to flash, then release the button
Step 2: The number flashing indicates that it has entered the "error adjustment" state, the numbers flashing cyclically, the sequence is: high voltage-medium voltage-low voltage-decimal point voltage-high current-medium current-low current-
The current decimal place; flashing indicates the current adjustable number, short press the button to adjust the integer (number 0-9 cycle, decimal point shift)
Step 3: After adjustment, please press and hold the button (about 3 seconds), the screen will display "PASS" and return to the normal interface, indicating that the adjustment is successful

Package List:

1 x Voltage Meter

1 x Manual
