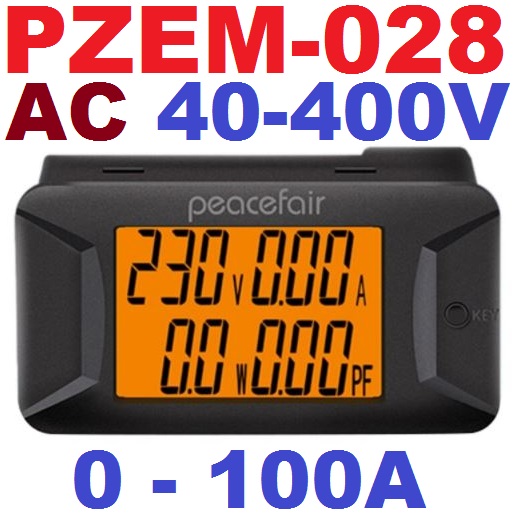

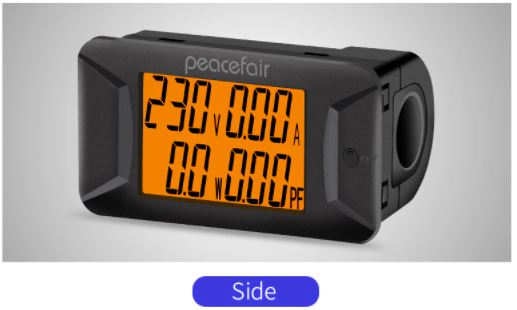

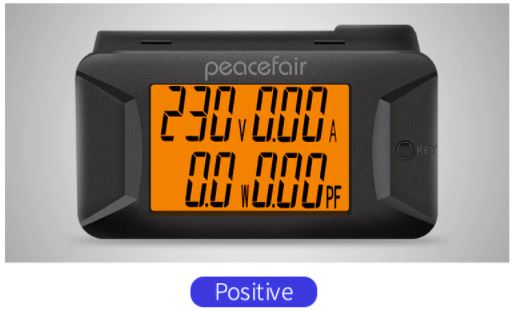

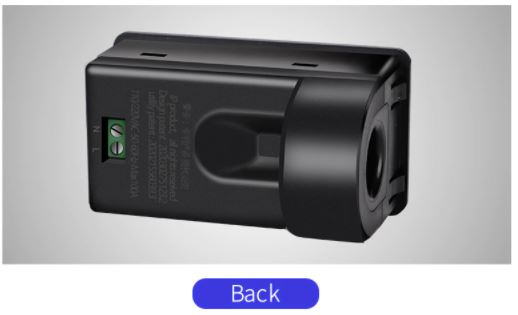

PZEM-028 AC 40-400V 0-100A Digital Multimeter Voltage Current Power Meter Electrical Instrument Power Factor Meter

4. Power factor

Measurement range: 0～1

Display format: such as：1.00PF

Other Function

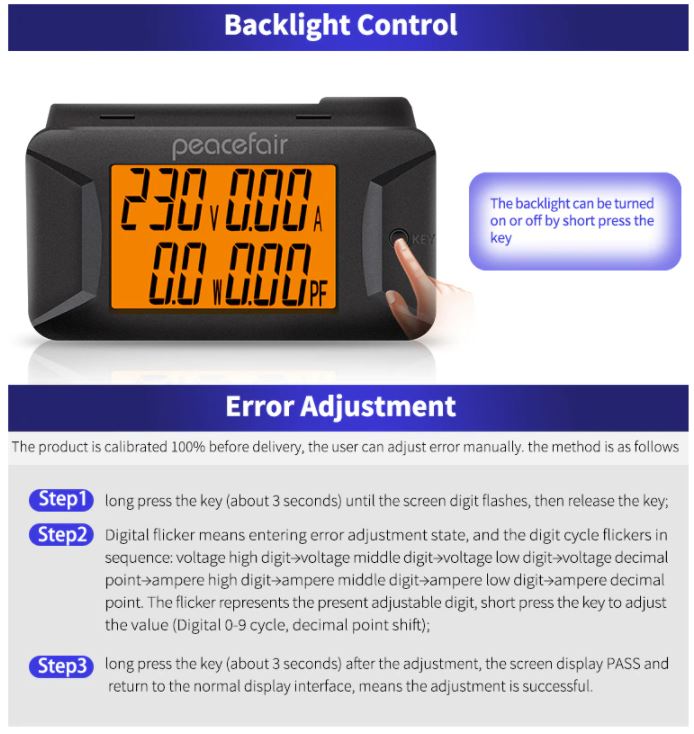

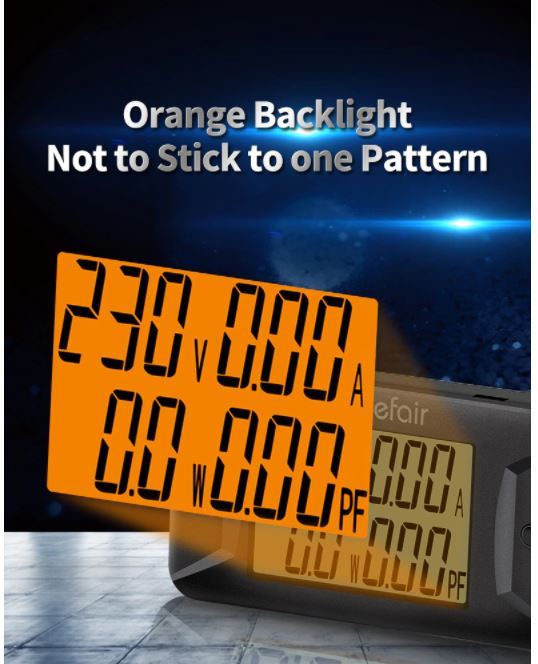

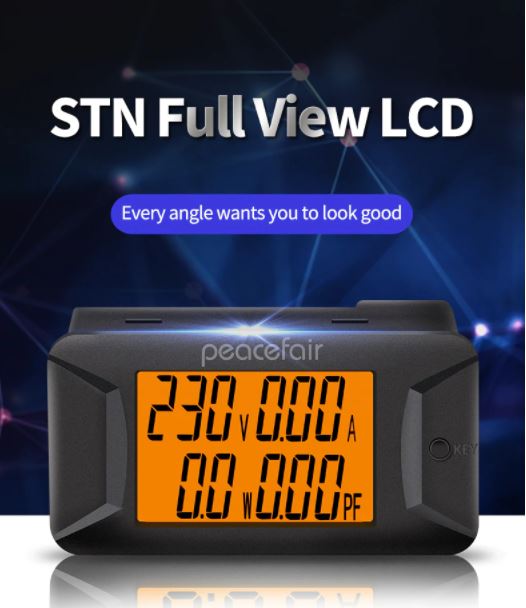

1. Backlight control

The backlight can be turned on or off by short press the key

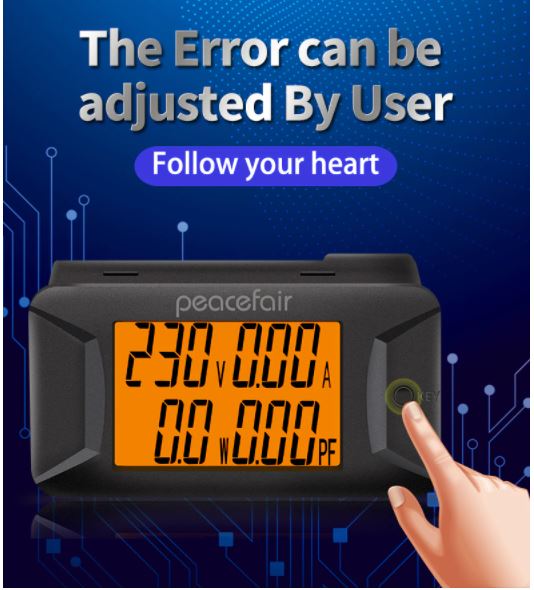

Error adjustment

The product is calibrated 100% before delivery, the user can adjust error manually. the method is as follows

Step 1: long press the key (about 3 seconds) until the screen digit flashes, then release the key;

Step 2: Digital flicker means entering error adjustment state, and the digit cycle flickers in sequence: voltage high digit→voltage middle digit→voltage low digit→voltage decimal point→ampere high digit→ampere middle digit→ampere low digit→ampere decimal point. The flicker represents the present adjustable digit, short press the key to adjust the value (Digital 0-9 cycle, decimal point shift);

Step 3: long press the key (about 3 seconds) after the adjustment, the screen display PASS and return to the normal display interface, means the adjustment is successful.

Note: error adjustment must be carried out under pure resistance (PF=1.00) load environment, otherwise the active power error after adjustment will be too large!

Package Includes: 1 Pcs PZEM-028 Factor Meter
