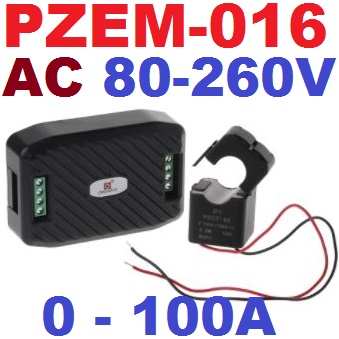

PEACEFAIR PZEM-016 80~260V 100A Multi-function Meter Voltage Current Power Factor Frequency Energy Tester Tools

Features:

• The physical layer adopts UART to RS485 communication interface, with baud rate of 9,600, 8-bit data bits, 1-bit stop bits and no verification
• This Multi-function Meter can measure voltage, current, power, power, frequency, power factor
• Over power alarm: ctive power threshold can be set, when the measured active power exceeds the threshold, it can alarm
• It can display six measurement parameters on the computer when communicate through the software
• The high test accuracy, better compatibility will make it use widely.

Specifications:

Brand: PEACEFAIR

Model: PZEM-016

Voltage
Measuring range:80~260V
Resolution: 0.1V
Measurement accuracy: 0.5%

Current
Measuring range: 0~100A
Starting measure current: 0.02A
Resolution: 0.001A
Measurement accuracy: 0.5%

ctive power
Measuring range: 0~23kW
Starting measure power: 0.4W
Resolution: 0.1W
Display format:
When the data is ＜1000W, it display one decimal, such as: 999.9W
When the data is ≥1000W, it display only integer, such as: 1000W
Measurement accuracy: 0.5%

Power factor
Measuring range: 0.00~1.00
Resolution: 0.01
Measurement accuracy: 1%

Frequency
Measuring range: 45Hz~65Hz
Resolution: 0.1Hz
Measurement accuracy: 0.5%

ctive energy
Measuring range: 0~9999.99kWh
Resolution: 1Wh
Measurement accuracy: 0.5%
Display format:
When the data is ＜10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh
When the data is ≥10kWh, the display unit is kWh, such as: 9999.99kWh
Reset energy: use software to reset.
Communication interface: RS485 interface

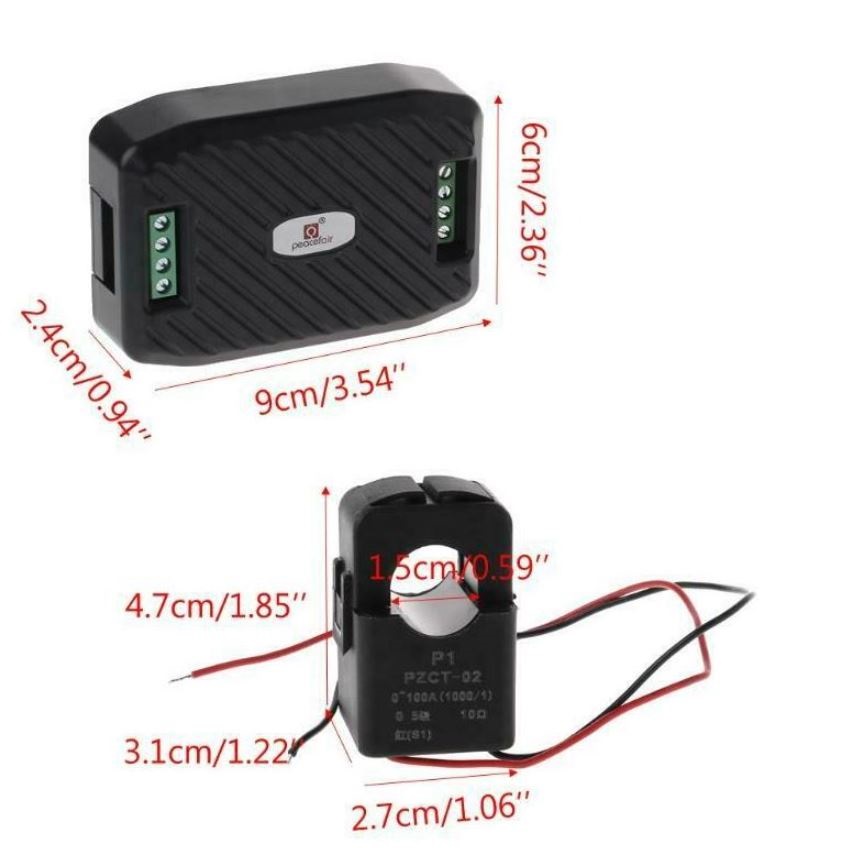

Size:90 x 60.5mm / 3.54 x 2.38in

Weight: pprox.118~154g

Package includes:

1*Meter + 1*open type CT

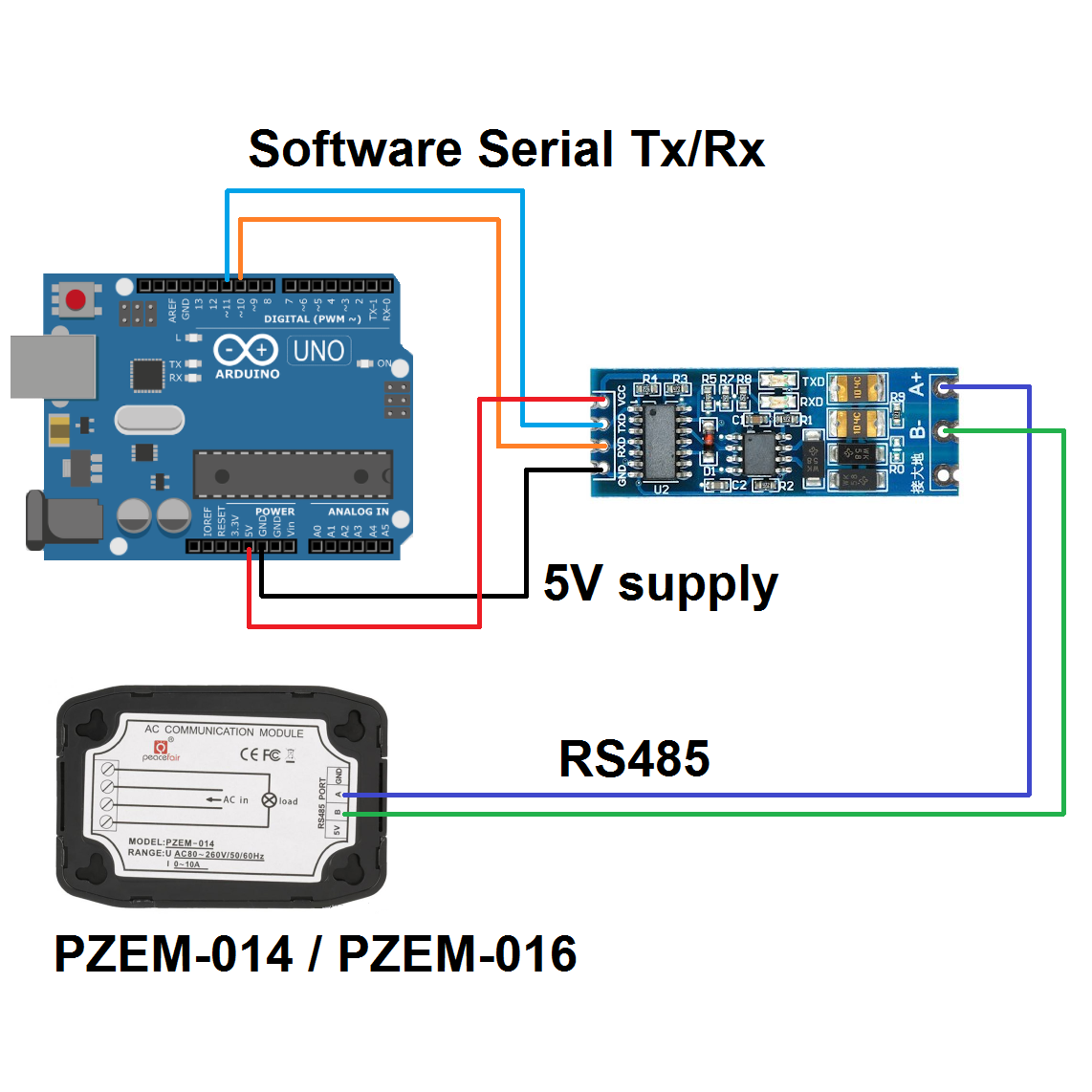

Connection Diagram

Arduino Sketch
// An Arduino Sketch for reading data from a PZEM-014 or PZEM-016
// Arduino library for communicating with ModbusMaster

#include <ModbusMaster.h>
#include <SoftwareSerial.h>

SoftwareSerial pzemSerial(10,11); //rx, tx
ModbusMaster node;
static uint8_t pzemSlaveAddr = 0x01;
#define LEDPIN 13

void setup() {
 pzemSerial.begin(9600);
 Serial.begin(9600);
 //resetEnergy(pzemSlaveAddr);
 node.begin(pzemSlaveAddr, pzemSerial);
 pinMode(13, OUTPUT);
 digitalWrite(LEDPIN,0);
}

/*
RegAddr Description                 Resolution
0x0000  Voltage value               1LSB correspond to 0.1V
0x0001  Current value low 16 bits   1LSB correspond to 0.001A
0x0002  Current value high 16 bits
0x0003  Power value low 16 bits     1LSB correspond to 0.1W
0x0004  Power value high 16 bits
0x0005  Energy value low 16 bits    1LSB correspond to 1Wh
0x0006  Energy value high 16 bits
0x0007  Frequency value             1LSB correspond to 0.1Hz
0x0008  Power factor value          1LSB correspond to 0.01
0x0009  Alarm status  0xFFFF is alarm，0x0000is not alarm
*/

void loop() {
 uint8_t result;
 digitalWrite(LEDPIN,1);
 result = node.readInputRegisters(0x0000, 9); //read the 9 registers of the PZEM-014 / 016
 digitalWrite(LEDPIN,0);
 if (result == node.ku8MBSuccess)
 {
   float voltage = node.getResponseBuffer(0x0000) / 10.0;

   uint32_t tempdouble = 0x00000000;

   float power;
   tempdouble |= node.getResponseBuffer(0x0003);       //LowByte
   tempdouble |= node.getResponseBuffer(0x0004) << 8;  //highByte
   power = tempdouble / 10.0;


   float current;
   tempdouble = node.getResponseBuffer(0x0001);       //LowByte
   tempdouble |= node.getResponseBuffer(0x0002) << 8;  //highByte
   current = tempdouble / 1000.0;

   uint16_t energy;
   tempdouble = node.getResponseBuffer(0x0005);       //LowByte
   tempdouble |= node.getResponseBuffer(0x0006) << 8;  //highByte
   energy = tempdouble;

   Serial.print(voltage);
   Serial.print("V   ");

   Serial.print(current);
   Serial.print("A   ");

   Serial.print(power);
   Serial.print("W  ");

   Serial.print(node.getResponseBuffer(0x0008));
   Serial.print("pf   ");

   Serial.print(energy);
   Serial.print("Wh  ");
   Serial.println();

 } else {
   Serial.println("Failed to read modbus");
 }
 delay(2000);
}

void resetEnergy(uint8_t slaveAddr){
 //The command to reset the slave's energy is (total 4 bytes):
 //Slave address + 0x42 + CRC check high byte + CRC check low byte.
 uint16_t u16CRC = 0xFFFF;
 static uint8_t resetCommand = 0x42;
 u16CRC = crc16_update(u16CRC, slaveAddr);
 u16CRC = crc16_update(u16CRC, resetCommand);
 Serial.println("Resetting Energy");
 pzemSerial.write(slaveAddr);
 pzemSerial.write(resetCommand);
 pzemSerial.write(lowByte(u16CRC));
 pzemSerial.write(highByte(u16CRC));
 delay(1000);
}

void changeAddress(uint8_t OldslaveAddr, uint8_t NewslaveAddr)
{
 static uint8_t SlaveParameter = 0x06;
 static uint16_t registerAddress = 0x0002; // Register address to be changed
 uint16_t u16CRC = 0xFFFF;
 u16CRC = crc16_update(u16CRC, OldslaveAddr);
 u16CRC = crc16_update(u16CRC, SlaveParameter);
 u16CRC = crc16_update(u16CRC, highByte(registerAddress));
 u16CRC = crc16_update(u16CRC, lowByte(registerAddress));
 u16CRC = crc16_update(u16CRC, highByte(NewslaveAddr));
 u16CRC = crc16_update(u16CRC, lowByte(NewslaveAddr));

 Serial.println("Changing Slave Address");

 pzemSerial.write(OldslaveAddr);
 pzemSerial.write(SlaveParameter);
 pzemSerial.write(highByte(registerAddress));
 pzemSerial.write(lowByte(registerAddress));
 pzemSerial.write(highByte(NewslaveAddr));
 pzemSerial.write(lowByte(NewslaveAddr));
 pzemSerial.write(lowByte(u16CRC));
 pzemSerial.write(highByte(u16CRC));
 delay(1000);
}
