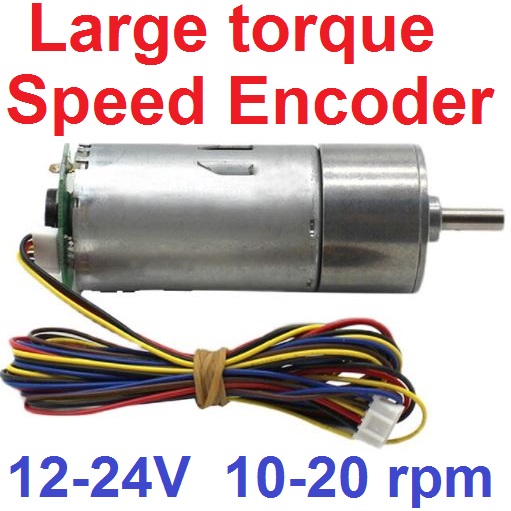

มอเตอร์เกียร์ DC 12V 24V แกน 6mm. 555 Straight Geared Motor Speed Encoder Tachometer Plate High Speed Large torque Motor Electric Power Tool 6mm Shaft มอเตอร์ทดรอบ วัดความเร็วรอบได้

This motor with encoder is especially suitable for making smart cars, balanced two-wheeled vehicles, tracking cars, self-control education products, etc.

   Metal gear, with high torque and stable performance. Those who need it, place an order as soon as possible!

Note: The motor wire is 5 wires, and those that use encoders can be connected and used; if you do not use encoders, directly connect the red wire (positive) and the black wire (negative) of the 5 wires, and the motor can rotate normally. If the two wires are connected in reverse, the motor can be reversed.

Motor diameter: 37mm
Motor length: 85mm
Step diameter: 11.7mm
Step height: 5mm
Motor shaft diameter: 6mmD type shaft (cutting edge 0.5mm, cutting edge length 14mm)
Outgoing shaft length: 16mm (there is a 1.5mm through hole on the shaft)
Wire length: 1 meter (5 lines)
Plug connector size: 4.2*10.5mm
Rated voltage: 12-24V
Speed parameters: when connected to 12V, 10 rpm; when 24V, 20 rpm;
Overall weight: about 299 grams
