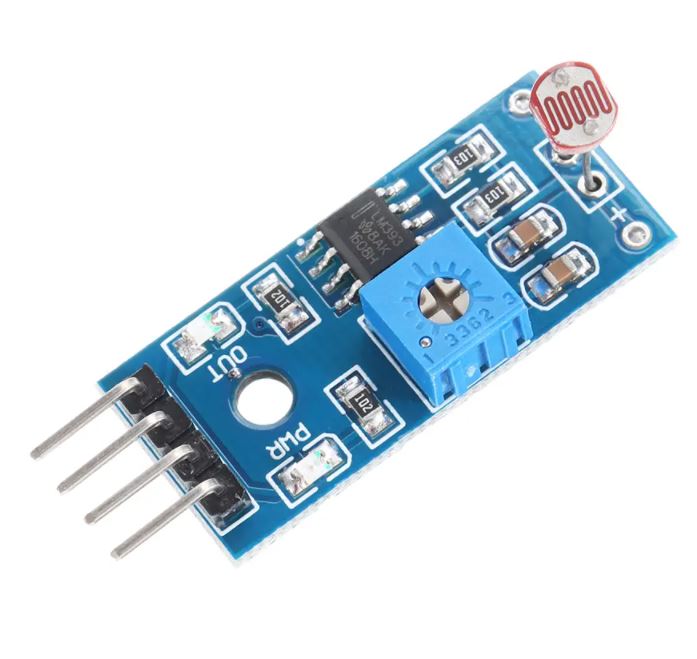

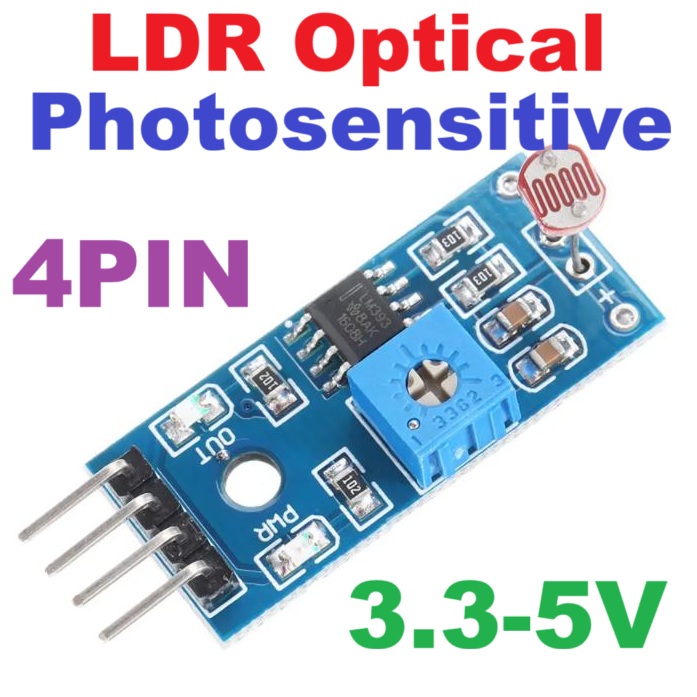

เซ็นเซอร์แสง 4pin LDR Optical Sensitive Resistance Light Detection Photosensitive Sensor Module

Usage:

Light intensity detection, light intensity sensor, intelligent car search module

Module Features:

1, The use of sensitive photosensitive resistance sensor
2. Comparator output, clean signal, good waveform, strong driving ability, over 15mA.
3, With adjustable potentiometer adjustable light intensity
4, Working voltage 3.3V-5V
5, Output form: DO digital switching output (0 and 1) and AO analog voltage output
6, With a fixed bolt hole, easy to install
7, Small board PCB size: 3.2cm x 1.4cm
8, Using a wide voltage LM393 comparator

Module Instructions:

1. The photo-resistor module is most sensitive to ambient light and is generally used to detect the brightness of ambient light, triggering a microcontroller or relay module, etc.
2. When the ambient light brightness of the module does not reach the set threshold, the DO output is high. When the ambient light brightness exceeds the set threshold, the DO output is low;
3, DO output can be directly connected with the microcontroller, through the microcontroller to detect high and low, thus detecting the ambient light brightness changes;
4, DO output can directly drive our shop relay module, which can form a light control switch.
5, small board analog output AO can be connected with the AD module, through the AD conversion, you can obtain a more accurate value of the ambient light intensity;
package include

1*Photoresistor sensor module
