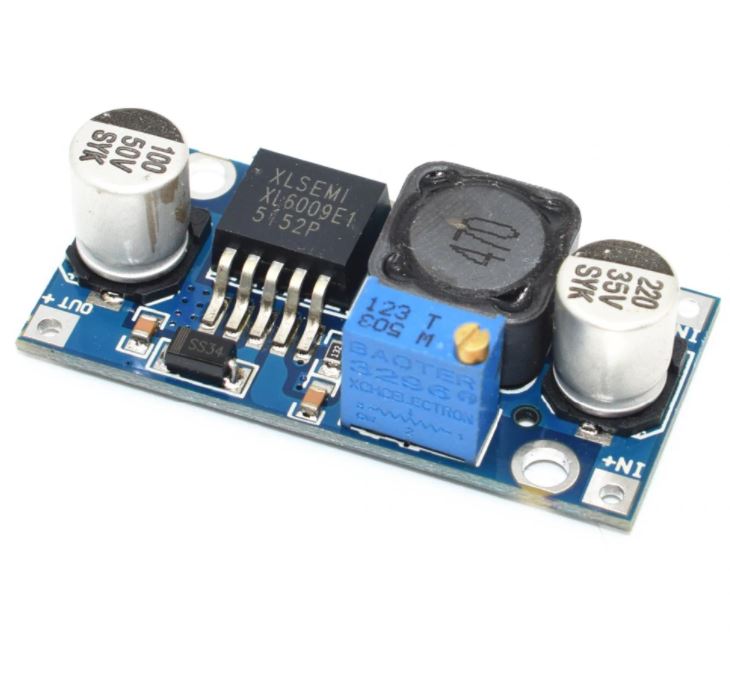

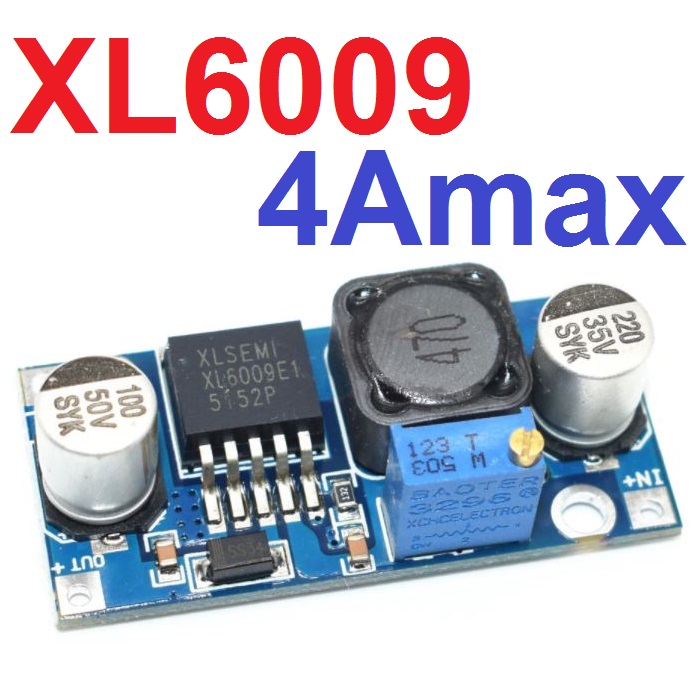

XL6009 DC-DC step up Booster 4A Power Supply Module Output is Adjustable

Features:

• XTW6009 is a high-performance 400KHz 4A switch currency step-up (BOOST) module. This module XL6009 is coming with the 3rd generation high-frequency switch technology as the core chip, The performance is much higher than LM2577.

• Wide input voltage: 3V~32V; Optimum operating voltage range: 5~32V; Wide output voltage: 5V~40V.

• With 4A high efficiency MOSFET switches, so the efficiency can be up to 94%, (LM2577current is 3A only).

• With ultra high switch frequency 400KHz , even if small capacity filtering capacitors can achieve very good results, ripple is smaller (Compare to LM2577 frequency 50KHz).

Specification:

      Model: DSN6009 boost module
      Module Properties: Non-isolated boost (BOOST)
      Rectification: Non-Synchronous Rectification
      Input Range: 3V ~ 32V
      Output Range: 5V ~ 35V
      Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
      Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
      Switching frequency: 400KHz
      Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
      Load Regulation: +/-0.5%
      Voltage Regulation: +/-0.5%
      Operating Temperature: -40 degree to +85 degree
      Body Size: 43 x 20 x 12mm/1.7" x 0.8" x 0.47"(L*W*T)

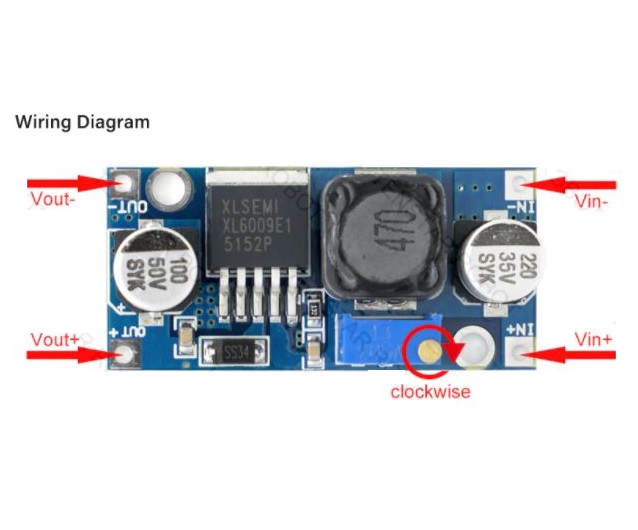

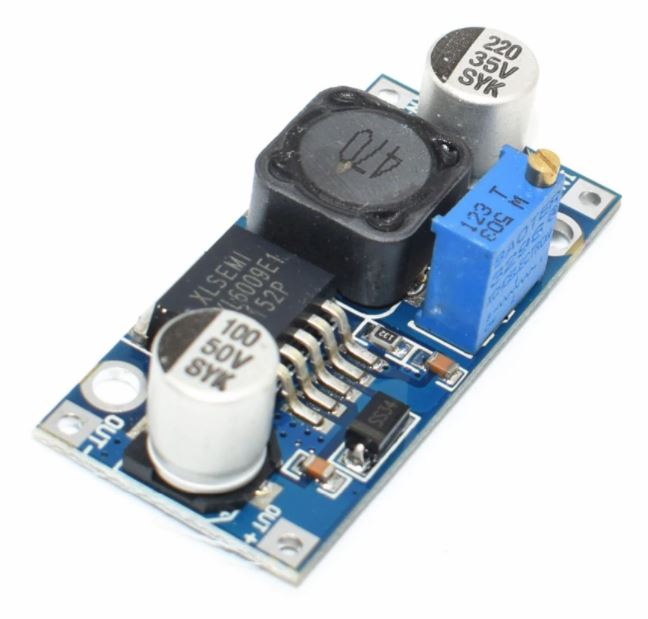

      Input way: IN+, IN-;
      Output way: OUT+, OUT-
